神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (132-01-1) - ARM REST Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
565 次

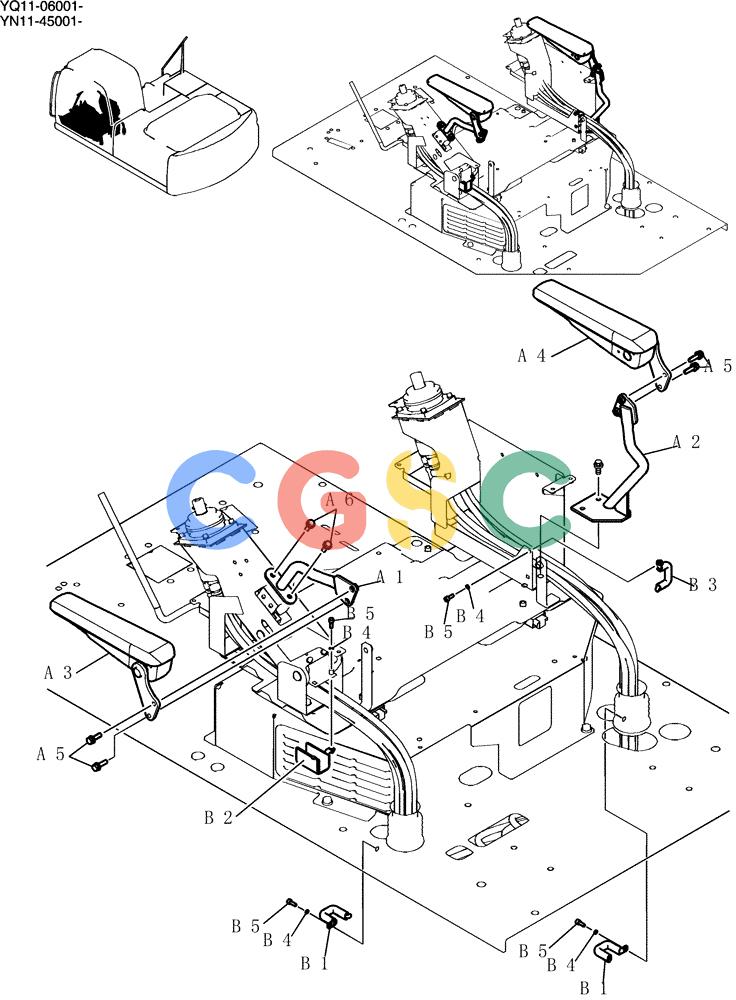

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN25M01180F1 | [1] | ARMREST | KOBArm |
| A1. | YN25M01173P2 | [1] | BRACKET | KOB |
| A2. | YN25M01177P2 | [1] | BRACKET | KOB |
| A3. | YN25M01179P1 | [1] | ARM | KOBRest |
| A4. | YN25M01181P1 | [1] | ARM | KOBRest |
| A5. | ZM27C08025 | [4] | BOLT | KOBSems |
| A6. | ZM27C08020 | [2] | BOLT | KOBSems-bolt |
| . . | YN12P01163F1 | [1] | CLAMP | KOB |
| B1. | YN12P01164F1 | [2] | BRACKET | SMClamp Assy |
| B2. | YN12P01170F1 | [1] | BRACKET | SMClamp Assy |
| B3. | YN12P01173F1 | [1] | BRACKET | SMClamp Assy |
| B4. | ZW26K06000 | [4] | LOCK WASHER | KOB |
| B5. | ZS28C06020 | [4] | SCREW,Hex Socket Head, M6 x 20mm | KOBCap |
