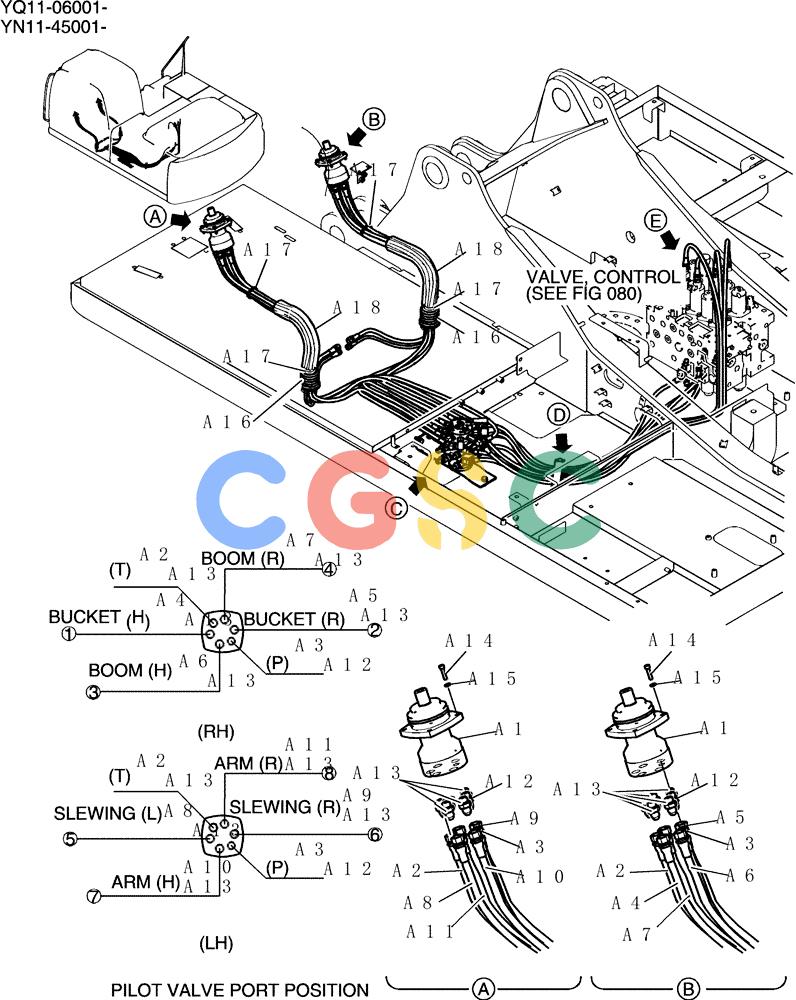

| . . | YN68H00131F1 | [1] | Control Lines, Remote | |
| A1. | YN30V00111F1 | [2] | HYDRAULIC VALVE | SMAssy, Pilot |
| A2. | 2420R537D135 | [2] | FLEXIBLE HOSE,9.60mm ID x 1350mm L | KOB Superseded by part number: HX21E06135DX |
| A3. | 2420R349D135 | [2] | HOSE,6.35mm ID x 1350mm L | KOB, Serial Range: YQ11-06001-YQ11-06340 |
| . . | LS68H01016D1 | [2] | HOSE,6.3mm ID x 1350mm L | KOB, Start Serial: YQ11-06341 |
| A4. | HX23L06190CR | [1] | HOSE | KOB |
| A5. | HX23L06190CB | [1] | HYDRAULIC HOSE,9.52 mm ID x 1900.00 mm | KOB |
| A6. | YN68H01105D3 | [1] | HOSE | KOB |
| A7. | HX23L06195CH | [1] | HYDRAULIC HOSE,1950.00 mm | KOB |
| A8. | HX23L06170CH | [1] | HOSE | KOB |
| A9. | HX23L06195CR | [1] | HOSE | KOB |
| A10. | HX23L06160CB | [1] | HOSE,9.53mm ID x 1600mm L | KOB |
| A11. | HX23L06165CG | [1] | HOSE | KOB |
| A12. | HH25X04004G2 | [2] | HYD CONNECTOR | KOB |
| A13. | ZH22X06000 | [10] | HYD CONNECTOR | KOB |
| A14. | ZS28C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBCap |
| A15. | ZW16P06000 | [8] | WASHER | KOB |
| A16. | PH03M01250P1 | [2] | BOOT | KOB |
| A17. | PY01P01043D8 | [4] | CABLE TIE,102mm L | KOB |
| A18. | YN68H01106P1 | [2] | COVER | KOB |
| . . | YN64H00212F1 | [1] | Control Lines, Multi | |
| 0. | YN30V00117F1 | [1] | VALVE | KOBAssy, Selector Superseded by part number: YN30V00117F2 |
| . . | YN64H00214F1 | [1] | Control Lines, Multi | |
| B2. | 2420R537D220 | [2] | HOSE,9.60mm ID x 2200mm L | KOB Superseded by part number: 77254115, HX21E06220DX |
| B3. | LC64H01113P1 | [1] | BRACKET | KOB |
| B4. | YX52S00013P1 | [6] | SENSOR | SMPress (L.P), Serial Range: YQ11-06001-YQ11-06105 Superseded by part number: LC52S00019P1 |
| . . | LC52S00019P1 | [6] | SENSOR | SMPress (L.P) Incls. O-Ring ZD12P01100, Start Serial: YQ11-06106 |
| B4-2. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| B5. | ZE72X04000 | [2] | PLUG | KOB |
| B7. | YN64H01289P1 | [1] | CLAMP | KOBSupport |
| B8. | ZM73C10020 | [2] | BOLT,M10x20mm - Course Thread | KOBSems |
| B9. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBSems |
| B10. | 2444Z2337 | [5] | HYD CONNECTOR | KOB |
| B11. | 2444Z2525 | [1] | HYD CONNECTOR | KOB Superseded by part number: 72217408 |
| B12. | 2444Z2338 | [6] | 90 ELBOW | KOB |
| B13. | ZM73C10030 | [3] | BOLT,M10x30mm - Course Thread | KOBSems |
| B14. | 2420R537D120 | [1] | HOSE ASSY.,9.60mm ID x 1200mm L | KOB Superseded by part number: HX21E06120DX |
| B15. | 2420R537D135 | [1] | FLEXIBLE HOSE,9.60mm ID x 1350mm L | KOB Superseded by part number: HX21E06135DX |
| B16. | 2420R537D210 | [1] | HOSE,9.53mm ID x 2100mm L | KOB |
| B17. | ZH42X06000 | [2] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB |
| B18. | 2444T2524 | [1] | HYD CONNECTOR | KOB |
| B19. | 2444Z2516 | [2] | HYD CONNECTOR | KOB |
| B20. | 2444Z3155 | [2] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB Superseded by part number: YT42H01128P1 |
| B21. | 2444T3288 | [2] | 45 ELBOW | KOB |
| . . | YN64H00215F1 | [1] | Control, Multi | |
| C1. | 2420R537D230 | [1] | FLEXIBLE HOSE,9.60mm ID x 2300mm L | KOB |
| C2. | 2420R537D125 | [1] | HOSE,9.53mm ID x 1250mm L | KOB |
| C3. | 2444Z2338 | [1] | 90 ELBOW | KOB |
| C4. | 2420R537D140 | [1] | HOSE ASSY.,9.60mm ID x 1400mm L | KOB |
