神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (138-01-1) - LEVER ASSY, PROPEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
273 次

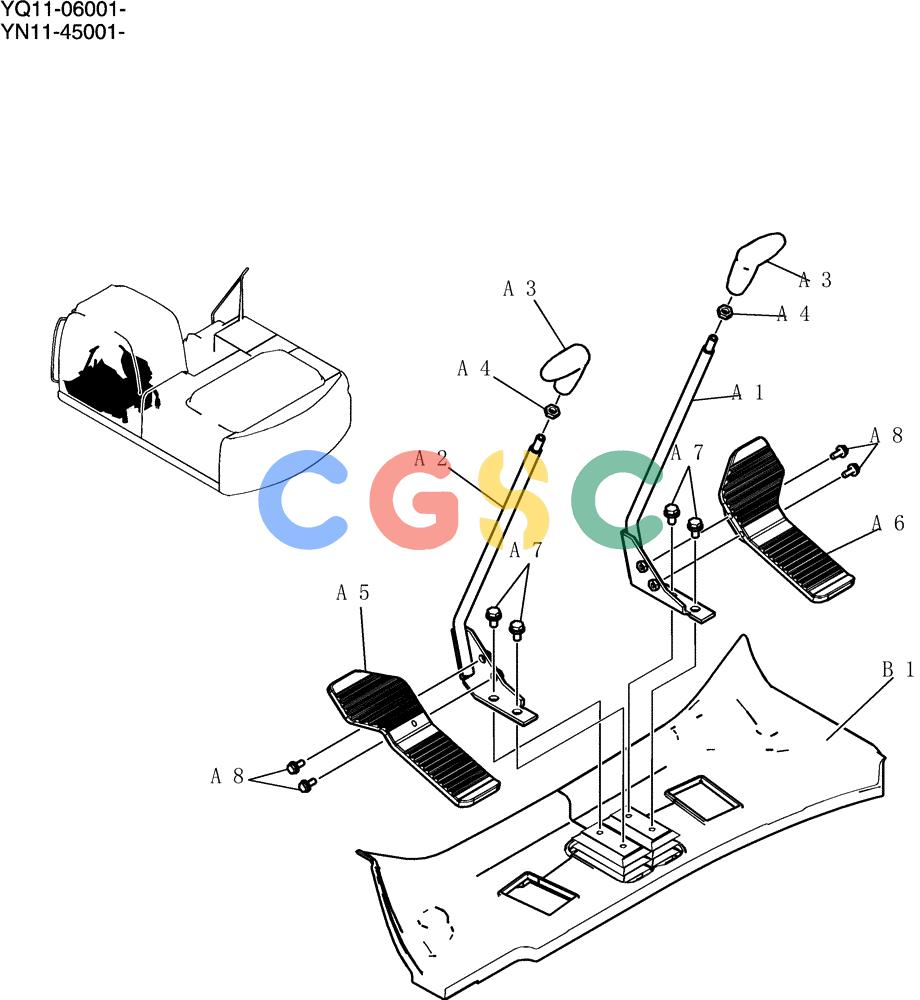

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN50M00013F1 | [1] | CONTROL LEVER | KOBPropel |
| A1. | YN50M01045P1 | [1] | LEVER | SMLever |
| A2. | YN50M01046P1 | [1] | LEVER | SM |
| A3. | YN03M01040P1 | [2] | GRIP | KOB |
| A4. | 2420Z1232 | [2] | NUT | KOB |
| A5. | YN55M01011P1 | [1] | PEDAL | SM |
| A6. | YN55M01010P1 | [1] | PEDAL | SM |
| A7. | ZM73C10020 | [4] | BOLT,M10x20mm - Course Thread | KOBSems |
| A8. | ZM22C08025 | [4] | BOLT | KOBSems |
| . . | YN55M00003F1 | [1] | FLOOR MAT | KOBPedal Assy Superseded by part number: YN26M00064P1 |
| B1. | YN26M00064P1 | [1] | FOOT BOARD | SMMat |
