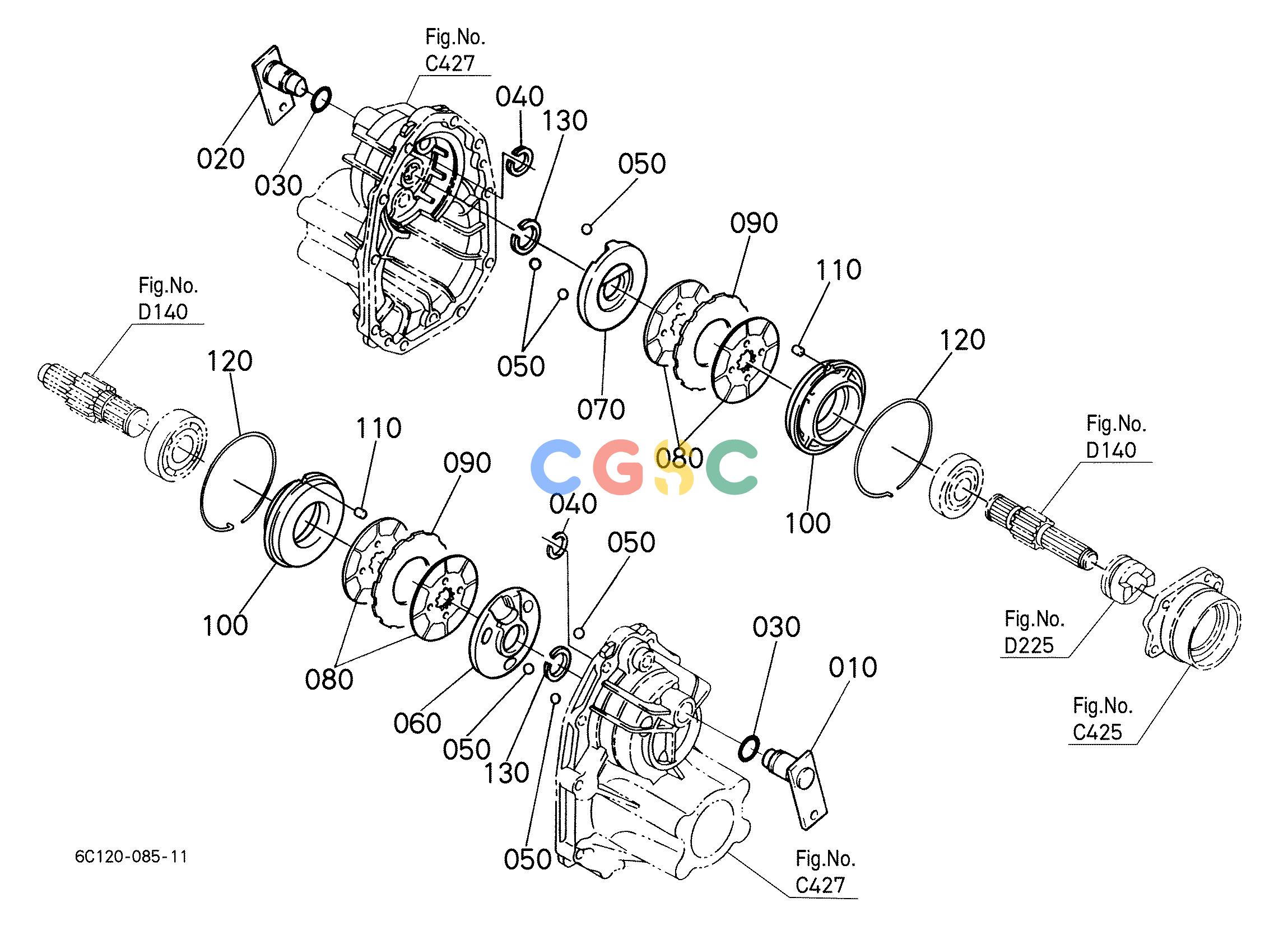

久保田零件查询E00101 BRAKE BRAKEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04022360
|
[1] |
LEVER CAM LH
|
0.7040(lbs); 0.320
|
| 020. |
6C04022460
|
[1] |
LEVER CAM RH
|
0.7260(lbs); 0.330
|
| 030. |
0481100210
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481600210
|
[2] |
O RING
|
0.0088(lbs); 0.004
|
| 040. |
6706114370
|
[2] |
CIR-CLIP
|
0.0044(lbs); 0.002
|
| 050. |
0771500805
|
[6] |
BALL
|
0.0352(lbs); 0.016
|
| 060. |
6C09022320
|
[1] |
ACTUATOR LH
|
1.3860(lbs); 0.630
|
| 070. |
6C09022420
|
[1] |
ACTUATOR RH
|
1.3860(lbs); 0.630
|
| 080. |
6C14022350
|
[4] |
DISK BRAKE
|
0.3960(lbs); 0.180
|
| 090. |
6C14022340
|
[2] |
PLATE FRICTION
|
0.2640(lbs); 0.120
|
| 100. |
6C11022380
|
[2] |
HOLDER BEARING
|
2.2440(lbs); 1.020
|
| 110. |
6C04022440
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
| 120. |
6A32022390
|
[2] |
CIR-CLIP INTERNAL
|
0.0836(lbs); 0.038
|
| 130. |
7043551590
|
[2] |
CIR-CLIP
|
0.0044(lbs); 0.002
|
