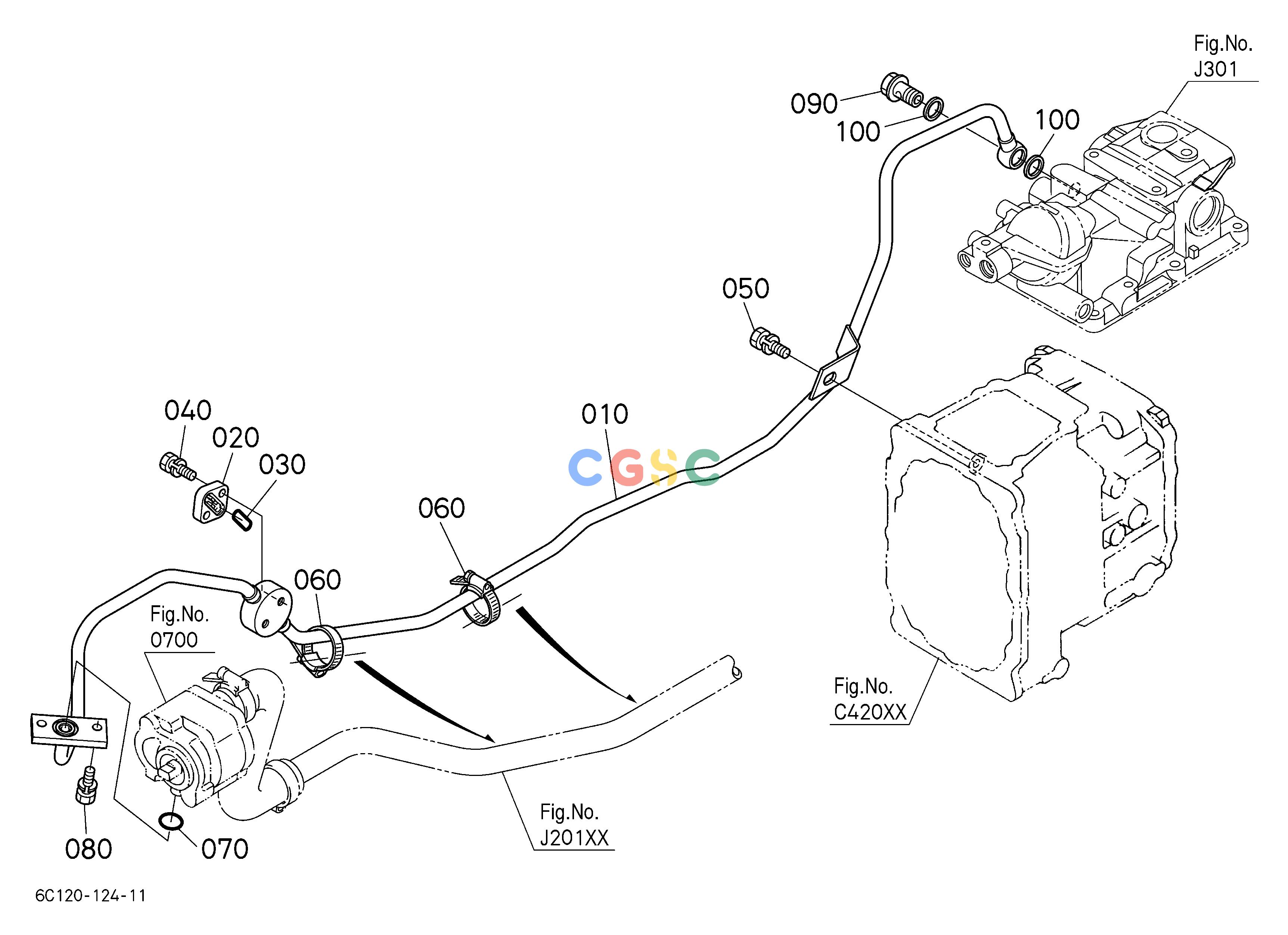

久保田零件查询J21001 HYDRAULIC OIL LINE(DELIVERY) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C11039210
|
[1] |
PIPE DELIVERY
|
2.0240(lbs); 0.920
|
| 010. |
6C11039213
|
[1] |
PIPE DELIVERY
|
2.0240(lbs); 0.920
|
| 020. |
6C04036620
|
[1] |
CAP
|
0.0484(lbs); 0.022
|
| 030. |
3741036630
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0112350830
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 050. |
0112551022
|
[1] |
BOLT
|
0.5500(lbs); 0.250
|
| 050. |
0112550818
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 060. |
6795536230
|
[2] |
CLAMP
|
0.0506(lbs); 0.023
|
| 070. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481700200
|
[1] |
O RING
|
0.0242(lbs); 0.011
|
| 080. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 090. |
6A32039290
|
[1] |
BOLT JOINT
|
0.1320(lbs); 0.060
|
| 090. |
6A32039292
|
[1] |
BOLT JOINT
|
0.1320(lbs); 0.060
|
| 100. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
