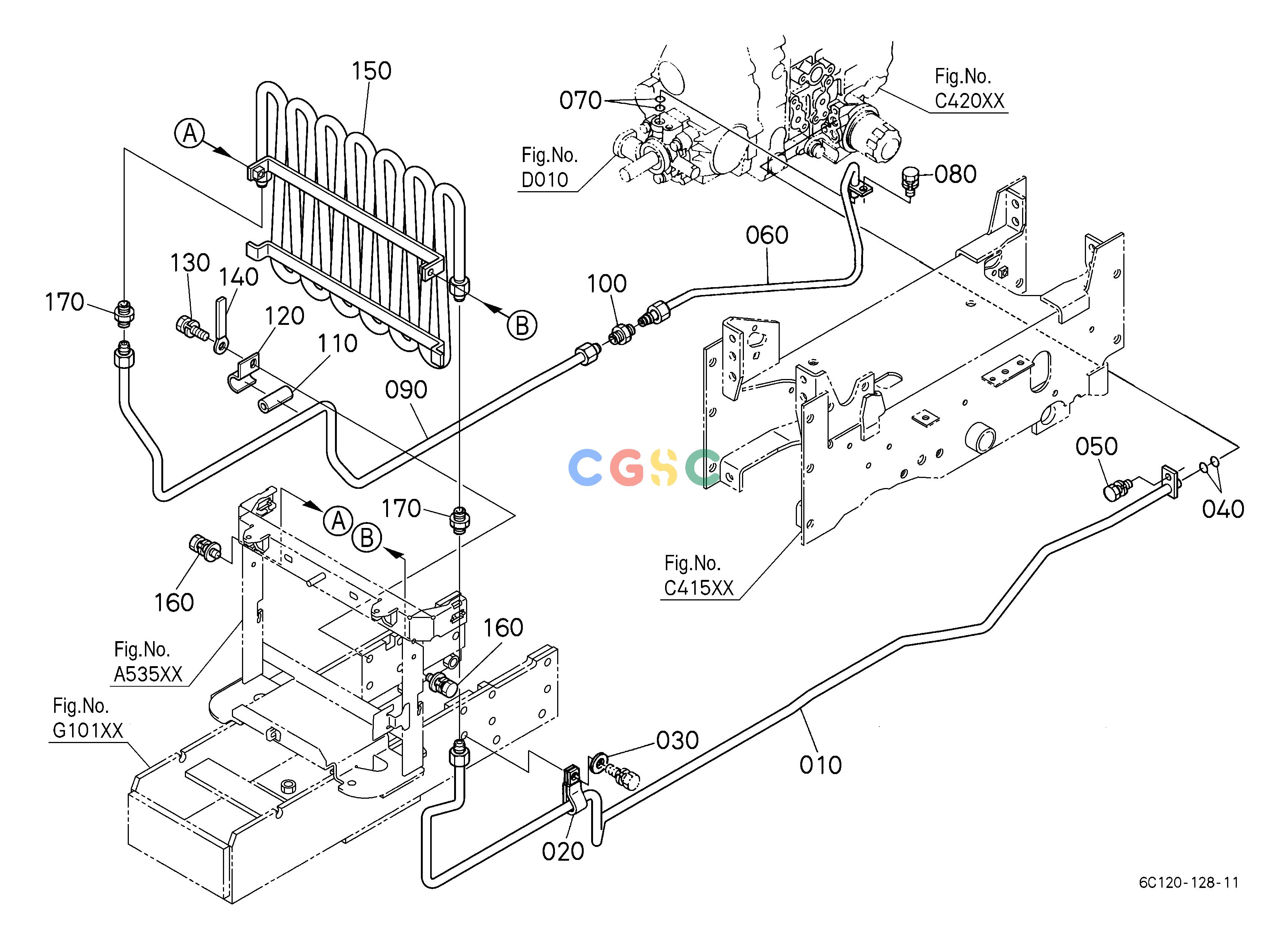

久保田零件查询J24001 HYDRAULIC OIL LINE(OIL COOLER) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C11039320
|
[1] |
PIPE RETURN
|
1.1880(lbs); 0.540
|
| 020. |
6C05039410
|
[1] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 030. |
0401360100
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 040. |
0481100120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481600120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 060. |
6C15039350
|
[1] |
PIPE
|
0.4400(lbs); 0.200
|
| 070. |
0481100120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481600120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 090. |
6C11039360
|
[1] |
PIPE
|
0.8800(lbs); 0.400
|
| 100. |
0601351203
|
[1] |
JOINT PIPE
|
0.0770(lbs); 0.035
|
| 110. |
6C14039250
|
[1] |
CUSHION
|
0.0308(lbs); 0.014
|
| 120. |
6C05039410
|
[1] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 120. |
6C14039240
|
[1] |
CLAMP
|
0.1430(lbs); 0.065
|
| 130. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 130. |
0113551040
|
[1] |
BOLT
|
0.0748(lbs); 0.034
|
| 140. |
3715034460
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 150. |
6C13058710
|
[1] |
PIPE COOLER
|
3.8720(lbs); 1.760
|
| 160. |
0112550816
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 160. |
0112550818
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 170. |
0601351203
|
[2] |
JOINT PIPE
|
0.0770(lbs); 0.035
|
