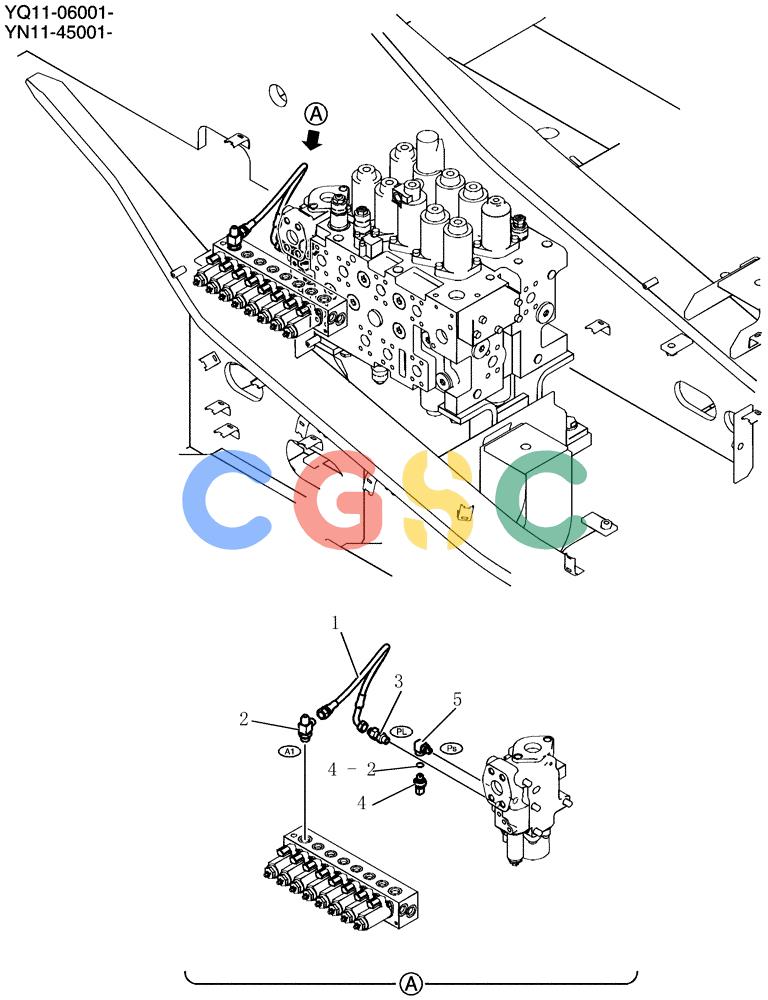

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (150-60-1-01) - CONTROL LINES, VALVE (NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
462 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN64H00218F1 | [1] | Control, Valve | |
| . . | YN64H00219F1 | [1] | Control, Valve (See Fig No150-01) | |
| . . | YN64H00221F1 | [1] | CONTROL VALVE | KOBLines |
| 1. | 2444R963D7 | [1] | HOSE,6.35mm ID x 500mm L | KOB |
| 2. | 2444Z2892 | [1] | TEE | KOB |
| 3. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB |
| 4. | YX52S00013P1 | [1] | SENSOR | SMPress (L.P), Serial Range: YQ11-06001-YQ11-06105 Superseded by part number: LC52S00019P1 |
| . . | LC52S00019P1 | [1] | SENSOR | SMPress (L.P) Incls. O-Ring ZD12P01100, Start Serial: YQ11-06106 |
| 4-2. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 5. | 2444Z2894 | [1] | 90 ELBOW | KOBElbow |
