神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (170-01-1) - PLATE INSTAL, FLOOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
573 次

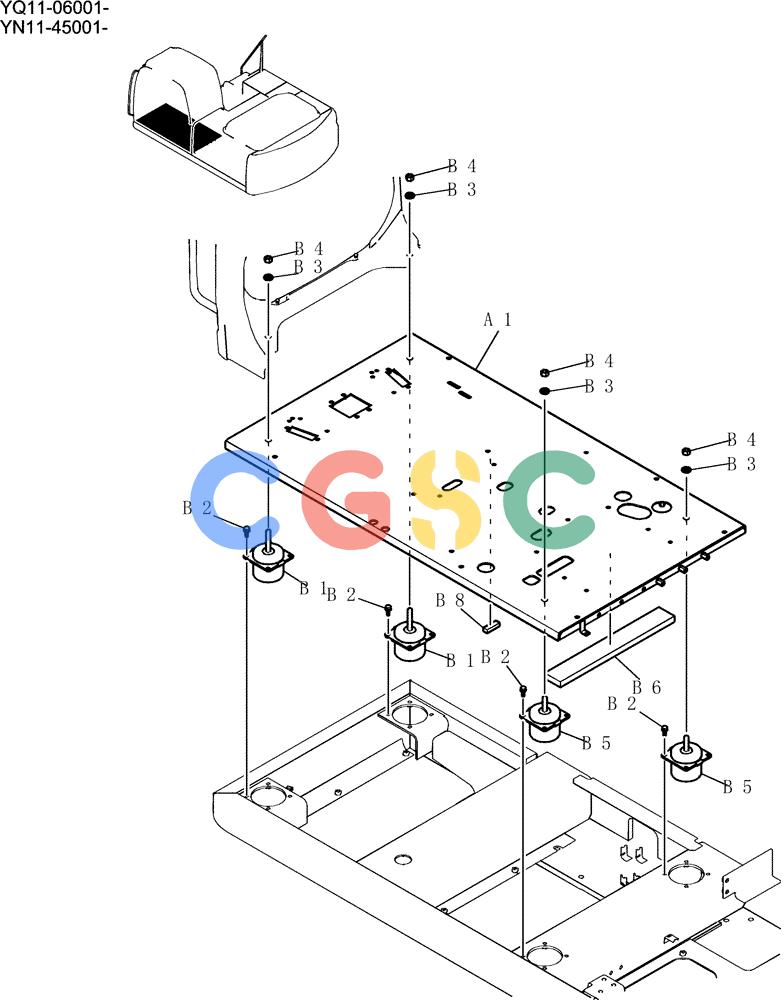

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN03M00133F1 | [1] | Instal, Floor | |
| A1. | YN03M00131P1 | [1] | PLATE | KOBFloor |
| . . | YN03M00132F1 | [1] | Instal, Floor | |
| B1. | YN03M01573P1 | [2] | SILENTBLOC,110mm OD x 201mm L | KOBMount, Rubber |
| B2. | ZM22C10035 | [16] | BOLT | KOBSems-bolt |
| B3. | ZW16H16000 | [4] | WASHER | KOB |
| B4. | ZN18C16013 | [4] | NUT | KOB |
| B5. | YN03M01695P1 | [2] | SILENTBLOC,110mm OD x 171mm L | KOBMount, Rubber |
| B6. | YN03M01671P1 | [1] | FOAM INSULATION | KOB |
| B8. | YN03M01963P1 | [1] | RUBBER BAND | KOB |
