神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (246-01-1) - GUARD INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
487 次

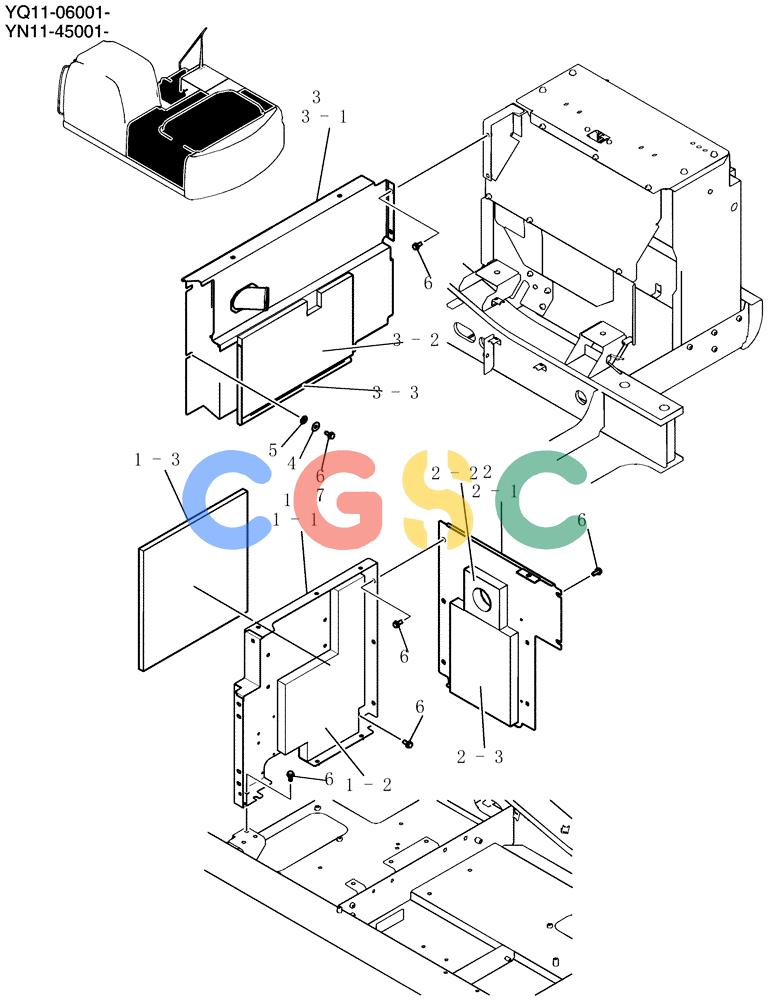

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN21C00096F1 | [1] | Instal | |
| 1. | YN21C02976F1 | [1] | GUARD | KOBAssy |
| 1-1. | YN21C02977P2 | [1] | GUARD | KOB, Serial Range: YQ11-06001-YQ11-06132 Superseded by part number: YN21C02977P3 |
| . . | YN21C02977P3 | [1] | GUARD | KOB, Start Serial: YQ11-06133 |
| 1-2. | YN21C02979P2 | [1] | FOAM INSULATION | KOB |
| 1-3. | YN21C03244P2 | [1] | FOAM INSULATION | KOB |
| 2. | YN21C02937F1 | [1] | GUARD | KOBAssy |
| 2-1. | YN21C02938P1 | [1] | GUARD | KOB |
| 2-2. | YN21C02898P1 | [1] | FOAM INSULATION | KOB |
| 2-3. | YN21C02973P1 | [1] | FOAM INSULATION | KOB |
| 3. | YN21C03033F1 | [1] | GUARD | KOBAssy |
| 3-1. | YN21C03034P1 | [1] | GUARD | KOB |
| 3-2. | YN21C02584P2 | [1] | FOAM INSULATION | KOB |
| 3-3. | YN21C01688D1 | [1] | WEATHERSEAL STRIP | KOBStrip, Weather |
| 4. | YN21C02138P1 | [2] | WASHER | KOB |
| 5. | YN21C02147P1 | [2] | WASHER | KOB |
| 6. | ZM73C12025 | [14] | BOLT,M12x25mm - Course Thread | KOBSems, Serial Range: YQ11-06001-YQ11-06128 |
| . . | ZM73C12025 | [12] | BOLT,M12x25mm - Course Thread | KOBSems, Start Serial: YQ11-06129 |
| 7. | ZM73C12030 | [2] | BOLT,M12x30mm - Course Thread | KOBSems, Start Serial: YQ11-06129 |
