神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (244-01-1) - GUARD INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
665 次

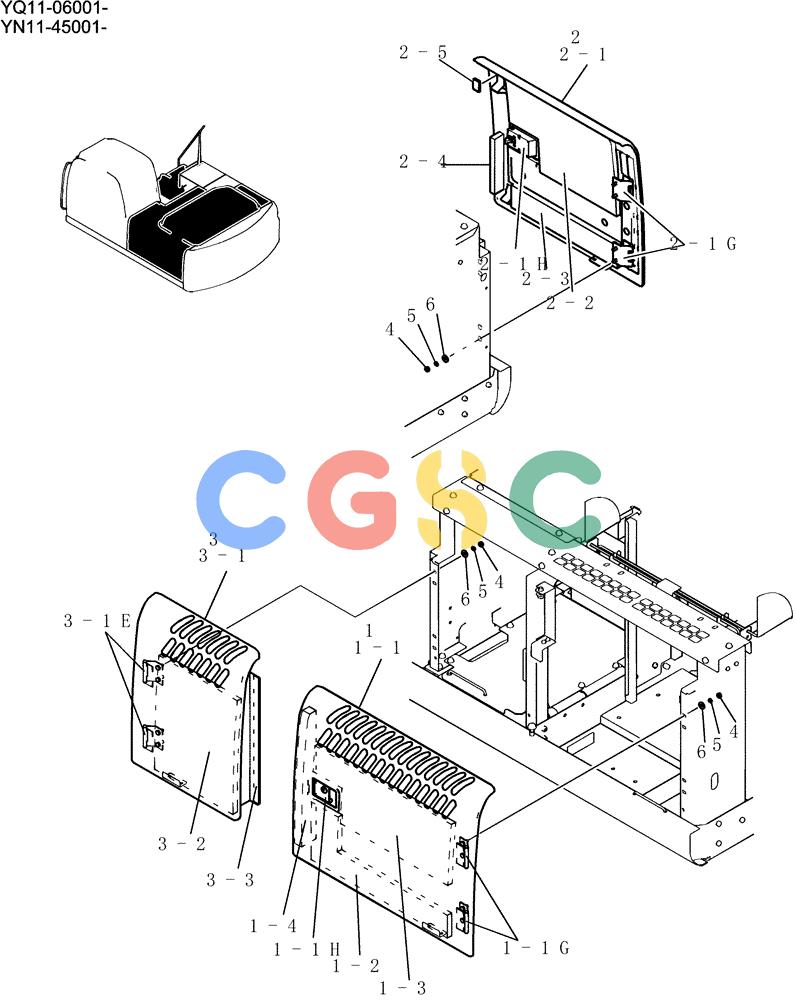

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN21C00095F1 | [1] | Instal | |
| 1. | YN21C03013F1 | [1] | PANEL | KOBAssy |
| 1-1. | YN21C03014P2 | [1] | PANEL | KOB Superseded by part number: YN21C03014P3 |
| 1-1G. | YN21C02347P1 | [2] | HINGE | KOB |
| 1-1H. | YN21C02202P1 | [1] | LOCK | SM |
| 1-2. | YN21C03345P2 | [1] | FOAM INSULATION | KOB |
| 1-3. | YN21C03032P1 | [1] | FOAM INSULATION | KOB |
| 1-4. | YN21C02460P1 | [1] | GASKET | SMRubber |
| 2. | YN21C03015F1 | [1] | PANEL | KOBAssy |
| 2-1. | YN21C03016P2 | [1] | PANEL | KOB Superseded by part number: YN21C03016P3 |
| 2-1G. | YN21C02347P1 | [2] | HINGE | KOB |
| 2-1H. | YN21C02202P1 | [1] | LOCK | SM |
| 2-2. | YN21C03028P1 | [1] | FOAM INSULATION | KOB |
| 2-3. | YN21C03346P2 | [1] | FOAM INSULATION | KOB |
| 2-4. | YN21C02048P1 | [1] | RUBBER | KOB |
| 2-5. | YN21C01814D1 | [1] | RUBBER | KOB |
| 3. | YN21C03001F1 | [1] | PANEL | KOBAssy |
| 3-1. | YN21C03002P2 | [1] | PANEL | KOB |
| 3-1E. | YN21C02347P1 | [2] | HINGE | KOB |
| 3-2. | YN21C03030P1 | [1] | FOAM INSULATION | KOB |
| 3-3. | YN21C02462P1 | [1] | RUBBER STRIP | KOB |
| 4. | ZN18C10008 | [12] | NUT | KOB |
| 5. | ZW26X10000 | [12] | LOCK WASHER | KOB |
| 6. | 2418T12346 | [12] | WASHER | KOB |
