神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (250-02-1) - COVER ASSY, UNDER [HD (DISMANTLE)] Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
378 次

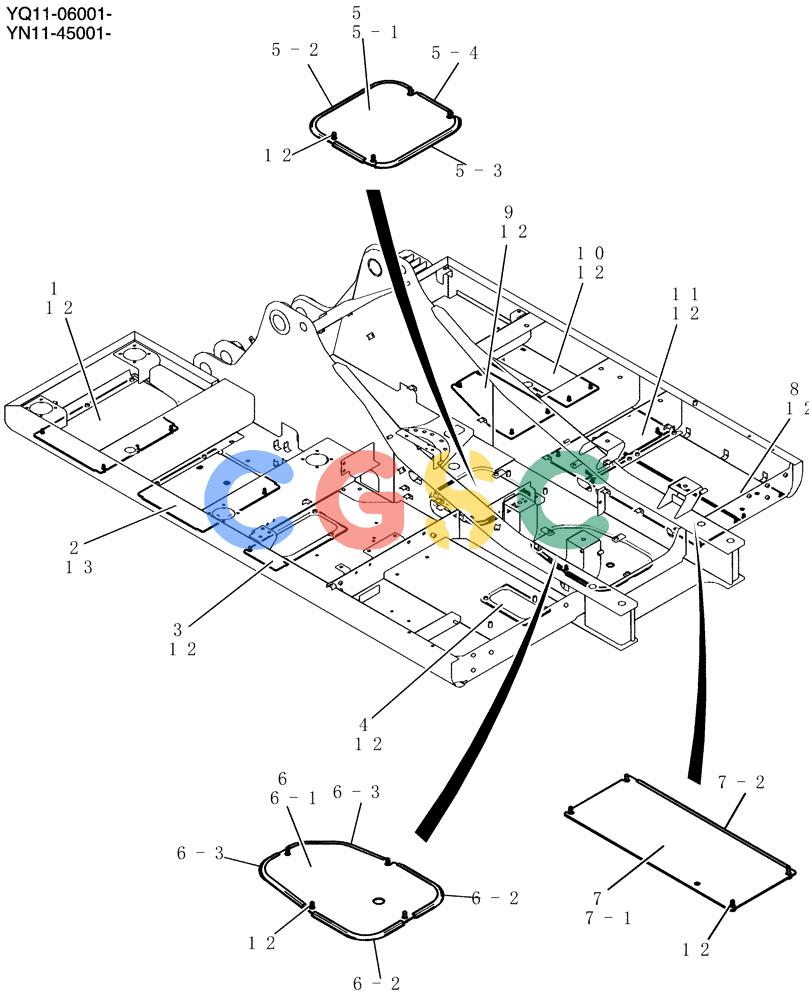

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN24C00034F1 | [1] | COVER ASSY | KOBUnder |
| 1. | YN24C01290P1 | [1] | PLATE | KOB |
| 2. | YN24C01292P1 | [1] | PLATE | KOB |
| 3. | LC24C01105P1 | [1] | PLATE | KOB |
| 4. | YN24C01294P1 | [1] | PLATE | KOB |
| 5. | YN24C01332F1 | [1] | PLATE | KOB |
| 5-1. | YN24C01296P1 | [1] | PLATE | KOB |
| 5-2. | LS21C01093DK | [1] | TRIM PANEL | KOBTrim |
| 5-3. | LS21C01093D5 | [1] | TRIM | KOB |
| 5-4. | LS21C01093DH | [2] | TRIM | KOB |
| 6. | YN24C01333F1 | [1] | PLATE | KOB |
| 6-1. | YN24C01298P1 | [1] | PLATE | KOB |
| 6-2. | LS21C01093DJ | [2] | TRIM PANEL | KOB |
| 6-3. | LS21C01093D4 | [2] | TRIM | KOB |
| 7. | YN24C01334F1 | [1] | PLATE | KOB |
| 7-1. | YN24C01300P1 | [1] | PLATE | KOB Superseded by part number: YN24C01300P2 |
| 7-2. | LS21C01093DL | [1] | TRIM PANEL | KOB |
| 8. | YN24C01302P1 | [1] | PLATE | KOB |
| 9. | YN24C01304P1 | [1] | PLATE | KOB |
| 10. | YN24C01306P1 | [1] | PLATE | KOB Superseded by part number: YN24C01367F1 |
| 11. | YN24C01308P1 | [1] | PLATE | KOB |
| 12. | ZM73C12030 | [42] | BOLT,M12x30mm - Course Thread | KOBSems |
| 13. | ZM73C12035 | [4] | BOLT,M12x35mm - Course Thread | KOBSems |
