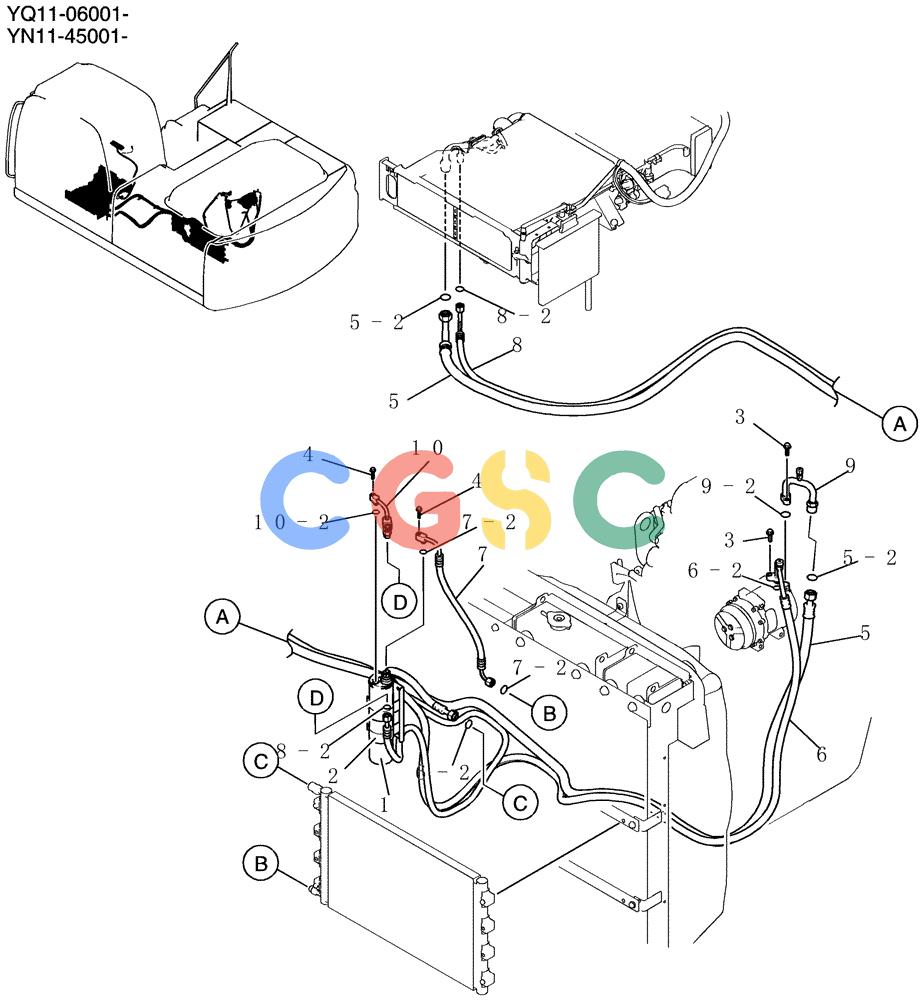

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (292-01-1) - DRIER ASSY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
645 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN96V00024F1 | [1] | AERATOR | KOBDrier Assy, Air Superseded by part number: YN96V00042F1 |
| 1. | YN54S00041P1 | [1] | RECEIVER-DRYER | SM Superseded by part number: LQ54S00005P1 |
| 2. | YN20M01469P1 | [1] | BRACKET | KOB |
| 3. | YT96V00001S009 | [2] | SCREW | KOBscrew |
| 4. | YT96V00001S010 | [2] | CAP | KOBscrew |
| 5. | YN20M01582F1 | [1] | HOSE ASSY. | KOB |
| 5-2. | 2445Z1604D5 | [2] | O-RING | KOB |
| 6. | YN20M01644F1 | [1] | HOSE ASSY. | KOB |
| 6-2. | 2445Z1604D4 | [2] | O-RING | KOB |
| 7. | YN20M01645F1 | [1] | HOSE ASSY. | KOB |
| 7-2. | 2445Z1604D6 | [2] | O-RING | KOB |
| 8. | YN20M01583F1 | [1] | HOSE ASSY. | KOB |
| 8-2. | 2445Z1604D6 | [2] | O-RING | KOB |
| 9. | YN20M01546F1 | [1] | TUBE | KOBAssy |
| 9-2. | 2445Z1604D5 | [1] | O-RING | KOB |
| 10. | YN20M01518F1 | [1] | RIGID TUBE | SML - Tube, (Incls. O-Ring 2445Z1604D6) |
| 10-2. | 2445Z1604D6 | [1] | O-RING | KOB |
