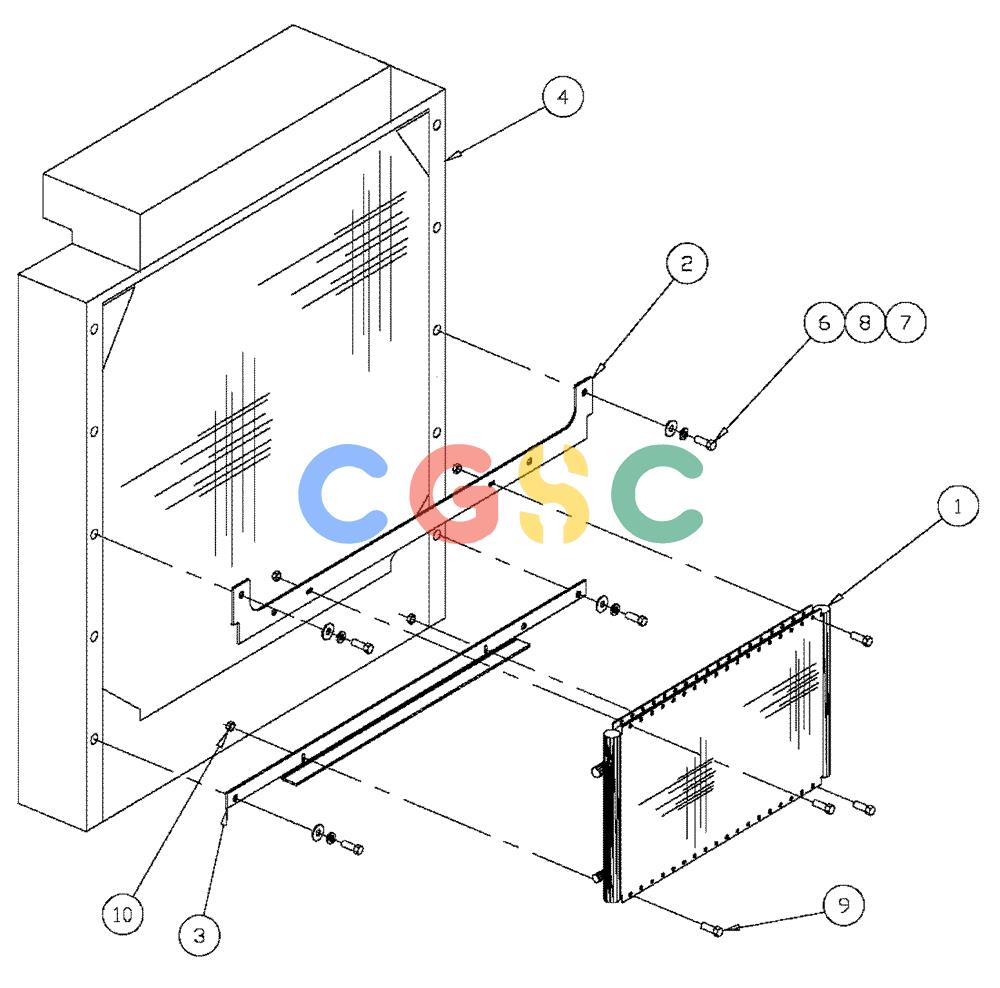

凯斯零件查询(4330) - TITAN FLOATER (6/98-8/99) (02-012) - CONDENSOR/RADIATOR GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2396320
|
[1] |
CONDENSER
|
BN
A/C
|
| 2. |
BN7144025
|
[1] |
FILLING STRIP
|
TYR
Condenser Upper Mount
|
| 3. |
BN7144024
|
[1] |
SHEET
|
BN
Condenser Lower Mount
|
| 4. |
BN2394853
|
[1] |
RADIATOR
|
BN
ICS MD W/CAC (4330)
|
| 4. |
BN2394844
|
[1] |
RADIATOR
|
TYR
ICS For Auto (4300)
|
| 4A. |
BN2394844-001
|
[1] |
GLASS
|
BN
Sight
|
| 4B. |
BN2394844-002
|
[1] |
TANK
|
BN
Bottom W/Cooler
|
| 4C. |
BN2394844-003
|
[1] |
GASKET
|
BN
Tank
|
| 5. |
BN7144026
|
[3] |
CLAMP
|
BN
A/C Condenser
|
| 6. |
BN1913319C
|
[4] |
BOLT
|
BN
HH 3/8-16 X 1 NC Superseded by part number: 413-616
|
| 7. |
87529233
|
[4] |
WASHER,0.41" ID x 0.81" OD x 0.09" Thk
|
BN
3/8"
|
| 8. |
BN2303412
|
[4] |
LOCK WASHER
|
BN
3/8 Superseded by part number: 80680
|
| 9. |
50364
|
[4] |
|
BOLT Hex, 1/4"-20 x 1 1/2", G5
|
| 10. |
BN1470402C
|
[4] |
FLANGE NUT
|
BN
NC 1/4-20 Flex Lock Superseded by part number: 280129
|
