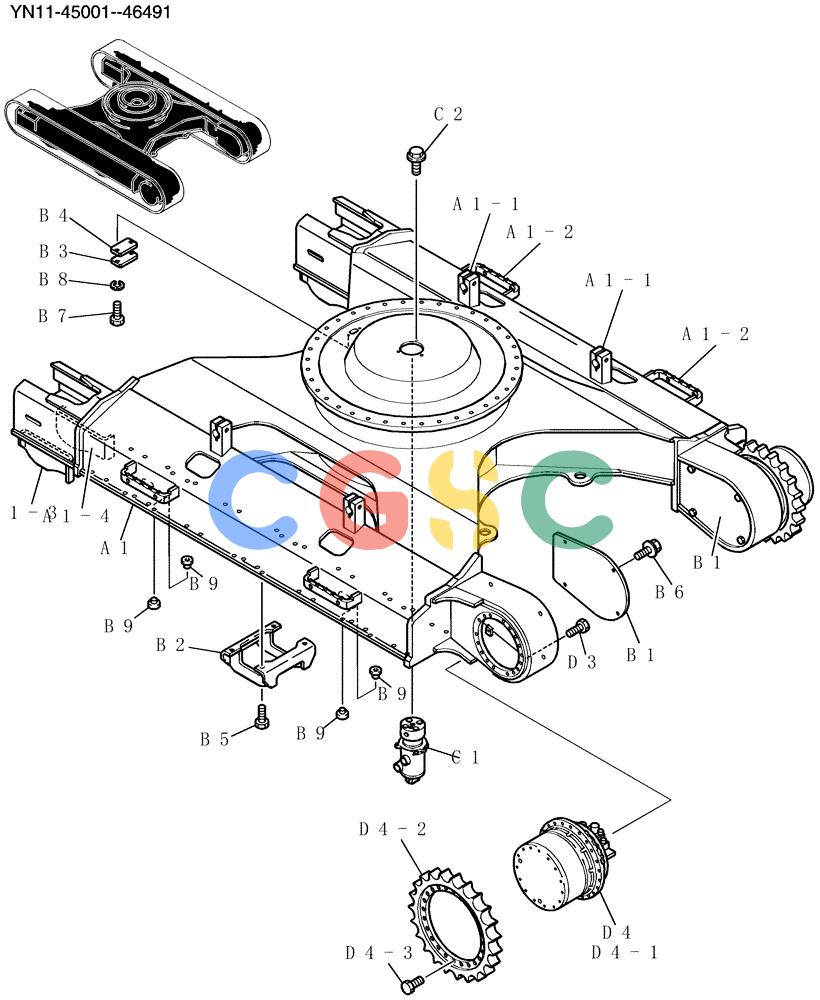

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (330-01-1) - LOW GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN02F00164F1 | [1] | Low NSS | |
| A1. | YN02F00149P1 | [1] | Low NSS | |
| A1-1. | YN07F01270P1 | [4] | SUPPORT | KOB |
| A1-2. | YN41C00060P1 | [4] | STEP | KOB Superseded by part number: YN41C00077P1 |
| A1-3. | YN07F01075P1 | [2] | GUIDE | KOB |
| A1-4. | YN07F01076P1 | [2] | GUIDE | KOB |
| . . | YN01F00035F1 | [1] | Low Group NSS | |
| B1. | YN01F01080P1 | [2] | COVER | KOB |
| B2. | YN63D00003P1 | [2] | GUIDE | KOBTrack Superseded by part number: YN63D00003P2 |
| B3. | 2422T556 | [1] | PLATE | KOB |
| B4. | 2418T12274 | [1] | PACKING | KOBRubber |
| B5. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOBCap |
| B6. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBSems |
| B7. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBCap |
| B8. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| B9. | YN01F01040P1 | [32] | CAP | KOB Superseded by part number: YY01F01047P1 |
| . . | YN19H00053F1 | [1] | Swivel NSS | |
| C1. | YN55V00053F1 | [1] | CENTER JOINT | KOBAssy, Swivel |
| C2. | ZM73C12025 | [3] | BOLT,M12x25mm - Course Thread | KOBSems |
| . . | YN53D00012F1 | [1] | HYDRAULIC MOTOR | KOBInstal, Propel NSS |
| D3. | 2420P2963D3 | [52] | CAP | KOB |
| D4. | YN53D00015F1 | [2] | HYDRAULIC MOTOR | KOBInstal, Propel NSS |
| D4-1. | YN15V00037F1 | [1] | HYDRAULIC MOTOR | SMAssy, Propel Superseded by part number: YN15V00037F2 |
| D4-2. | YN51D01003P1 | [1] | DRIVING SPROCKET | SM |
| D4-3. | ZS13C16045 | [26] | SCREW | KOB |
