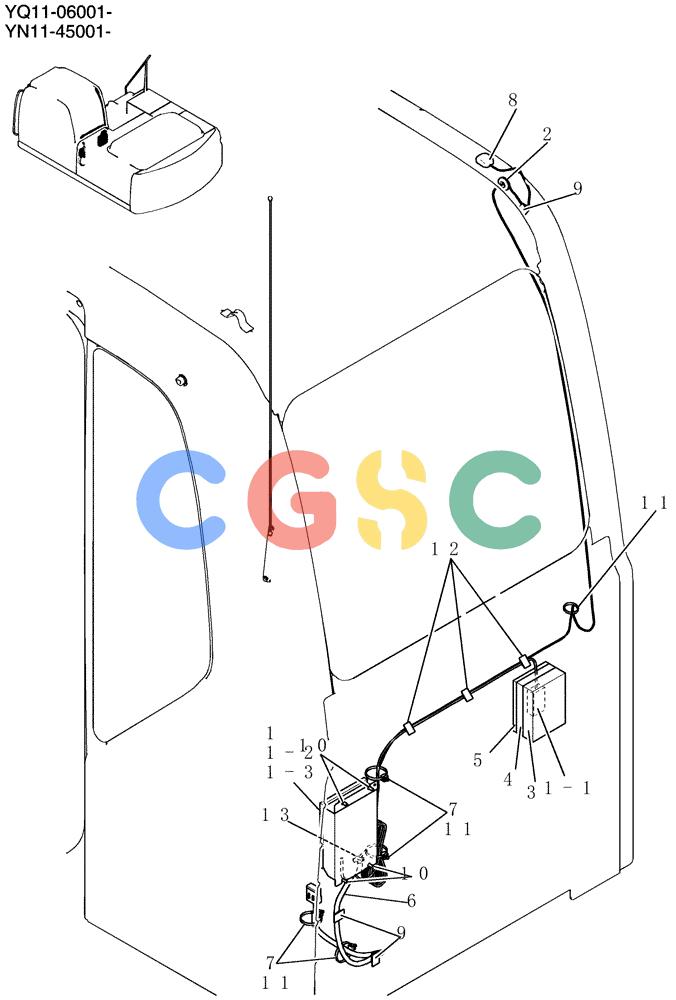

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (328-01-1) - HARNESS ASSY (IT KIT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN11E00065F1 | [1] | | |
| 1. | YN22E00303F1 | [1] | CONTROLLER | KOB Superseded by part number: YN22E00303F3 |
| 1-1. | YN54S00051P1 | [1] | ANTENNA | KOB |
| 1-2. | YN22E00302F1 | [1] | | |
| 1-3. | YN22E00305P1 | [1] | CONTROLLER | KOB |
| 2. | YN02C02296P1 | [1] | GROMMET | KOB |
| 3. | YN02C03997P1 | [1] | INSULATION | KOB |
| 4. | YN02C03998P1 | [1] | INSULATION | KOB |
| 5. | YE21C01145P1 | [1] | INSULATION | KOB |
| 6. | YN11E01155P1 | [1] | HARNESS | KOB |
| 7. | YN13E01375P1 | [4] | CLIP,M8 x 8.20mm Shank | KOB |
| 8. | YN54S00052P1 | [1] | ANTENNA | KOBGPS |
| 9. | 2432Z478D3 | [3] | CLIP | KOB |
| 10. | ZM61C06016 | [4] | BOLT | KOBSems |
| 11. | PY01P01043D3 | [5] | CABLE TIE,188mm L | KOB |
| 12. | 2432Z478D2 | [3] | CLIP | KOB |
| 13. | PY01P01043D9 | [1] | CABLE TIE,2.50mm W x 100mm L | KOB |
