神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (381-01-1) - SHOE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
578 次

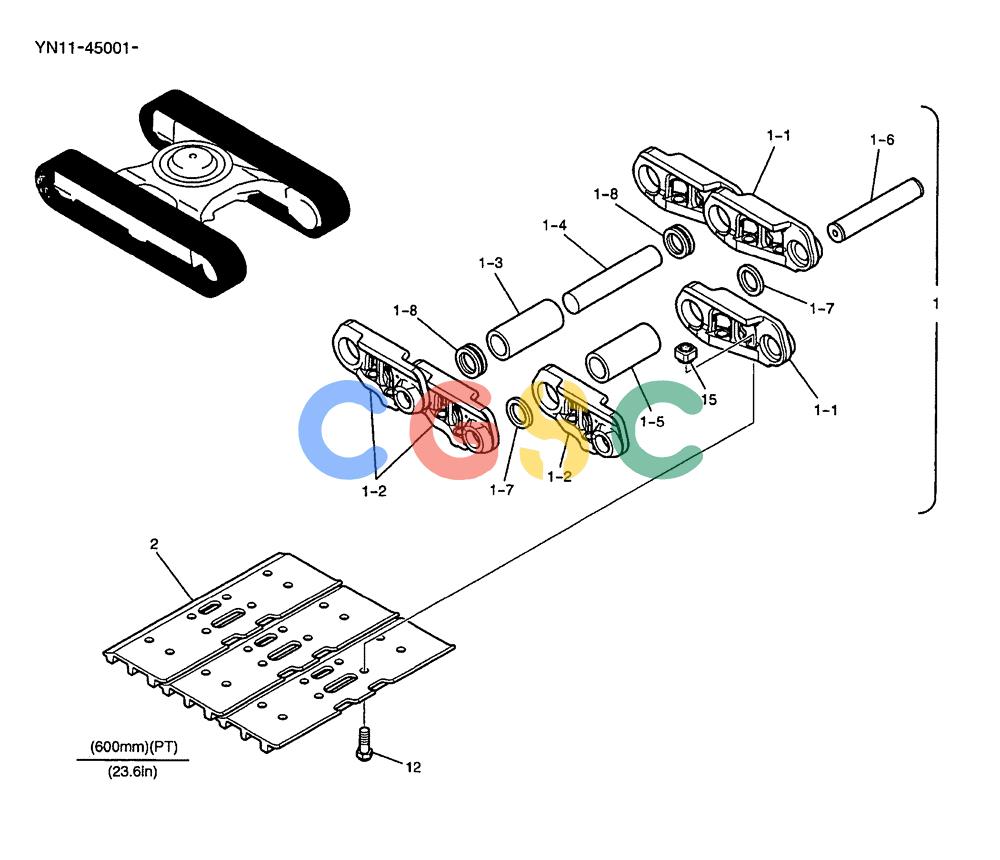

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN60D00060F1 | [1] | Assy | |
| . . | YN60D00054F1 | [2] | SHOE | KOBAssy Superseded by part number: YN60D00054F1J1A |
| 1. | YN62D00017F1 | [1] | CHAIN | KOBTrack Link Assy |
| 1-1. | 2424J170D1 | [46] | TRACK LINK | KOBR.H. |
| 1-2. | 2424J170D2 | [46] | LINK | KOBTrack L.H. |
| 1-3. | 2405P694 | [45] | BUSHING,37.13mm ID x 58.78mm OD x 138mm L | KOBTrack |
| 1-4. | 2419P3042 | [45] | PIN,36.63mm OD x 210mm L | KOBTrack |
| 1-5. | 2405P392 | [1] | BUSHING,36.83mm ID x 58.78mm OD x 129mm L | KOBMaster |
| 1-6. | YN62D01017P1 | [1] | PIN,36.5mm OD x 210mm L | KOBMaster |
| 1-7. | 2418T25964 | [2] | COLLAR | KOB |
| 1-8. | YN62D01028P1 | [90] | SEAL,37.25mm ID x 60.5mm OD x 14.2mm Thk | KOB |
| 2. | YN60D00044P1 | [46] | SHOE | KOB600mm |
| 12. | 2420Z1292 | [184] | BOLT | KOBShoe Superseded by part number: |
| 15. | 2420Z1293 | [184] | NUT | KOB Superseded by part number: 2420P1584 |
