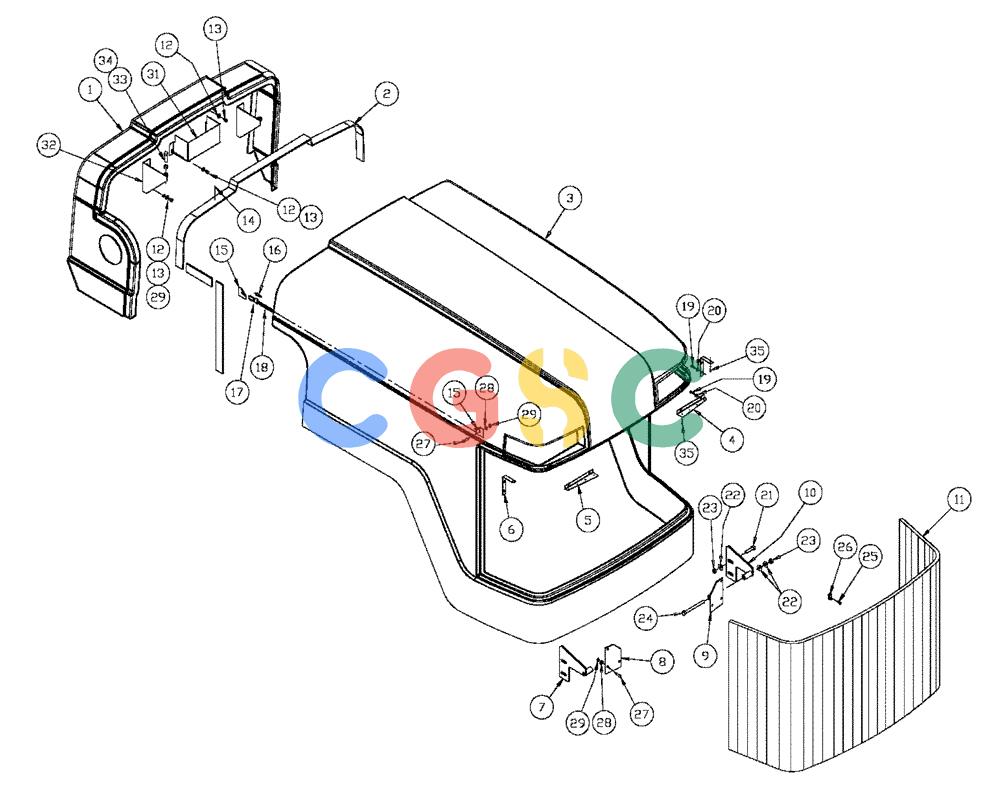

凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (04-012) - HOOD GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
131 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN303713
|
[1] |
Cowling, Hood, 542
|
|
| 2. |
BN313860
|
[1] |
BELT,1.25" W x
|
BN
Cotton, Red
|
| 3. |
BN300058
|
[1] |
Front, 4 Wheeler
|
|
| 4. |
BN303232
|
[1] |
MOUNTING PARTS
|
BN
headlamp, LH
|
| 5. |
BN303233
|
[1] |
BRACKET
|
BN
Headlamp, RH
|
| 6. |
BN303231
|
[2] |
BRACKET
|
BN
Headlamp Back
|
| 7. |
BN302851
|
[1] |
MOUNTING PLATE
|
BN
Hinge, Frame, RH
|
| 8. |
BN302853
|
[1] |
Hinge Plate, Hood, RH
|
|
| 9. |
BN302854
|
[1] |
Hinge Plate, Hood, LH
|
|
| 10. |
BN302852
|
[1] |
MOUNTING PLATE
|
BN
Hinge, Frame, LH
|
| 11. |
BN300059
|
[1] |
GRILLE
|
BN
Wrap Around
|
| 12. |
BN50141
|
[12] |
WASHER
|
BN
5/16, FW, G5 Superseded by part number: 80664
|
| 13. |
87872
|
[12] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
NH
|
| 14. |
BN303821
|
[19] |
RIVET
|
BN
.18 x .57 Steel
|
| 15. |
BN7142951
|
[4] |
SHEET
|
BN
Cable Anchor
|
| 16. |
BN2402055
|
[4] |
THIMBLE
|
BN
Wire Rope 3/16"
|
| 17. |
BN2403398
|
[4] |
CLAMP
|
BN
Wire Rope 3/16
|
| 18. |
BN2403397
|
[1] |
CABLE
|
BN
Vinylcoat 3/16 DRV, 10FT
|
| 19. |
86505530
|
[8] |
BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd
|
FOR
|
| 20. |
BN300488
|
[8] |
WASHER
|
BN
M6, Flat, 8.8 Superseded by part number: 87529302
|
| 21. |
BN302747
|
[4] |
BOLT
|
BN
M12-1.75 X 50, HH, 10.9
|
| 22. |
BN300500
|
[8] |
WASHER,M12, 10.9
|
BN
Superseded by part number: 86625255
|
| 23. |
BN300359
|
[6] |
BOLT
|
BN
M12-1.75, Fln, 8.8 Superseded by part number: 832-46412
|
| 24. |
BN301082
|
[2] |
NUT
|
BN
M12-1.75 X 140, Hh, 8.8
|
| 25. |
BN307091
|
[32] |
SCREW,M6 x 20mm
|
BN
M6-1 X 20, AH, SS
|
| 26. |
BN300401
|
[32] |
CLIP
|
BN
U Nut, On - M6-1
|
| 27. |
BN2403270
|
[8] |
BOLT
|
BN
Carriage 5/16 X 1 1/4
|
| 28. |
BN50144
|
[8] |
LOCK WASHER
|
BN
5/16" SS Lock
|
| 29. |
BN1470403C
|
[10] |
FLANGE NUT
|
BN
5/16-18, FLN, G8 Superseded by part number: 231-4145
|
| 30. |
BN43840
|
[2] |
LATCH
|
BN
|
| 31. |
BN306490
|
[1] |
BOX
|
BN
Wiper
|
| 32. |
BN303717
|
[2] |
Cowl
|
|
| 33. |
50286
|
[2] |
|
BOLT Hex, 1/2"-13 x 1 3/4", G5
|
| 34. |
BN50072
|
[2] |
NUT
|
BN
Hex, 1/2"-13, G5 Superseded by part number: 231-4148
|
