神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (450-01-1) - BOOM GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
502 次

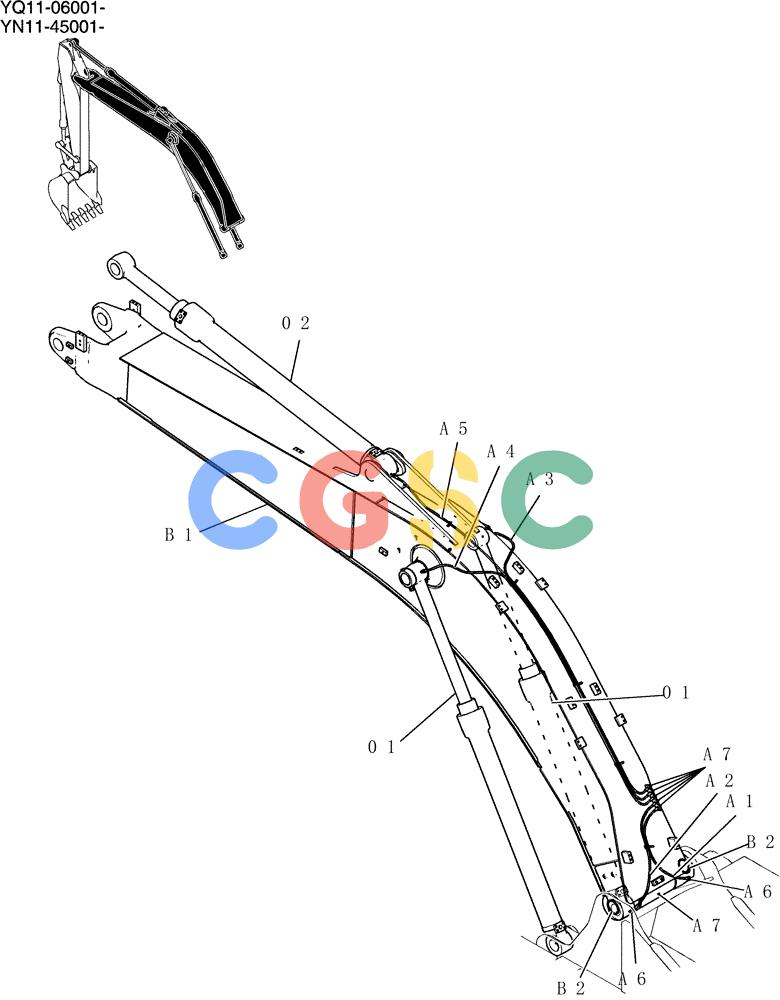

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN02B00362F1 | [1] | Boom Group | |
| A1. | 2444R1117D080 | [1] | HOSE,6.4mm ID x 800mm L | KOB |
| A2. | 2444R1117D084 | [1] | HOSE,6.40mm ID x 840mm L | KOB Superseded by part number: 2444R1117D085 |
| A3. | 2444R1117D250 | [1] | HOSE,6.40mm ID x 2500mm L | KOB Superseded by part number: HX21E04250DY |
| A4. | 2444R1117D260 | [1] | HOSE,6.4mm ID x 2600mm L | KOB |
| A5. | 2444R1117D300 | [1] | HOSE,6.4mm ID x 3000mm L | KOB |
| A6. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| A7. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| . . | YN02B00403F1 | [1] | Hoe | |
| B1. | YN02B00404F1 | [1] | BOOM | KOBAssy, Hoe (See fig.no 455) Superseded by part number: YN02B00578F1 |
| B2. | 2445R138D8 | [2] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust |
| . . | YN02B00363F1 | [1] | Instal | |
| C1. | YN02B01719P1 | [1] | PIN,90mm OD x 876mm L | KOB |
| C2. | HS18C20175G2 | [1] | BOLT,Hex, M20 x 175mm, Cl 10.9 | KOBCap Superseded by part number: 87334470 |
| C3. | ZN18C20016 | [2] | NUT | KOB |
| C4. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOB |
| C5. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOB |
| C6. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOB |
| C7. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOB |
| C8. | YN02B01414D1 | [2] | SHIM,92mm ID x 160mm OD x 2mm Thk | KOB |
