神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (570-01-1) - LIGHT INSTAL (BOOM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
524 次

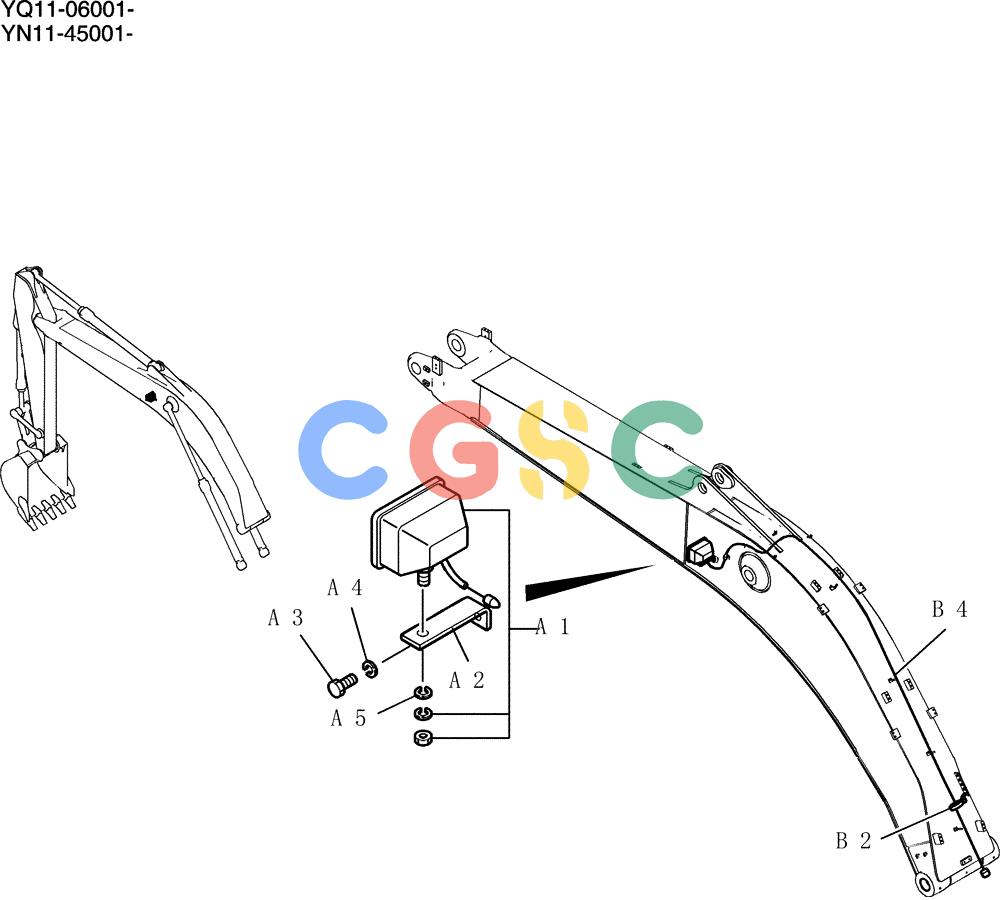

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN80E00011F1 | [1] | LIGHT | KOBInstal, Boom |
| A1. | YW80S00001F1 | [1] | LIGHT ASSY. | KOB(See Fig No. 572) Superseded by part number: 2456R442F1 |
| A2. | 2416T13056 | [1] | BRACKET | KOB |
| A3. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBCap M10x1.50x20mm |
| A4. | 2418R323D11 | [1] | WASHER | KOB |
| A5. | 2418R323D13 | [1] | LOCK WASHER | KOB |
| . . | YN15E00003F3 | [1] | HARNESS | KOBAssy, Boom |
| B2. | PY01P01043D7 | [1] | CABLE TIE,4.80mm W x 445mm L | KOB |
| B4. | YN15E01013D2 | [1] | HARNESS | KOB |
