神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (715-86-2) - LUB LINES, UPP (AUTO GREASTER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
831 次

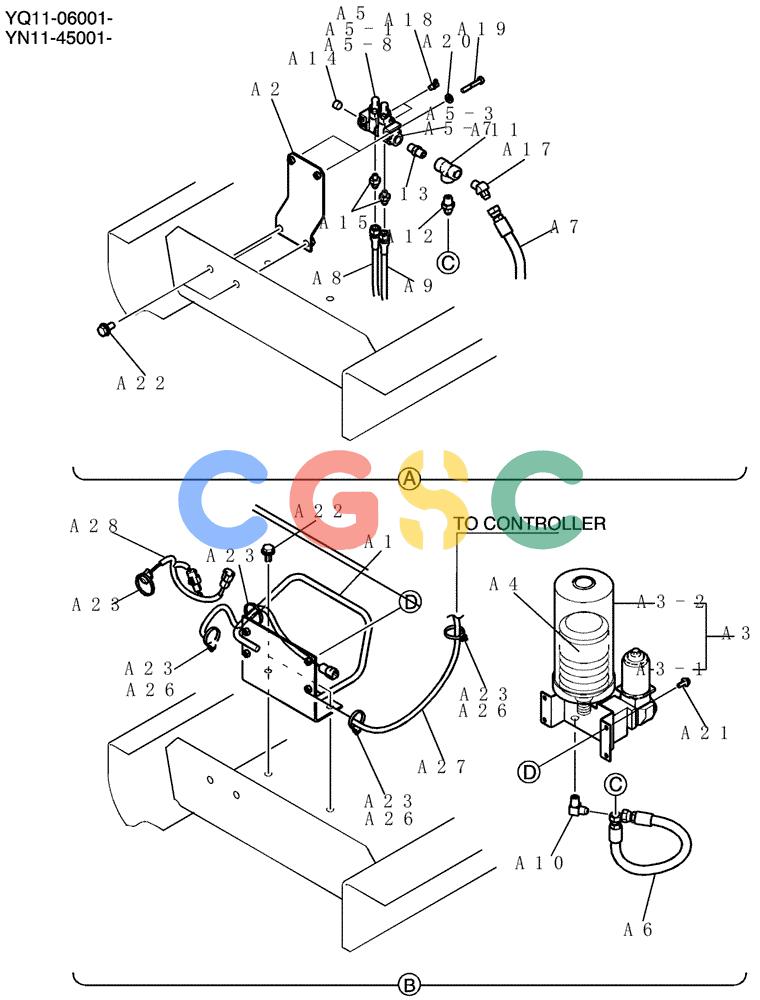

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN73H00006F1 | [1] | Lub, Upp | |
| . . | YN73H00005F1 | [1] | Lub, Upp | |
| A1. | YN73H01009P1 | [1] | BRACKET | KOB |
| A2. | YN73H01005P1 | [1] | BRACKET | KOB |
| A3. | LC71V00001P1 | [1] | PUMP | KOBAssy, Grease Superseded by part number: LC71V00002F1 |
| A3-1. | LC71V00001P1S1 | [1] | PUMP | KOBAssy Superseded by part number: LC71V00002S001 |
| A3-2. | LC71V00001P1S2 | [1] | TANK | KOBGrease Superseded by part number: LC71V00002S002 |
| A4. | 2421Z512 | [1] | LUBRICANT | KOBLub Kit |
| A5. | 2479P2281D2 | [1] | DISTRIBUTOR | KOB |
| A5-1. | 2479P2281S1 | [2] | ELEMENT | KOBKit |
| A5-3. | 2479P2281S3 | [1] | BOLT | KOBAssy |
| A5-7. | 2479P2281S7 | [2] | CAP | KOB |
| A5-8. | ZD12P01090 | [3] | O-RING | KOB |
| A6. | ZX25M06052 | [1] | HOSE | KOB |
| A7. | ZX25M06270 | [1] | HOSE | KOB |
| A8. | 2420R349D200 | [1] | HOSE ASSY. | KOB |
| A9. | 2420R349D230 | [1] | HOSE ASSY. | KOB |
| A10. | ZH32Z06000 | [1] | ELBOW | KOB |
| A11. | ZG52U06000 | [1] | TEE | KOB |
| A12. | ZH22Z06000 | [1] | CONNECTION | KOB |
| A13. | ZG22E06000 | [1] | HYD CONNECTOR | KOB |
| A14. | ZE82T06000 | [1] | PLUG | KOB |
| A15. | 2444Z2002 | [2] | HYD CONNECTOR | KOB |
| A16. | ZH32Z04002 | [2] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| A17. | ZH42Z06000 | [1] | ELBOW | KOB |
| A18. | 2444T4679 | [2] | LUBE NIPPLE | KOBNipple, Grease |
| A19. | ZS18C08050 | [2] | SCREW,Hex, M8 x 50mm | KOBCap |
| A20. | ZW16H08000 | [2] | WASHER | KOB |
| A21. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBSems |
| A22. | ZM73C12025 | [4] | BOLT,M12x25mm - Course Thread | KOBSems |
| A23. | PY01P01043D3 | [28] | CABLE TIE,188mm L | KOB |
| A24. | YT21C01037D6 | [2] | TRIM PANEL | KOB |
| A25. | 2414Z199D45 | [2] | PROTECTIVE SLEEVE | KOBHose Superseded by part number: 2414Z199D045 |
| A26. | YN13E01375P1 | [3] | CLIP,M8 x 8.20mm Shank | KOB |
| A27. | YN11E01156P1 | [1] | HARNESS | KOB |
| A28. | LC13E01083P1 | [1] | HARNESS | KOB |
| A29. | PW13E01051P1 | [1] | GROMMET | KOB Superseded by part number: PW13E01076P1 |
| . . | LC11E00026F1 | [1] | HARNESS | KOBAssy |
| B1. | LC11E01062P1 | [1] | HARNESS | KOB Superseded by part number: LC11E01062P2 |
| B2. | LC22E00081P1 | [1] | CONTROL | KOB Superseded by part number: LC22E00081P2 |
| B3. | YN73H01001P1 | [1] | COVER | KOB |
| B4. | ZM61C05012 | [2] | BOLT | KOBSems |
| B5. | ZM61C06016 | [2] | BOLT | KOBSems |
| B6. | 2432Z478D3 | [6] | CLIP | KOB |
| B7. | YN13E01375P1 | [1] | CLIP,M8 x 8.20mm Shank | KOB |
| B8. | PY01P01043D3 | [6] | CABLE TIE,188mm L | KOB |
