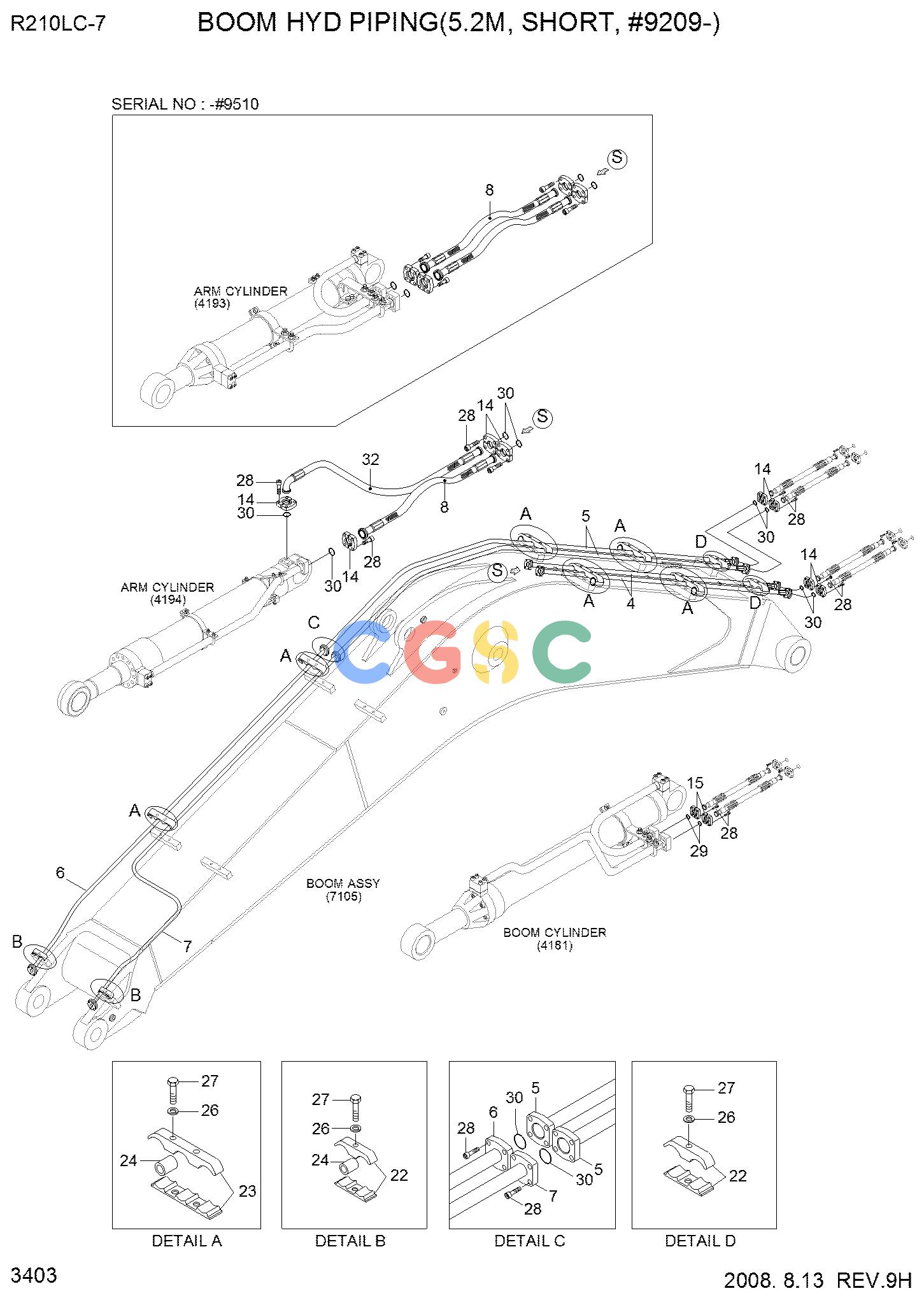

现代零件查询R210LC-7(#98001-) BOOM HYD PIPING(5.20M, SHORT)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
136 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
BOOM HYD PIPING
|
|
| 4. |
31N6-50250
|
[2] |
PIPE ASSY
|
|
| 5. |
31N6-50260
|
[2] |
PIPE ASSY
|
|
| 6. |
31N6-50270
|
[1] |
PIPE ASSY
|
|
| 7. |
31N6-50280
|
[1] |
PIPE ASSY
|
|
| 8. |
P680-167325
|
[2] |
PIPE ASSY
|
|
| 8. |
P680-167325
|
[1] |
PIPE ASSY
|
|
| 14. |
P173-160104
|
[16] |
FLANGE-HYD,SPLIT
|
|
| 15. |
P173-120102
|
[8] |
FLANGE-HYD,SPLIT
|
|
| 22. |
31N6-50310
|
[4] |
CLAMP ASSY
|
|
| 23. |
31N6-50330
|
[6] |
CLAMP ASSY
|
|
| 24. |
31N5-50230
|
[8] |
SPACER-PIPE
|
|
| 26. |
S411-160002
|
[16] |
WASHER-SPRING
|
|
| 27. |
S017-16075A
|
[16] |
BOLT-HEX
|
|
| 28. |
S019-100306
|
[56] |
BOLT-HEX
|
|
| 29. |
Y171-019004
|
[4] |
O-RING
|
|
| 30. |
Y171-024004
|
[10] |
O-RING
|
|
| 32. |
P700-167325
|
[1] |
HOSE ASSY-FLG 0X90
|
|
