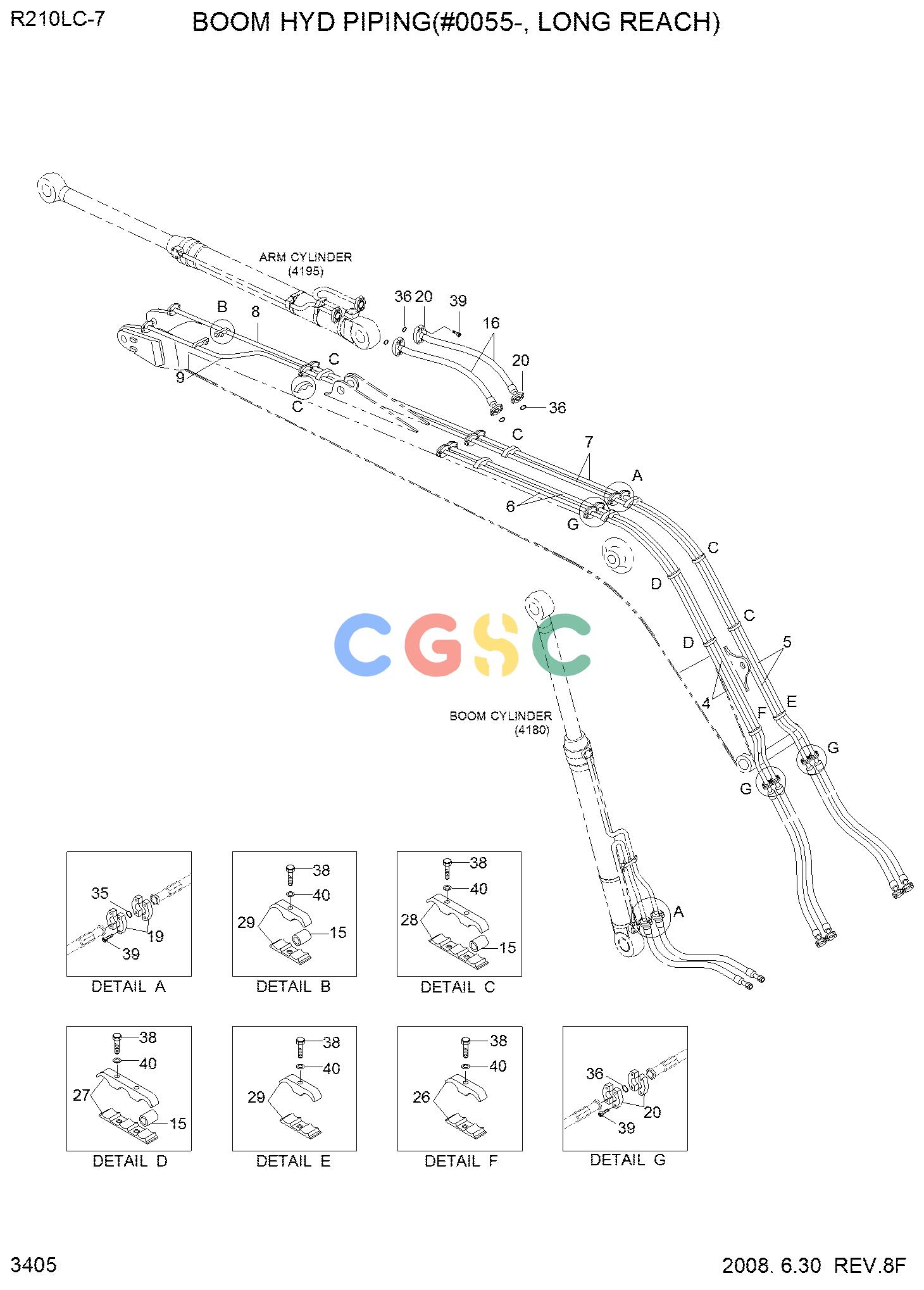

现代零件查询R210LC-7(#98001-) BOOM HYD PIPING(LONG REACH)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
535 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
31N6-56010
|
[2] |
PIPE ASSY
|
|
| 5. |
31N6-56020
|
[2] |
PIPE ASSY
|
|
| 6. |
31N6-56030
|
[2] |
PIPE ASSY
|
|
| 7. |
31N6-56040
|
[2] |
PIPE ASSY
|
|
| 8. |
31N6-56050
|
[1] |
PIPE ASSY
|
|
| 9. |
31N6-56060
|
[1] |
PIPE ASSY
|
|
| 15. |
31N5-50220
|
[15] |
SPACER-PIPE
|
|
| 16. |
P680-167323FL
|
[2] |
HOSE ASSY-FLG
|
|
| 19. |
P173-120102
|
[8] |
FLANGE-SPLIT
|
|
| 20. |
P173-160104
|
[16] |
FLANGE-SPLIT
|
|
| 26. |
31N6-50310
|
[1] |
CLAMP ASSY
|
|
| 27. |
31EM-52220
|
[4] |
CLAMP-PIPE
|
|
| 28. |
31EK-50190
|
[7] |
CLAMP-PIPE
|
|
| 29. |
31EK-50340
|
[3] |
CLAMP-PIPE
|
|
| 35. |
Y171-019004
|
[8] |
O-RING
|
|
| 36. |
Y171-024004
|
[10] |
O-RING
|
|
| 38. |
S017-160702
|
[26] |
BOLT-HEX
|
|
| 39. |
S109-100356
|
[72] |
BOLT-SOCKET
|
|
| 40. |
S411-160002
|
[26] |
WASHER-SPRING
|
|
