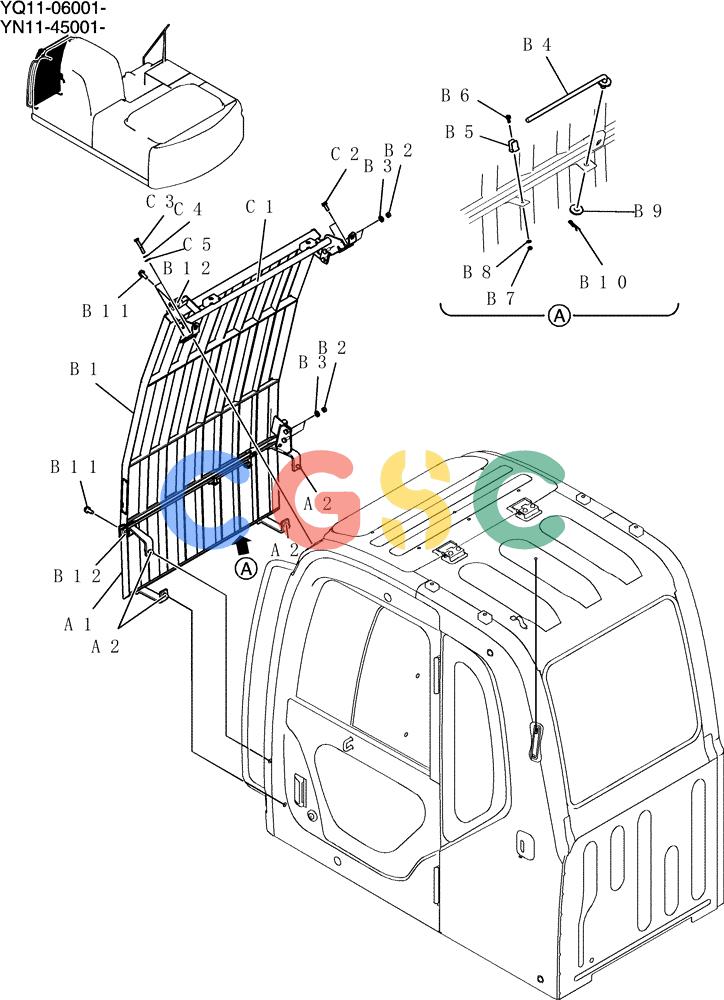

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (743-02-1) - CAB & GUARD ASSY [1, 2 FACES GUARD (VERTICAL GRID TYPE)] Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01C00017F1 | [1] | (Face Guard) | |
| . . | YN02C03461F1 | [1] | GUARD | KOBAssy. Incl. A1-A2 |
| A1. | YN02C03343P1 | [1] | GUARD | KOB |
| A2. | ZM73C12030 | [4] | BOLT,M12x30mm - Course Thread | KOBSems |
| . . | YN01C00016F1 | [1] | CONSTRUCTION DIA | SM(Face Guard) Superseded by part number: YT32T01313F2 |
| . . | YN02C03462F1 | [1] | GUARD | KOBAssy. Incl. B1-B12 |
| B1. | YN21C00122F1 | [1] | GUARD | KOBAssy |
| B2. | ZN18C10008 | [4] | NUT | KOB |
| B3. | ZW16H10000 | [4] | WASHER | KOB |
| B4. | YN02C03597P1 | [1] | ROD | KOBStay |
| B5. | YN21C01178P1 | [1] | CLIP | KOB |
| B6. | ZM66C04012 | [1] | BOLT | KOBSems |
| B7. | ZN16C04003 | [1] | NUT | KOB Superseded by part number: ZN18C04003 |
| B8. | ZW16P04000 | [1] | WASHER | KOB |
| B9. | HY25X10027G1 | [1] | WASHER,10mm ID x 27mm OD x 3.2mm Thk | KOB |
| B10. | 2419R9D2 | [1] | COTTER PIN | KOB |
| B11. | ZM73C12030 | [2] | BOLT,M12x30mm - Course Thread | KOBSems |
| B12. | YN02C03199P1 | [2] | NUT | KOB |
| . . | YN02C03586F1 | [1] | BRACKET, SUPPORTING | KOBAssy |
| C1. | YN02C03585P2 | [1] | SUPPORT | KOBSupport [ A ], Serial Range: YQ11-06001-YQ11-06535 |
| . . | YN02C03585P2 | [1] | SUPPORT | KOBSupport, Start Serial: YQ11-06536 |
| C2. | ZM73C10030 | [2] | BOLT,M10x30mm - Course Thread | KOBSems |
| C3. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBCap |
| C4. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| C5. | ZW16H10000 | [2] | WASHER | KOB |
