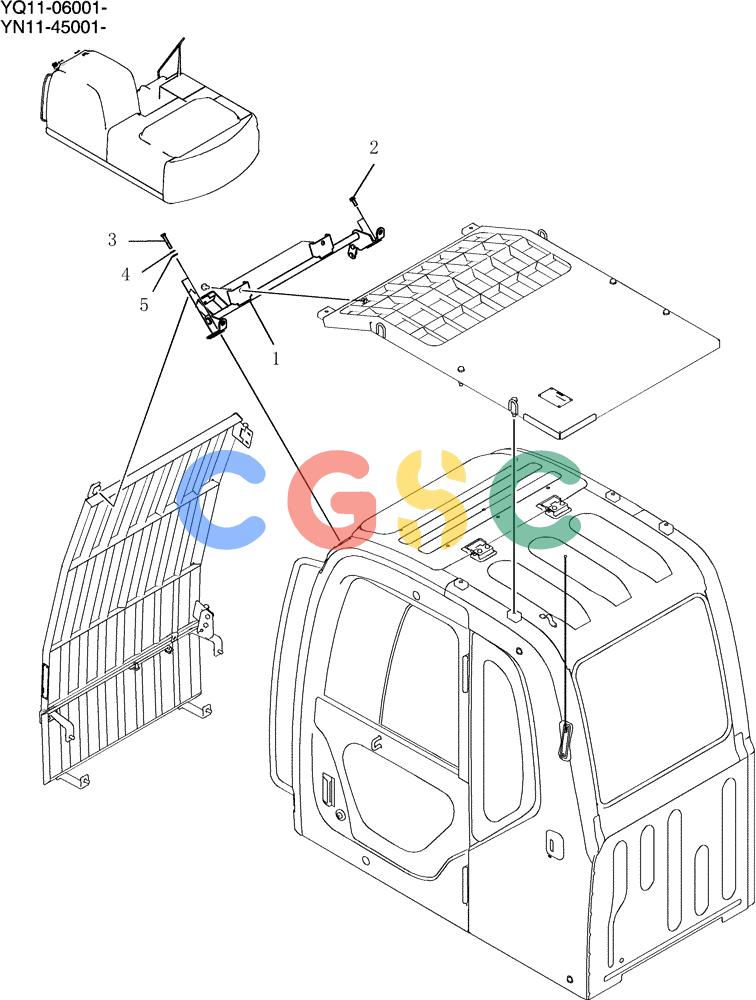

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (742-02-1) - CAB & GUARD ASSY (HEAD GUARD + 2 FACES GUARD) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
752 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01C00015F1 | [1] | (Vertical Grid Type) | |
| . . | YN02C03461F1 | [1] | GUARD | KOBAssy (See Fig No. 743) |
| . . | YN02C03462F1 | [1] | GUARD | KOBAssy (See Fig No. 743) |
| . . | YN02C03341F1 | [1] | (See Fig No. 741) | |
| . . | YN02C03470F1 | [1] | SUPPORT | KOBAssy Superseded by part number: ZW26X10000, ZW16H10000, ZS18C10060, YN02C03457P1, ZM73C10030 |
| 1. | YN02C03457P1 | [1] | SUPPORT | KOB |
| 2. | ZM73C10030 | [2] | BOLT,M10x30mm - Course Thread | KOBSems |
| 3. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBCap |
| 4. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| 5. | ZW16H10000 | [2] | WASHER | KOB |
| . . | YN01C00018F1 | [1] | (Wire Type) | |
| . . | YN02C03518F1 | [1] | GUARD | KOB(See Fig No. 745) |
| . . | YN02C03517F1 | [1] | GUARD | KOB(See Fig No. 745) |
