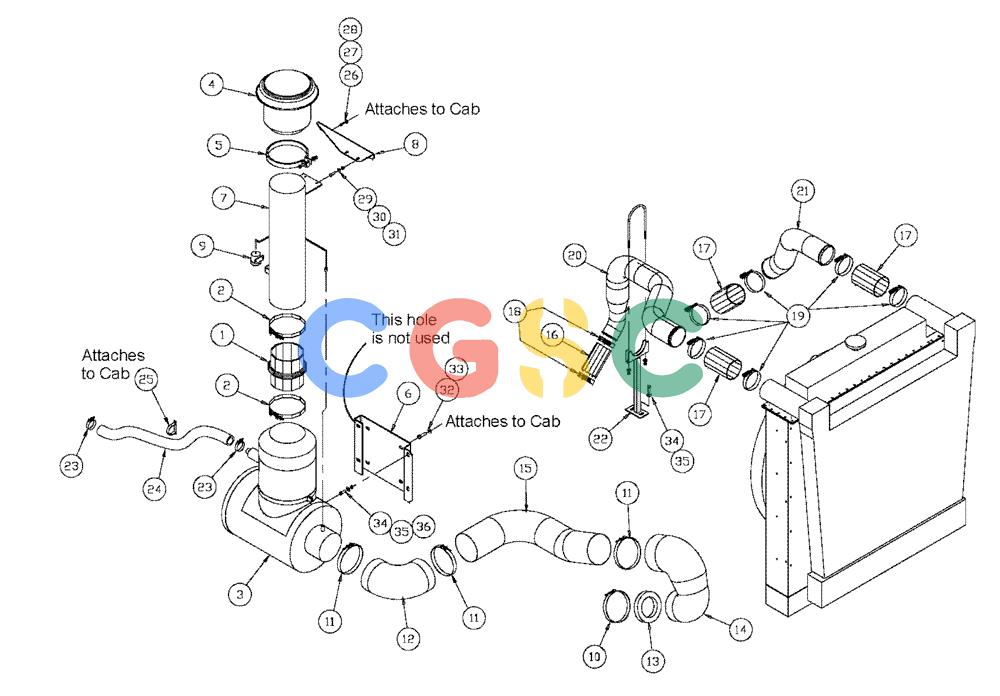

凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (02-006) - AIR INTAKE GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
467 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN2390854
|
[1] |
HOSE
|
BN
Hump 7 To 7
|
| 2. |
BN2396358
|
[2] |
CLAMP
|
BN
T-Bolt Band 7"
|
| 3. |
BN300018
|
[1] |
AIR CLEANER
|
BN
STB 14
|
| 3A. |
BN300019
|
[1] |
ADAPTER
|
BN
11 To 7 For Air CL
|
| 3B. |
BN300022
|
[1] |
AIR FILTER
|
BN
14 Primary
|
| 3C. |
BN300023
|
[1] |
AIR FILTER
|
BN
14 Safety Superseded by part number: 84541252
|
| 3D. |
BN300024
|
[1] |
AIR FILTER
|
BN
14 Ultra Web
|
| 3E. |
BN300025
|
[1] |
AIR CLEANER
|
TYR
STB 14, Precleaner Body STB 14
|
| 3F. |
BN300026
|
[1] |
BODY
|
BN
Band, Precealner STB 14
|
| 4. |
BN300020
|
[1] |
PROTECTION CAP
|
BN
Rain, Air CLR
|
| 5. |
BN303444
|
[1] |
CLAMP
|
BN
Raincap
|
| 6. |
BN302282
|
[1] |
MOUNTING PLATE
|
BN
Air Filter To Cab
|
| 7. |
BN302813
|
[1] |
PIPE
|
BN
Air Intake Riser Superseded by part number: 84492074
|
| 8. |
BN302821
|
[1] |
BRACKET
|
BN
Riser
|
| 9. |
BN303501
|
[1] |
FILTER
|
BN
Minder
|
| 10. |
BN2390361
|
[1] |
SPECIAL CLAMP
|
BN
T-Bolt Band 5.5"
|
| 11. |
BN2390362
|
[3] |
SPECIAL CLAMP
|
BN
T-Bolt Band 6.5"
|
| 12. |
BN9-22
|
[1] |
ELBOW
|
BN
6 x 90, Rubber
|
| 13. |
BN302203
|
[1] |
Rubber, 5 To 4
|
|
| 14. |
BN302204
|
[1] |
ELBOW
|
BN
Rubber, 180 X 6 X 5 Superseded by part number: 324459A1
|
| 15. |
BN302210
|
[1] |
PIPE
|
BN
Air 6" X 90D
|
| 16. |
BN2390865
|
[1] |
HOSE
|
BN
CAC 3" 367 Series
|
| 17. |
BN2390871
|
[3] |
HOSE
|
BN
CAC 4" Series 367
|
| 18. |
BN300759
|
[2] |
CLAMP
|
BN
Constant Torque, 3.25"
|
| 19. |
BN300760
|
[6] |
CLAMP
|
A
Constant Torque, 4.25"
|
| 20. |
BN302791
|
[1] |
Charge Air Pressure
|
|
| 21. |
BN302792
|
[1] |
TUBE
|
BN
Charge Air Return
|
| 22. |
BN305965
|
[1] |
SUPPORT
|
BN
CAC Tube Support
|
| 22A. |
BN25927
|
[1] |
CLAMP,104.8mm ID
|
BN
4" Muffler
|
| 23. |
BN76084
|
[2] |
HOSE CLAMP
|
BN
Adj. #24, SS Superseded by part number: 87485002
|
| 24. |
BN306562
|
[1] |
HOSE,1.50" ID x 42.00"
|
BN
1.5 X 42
|
| 25. |
BN2399320
|
[1] |
CLAMP
|
BN
Loom, Del City #2032
|
| 26. |
BN50486
|
[3] |
BOLT
|
BN
1/4-20 X .625, HH, G5 Superseded by part number: 413-410
|
| 27. |
87529236
|
[3] |
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
|
BN
0.281 X 0.625 X 0.065 HTS DOR HDN
|
| 28. |
ZPX24236
|
[1] |
SEALANT, THREAD
|
MKT
Loctite - #242
|
| 29. |
43235
|
[2] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd
|
BHB
|
| 30. |
BN300497
|
[2] |
WASHER,M8, 10.9
|
BN
Superseded by part number: 896-15008
|
| 31. |
86528579
|
[2] |
NUT,M8 x 1.25
|
WIN
|
| 32. |
86050212
|
[4] |
BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8
|
WIN
|
| 33. |
86637952
|
[4] |
WASHER,0.47" ID x 0.92" OD x 0.07" Thk
|
FAR
0.469 x 0.922 x 0.065, Hardened
|
| 34. |
9515003
|
[5] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9
|
BHB
|
| 35. |
BN300499
|
[5] |
WASHER,M10, 10.9
|
BN
Superseded by part number: 896-11010
|
| 36. |
BN304419
|
[3] |
NUT
|
BN
M10-1.5, NLN, 10.9 Superseded by part number: 100037
|
