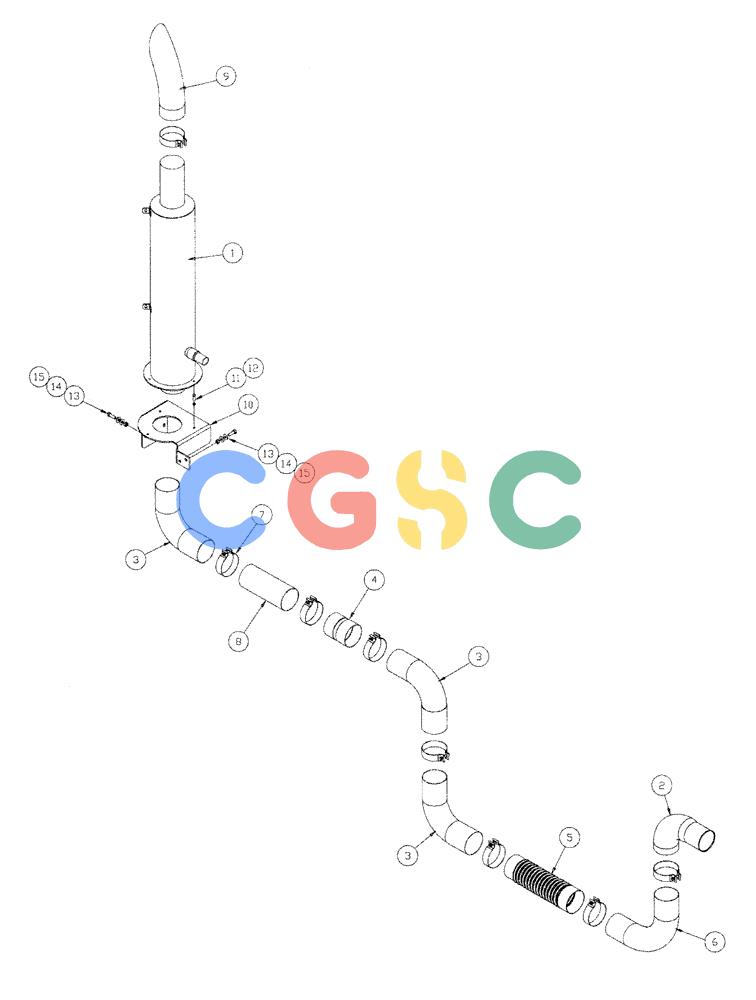

凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (02-007) - AIR EXHAUST GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
922 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN311344
|
[1] |
MUFFLER
|
BN
Assembly, 18-2450 CFM Superseded by part number: BN313594, BN313591, BN313590, 84289019, BN313588, BN313589
|
| 2. |
BN303452
|
[1] |
FLANGE
|
BN
Exhaust
|
| 3. |
BN303454
|
[3] |
ELBOW
|
BN
90, 5" ID, OD
|
| 4. |
BN303455
|
[1] |
HYD CONNECTOR
|
BN
5", ID
|
| 5. |
BN303456
|
[1] |
FLEXIBLE HOSE,18.00"
|
BN
|
| 6. |
BN303457
|
[1] |
ELBOW
|
BN
90 5" O.D.
|
| 7. |
BN303459
|
[8] |
PIPE CLAMP
|
BN
Muffler, 5"
|
| 8. |
BN303476
|
[1] |
TUBE
|
BN
Exhaust, 5" O.D., 12" L
|
| 9. |
BN303493
|
[1] |
EXHAUST SYSTEM PIPE
|
BN
5" W/ Turnout
|
| 10. |
BN304531
|
[1] |
BRACKET
|
BN
Muffler
|
| 11. |
9515003
|
[3] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9
|
BHB
|
| 12. |
BN300393
|
[3] |
NUT
|
BN
M10-1.5, FLN, 10.9 Superseded by part number: 100037
|
| 13. |
337563
|
[5] |
BOLT,M12 x 1.75 x 47.68mm, Cl 10.9
|
NH
|
| 14. |
BN300500
|
[10] |
WASHER,M12, 10.9
|
BN
Superseded by part number: 86625255
|
| 15. |
BN304551
|
[5] |
SCREW
|
BN
M12-1.75, FLN, 10.9 Superseded by part number: 832-46412
|
