神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (776-01-1) - CONTROLLER INSTAL (LONG RANGE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
482 次

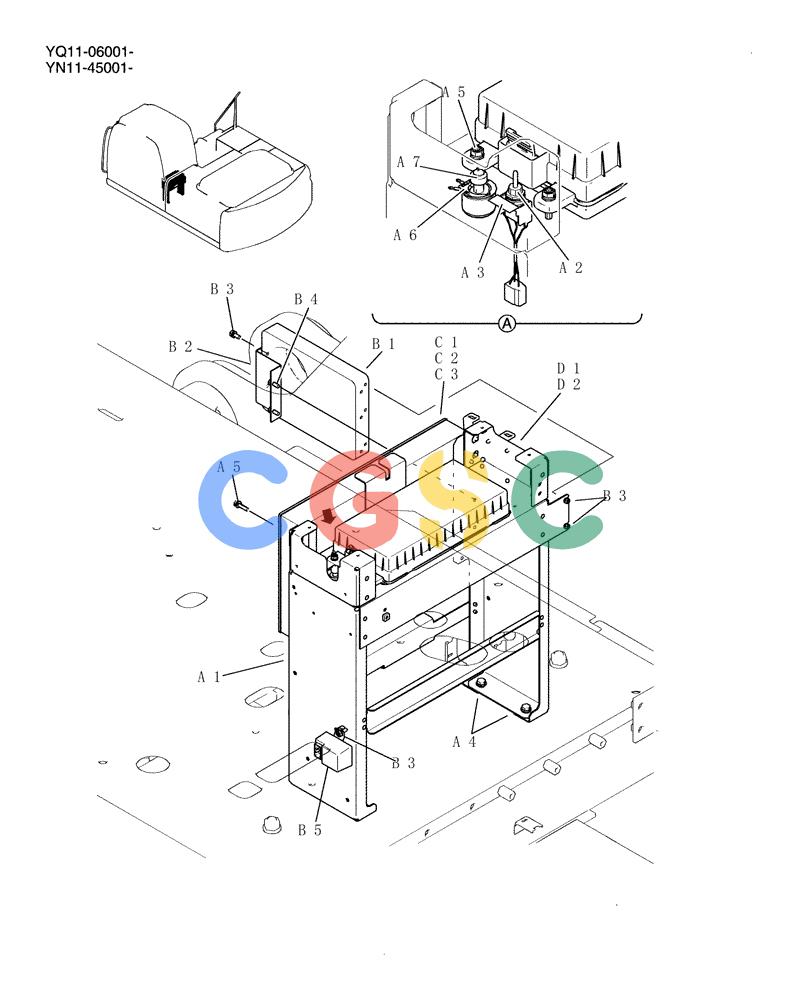

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22E00256F1 | [1] | Instal | |
| . . | YN22E00219F1 | [1] | Instal | |
| A1. | YN22E01230P3 | [1] | SUPPORT | KOB |
| A2. | YT50E00001F1 | [1] | SWITCH | KOBAssy, Serial Range: YQ11-06001-YQ11-06039 Superseded by part number: YN50S00047P1 |
| . . | YN50S00047P1 | [1] | TOGGLE SWITCH | KOB, Start Serial: YQ11-06040 |
| A3. | YN22M01014P1 | [1] | LABEL | KOB |
| A4. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBSems |
| A5. | ZM61C06025 | [7] | BOLT | KOBSems |
| A6. | YN22E01249P3 | [1] | LABEL | KOB |
| A7. | YN52S00052P1 | [1] | POTENTIOMETER | SMThrottle |
| . . | YN22E00220F1 | [1] | CONTROL | KOBInstal |
| B2. | YN22E01237P1 | [1] | BRACKET | KOB |
| B3. | ZM61C05012 | [4] | BOLT | KOBSem |
| B4. | ZM61C06016 | [3] | BOLT | KOBSems |
| B1. | VH89661E0010 | [1] | CONTROL | KOB |
| B5. | VH834701230A | [1] | CONTROL | KOB Superseded by part number: VHS834701230 |
| . . | YN22E00253F1 | [1] | Controller Assy [ C ], Serial Range: YQ11-06001-YQ11-06350 | |
| C1. | YN22E00214F1 | [1] | CONTROL | KOBController Assy Superseded by part number: YN22E00425F1 |
| C2. | YN22E00253S002 | [1] | Software [ NOT SHOWN ] | |
| . . | YN22E00297F2 | [1] | Controller Assy, Start Serial: YQ11-06351 | |
| . . | YN22E00425F1R | [1] | REMAN ELECT CONTROL | KOB200-8, SK210D-8, Both S/N YN11-45001 -, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001 -, Reman for New P/N YN22E00214F1 |
| . . | YN22E00425F1C | [1] | CORE-ELECTRONIC CONT | KOBReturn Number |
| C3. | YN22E00297S003 | [1] | Software [ NOT SHOWN ] | |
| . . | YN24E00020F1 | [1] | RELAY | KOBRelay Box Assy |
| D1. | YN24E00016F1 | [1] | RELAY | KOBRelay Box Assy [ See Fig No. 272 A ], Serial Range: YQ11-06001-YQ11-06079 Superseded by part number: YN24E00016F3 |
| . . | YN24E00016F2 | [1] | RELAY | KOBRelay Box Assy [See Fig No. 272 ], Start Serial: YQ11-06080 Superseded by part number: YN24E00016F3 |
| D2. | YN73E01024P2 | [1] | LABEL | KOBLabel |
