神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (779-02-1) - HARNESS ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
446 次

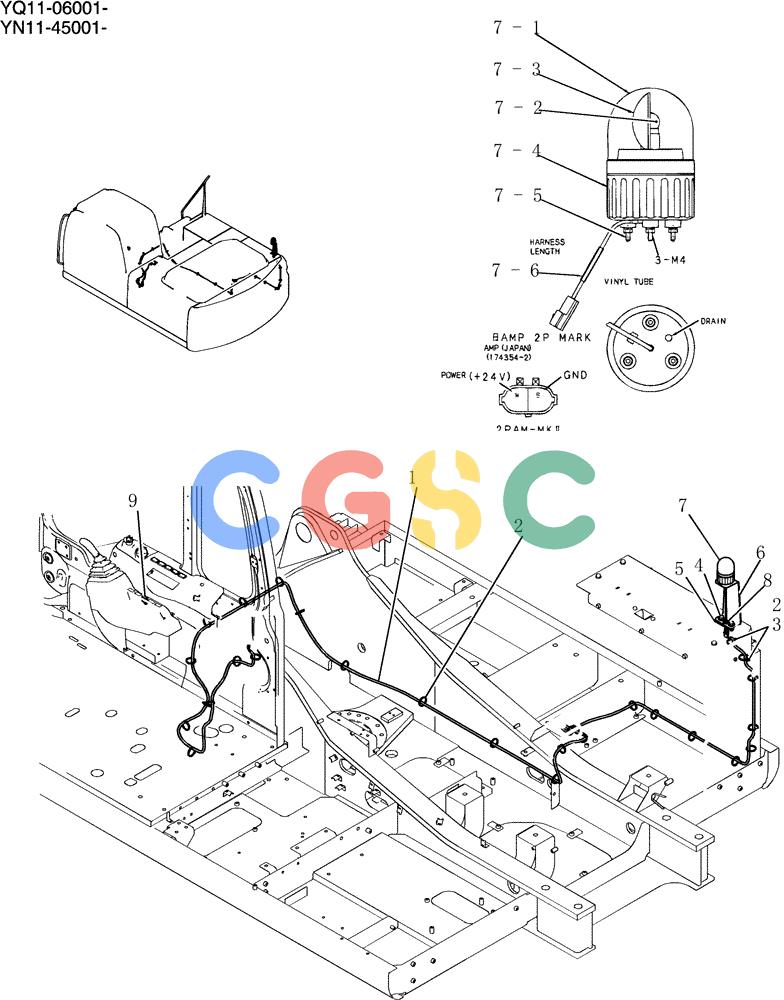

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN13E00123F1 | [1] | Upper | |
| 1. | YN13E01472P1 | [1] | WIRE HARNESS | KOBHarness |
| 2. | PY01P01043D3 | [28] | CABLE TIE,188mm L | KOB |
| 3. | YN13E01375P1 | [2] | CLIP,M8 x 8.20mm Shank | KOB |
| 4. | ZM32C12030 | [2] | BOLT | KOBSems |
| 5. | YN13E01430P1 | [1] | BRACKET | KOB Superseded by part number: YN13E01607P1 |
| 6. | YN13E01428P1 | [1] | BRACKET | KOB |
| 7. | 2456R457F1 | [1] | BEACON | KOB(24v Rotary Light) Superseded by part number: 2456R457 |
| 7-1. | 2456R457S001 | [1] | Lens | |
| 7-2. | 2456R457S002 | [1] | Bulb | |
| 7-3. | NSS | [1] | NOT SOLD SEPARAT | CONMirror |
| 7-4. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 7-5. | NSS | [3] | NOT SOLD SEPARAT | CONBolt |
| 7-6. | NSS | [1] | NOT SOLD SEPARAT | CONHarness |
| 8. | YN13E01431P1 | [1] | GROMMET | KOB, Serial Range: YQ11-06001-YQ11-06313 |
| . . | LQ13E01166P1 | [1] | GROMMET | KOB, Start Serial: YQ11-06314 |
| 9. | YN50S00040D2 | [1] | SWITCH | KOB |
