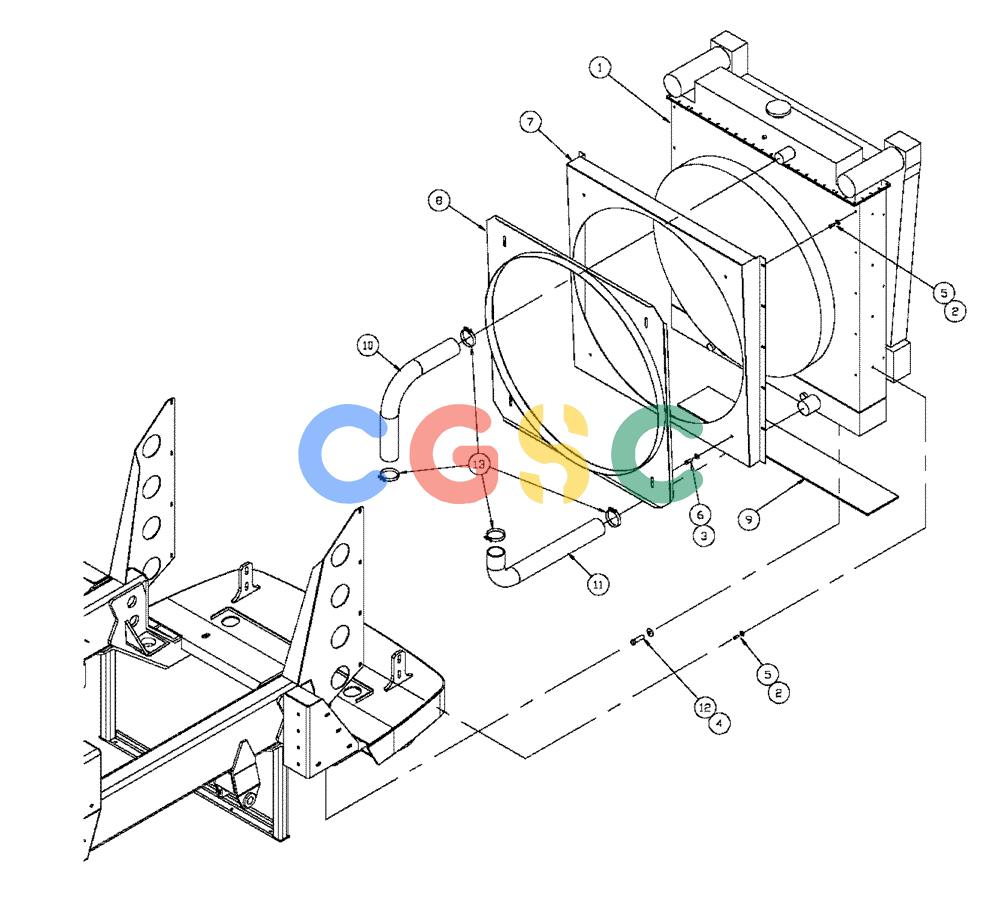

凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (02-008[01]) - RADIATOR GROUP, RADIATOR ASSEMBLY, WITH OIL COOLER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
501 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN300027
|
[1] |
RADIATOR
|
TYR
40 X 45, 4 Coolers
|
| 1A. |
BN300011
|
[1] |
ANGLE
|
BN
Chan. Mount, Oil Cooler
|
| 1B. |
BN300013
|
[1] |
TANK
|
BN
|
| 1C. |
BN300029
|
[1] |
RADIATOR
|
BN
Water, 40 x 45
|
| 1D. |
BN300030
|
[1] |
RADIATOR
|
BN
Bottom Tank, 40 x 45
|
| 1E. |
BN300031
|
[1] |
COOLER ASSY.
|
TYR
CAC, 40 X 45 Radiator
|
| 1F. |
BN305644
|
[1] |
OIL COOLER
|
TYR
30 X 38, -20 Mb
|
| 1G. |
BN306028
|
[1] |
RADIATOR CAP
|
BN
15# SAE Medium
|
| 1H. |
BN300028
|
[1] |
RADIATOR
|
BN
Assy 40 X 45 3 Coolers
|
| 2. |
BN300497
|
[18] |
WASHER,M8, 10.9
|
BN
Superseded by part number: 896-15008
|
| 3. |
BN300499
|
[4] |
WASHER,M10, 10.9
|
BN
Superseded by part number: 896-11010
|
| 4. |
BN300501
|
[2] |
WASHER
|
BN
M16, FW, 10.9 Superseded by part number: 896-15016
|
| 5. |
80043233
|
[18] |
SCREW
|
FOR
Hex, M8 x 20, 10.9 Superseded by part number: 43233
|
| 6. |
BN301045
|
[4] |
BOLT,Hex, M10 x 25, 10.9, Full Thd
|
BN
Superseded by part number: 11106231
|
| 7. |
BN302188
|
[1] |
BOX
|
BN
Fan Shroud, 38"
|
| 8. |
BN302192
|
[1] |
FAN
|
BN
38"
|
| 9. |
BN302276
|
[1] |
RADIATOR
|
BN
7 X 43
|
| 10. |
BN302306
|
[1] |
HOSE,2.50" ID x 14.50", SAE 20R4
|
BN
Upper
|
| 11. |
BN302307
|
[1] |
HOSE,2.50" ID x 23.25", SAE 20R4
|
BN
Lower
|
| 12. |
BN302759
|
[2] |
BOLT
|
BN
M16-2 X 50, HH, 10.9
|
| 13. |
BN51098
|
[4] |
HOSE CLAMP
|
BN
#48 Superseded by part number: 87485005
|
| 14. |
BN68738
|
[1] |
HYDRAULIC VALVE
|
BN
Radiator Drain W/90
|
| 15. |
BN302660
|
[1] |
FITTING
|
BN
20Mor-20Mb
|
| 16. |
BN305540
|
[2] |
HOSE
|
BN
20-100R1At-20Forx-20Forx-165
|
