凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (03-001[01]) - TRANSMISSION Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
318 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN300005
|
[1] |
TRANSMISSION
|
BN
Allison, MD3066
|
| 2. |
BN302976
|
[1] |
GEAR
|
BN
Ring, MD On #1 To #2 FW
|
| 3. |
BN302977
|
[1] |
ADAPTER
|
BN
#1 To #2 FW
|
| 4. |
BN303119
|
[1] |
PLATE
|
BN
Flex, MD3066, 3176
|
| 5. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Selector Assembly
|
| 6. |
BN305692
|
[1] |
BOX
|
BN
Relay
|
| 7. |
BN306282
|
[1] |
CONTROL UNIT
|
BN
ECU, MD3066/3176
|
| 8. |
87743577
|
[1] |
SERVICE KIT
|
BN
High Capacity Filter, Allison 295489
|
| 9. |
BN306289
|
[2] |
SENSOR
|
BN
Transmission In/Output
|
| 10. |
BN307662
|
[1] |
YOKE
|
BN
|
| 11. |
BN2402071-005
|
[1] |
DIPSTICK
|
BN
Transmission Fluid
|
| 12. |
BN302655
|
[4] |
FITTING
|
BN
12Mor-12Mb
|
| 12A. |
BN303489
|
[2] |
HOSE
|
BN
Transmission To Radiator, -12 x -12 x 73" Long
|

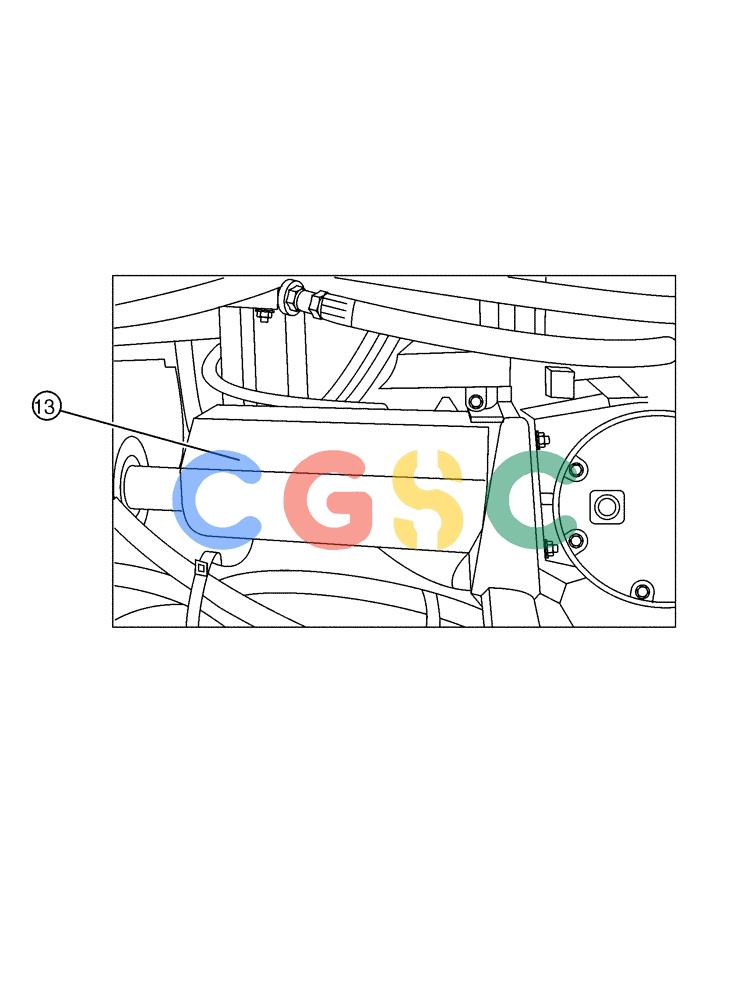

| 13. |
BN302842
|
[1] |
PTO
|
BN
LH 1.32Bbspl, MD
|
| 13A. |
BN29392
|
[2] |
KNOB
|
BN
3" With 3/8"-16 Female Thread
|
| 13B. |
BN305669
|
[1] |
BRACKET, SUPPORTING
|
TYR
PTO Shield
|
| 13C. |
BN306241
|
[1] |
GUARD
|
BN
PTO
|
| 13D. |
BN68832
|
[2] |
CLIP
|
BN
J-Type, 3/8-16
|
