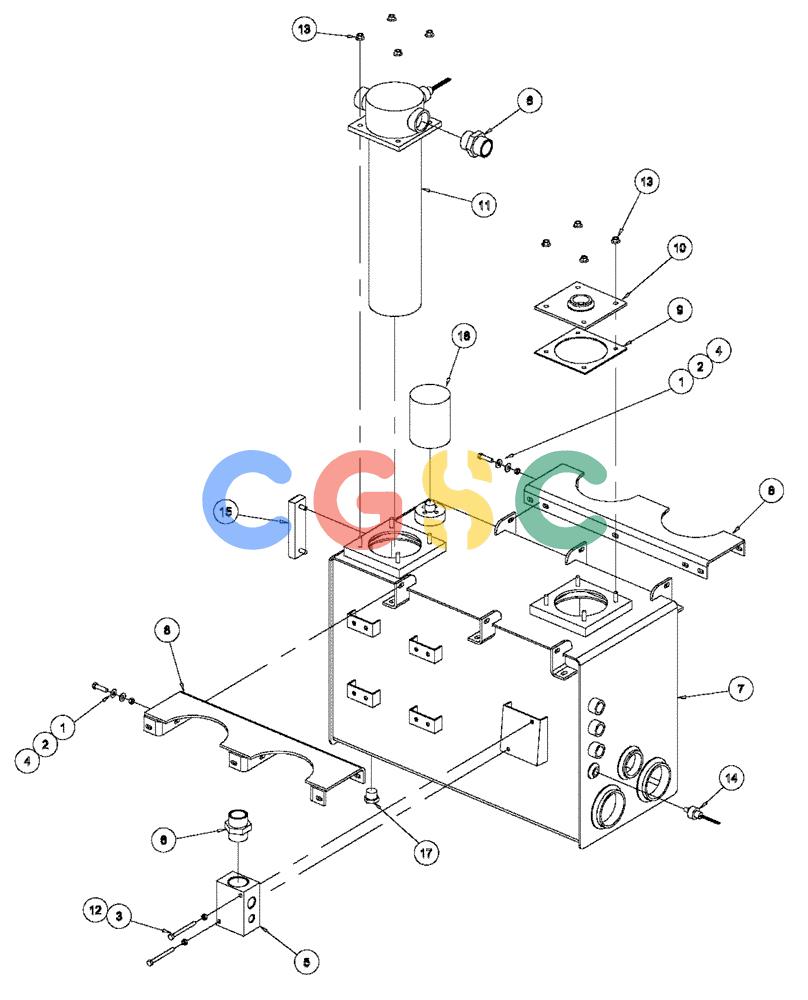

凯斯零件查询(4375) - TITAN FLOATER (5/98-8/99) (06-003) - HYDRAULIC TANK GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
717 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN300393
|
[12] |
NUT
|
BN
M10-1.5, FLN, 10.9 Superseded by part number: 100037
|
| 2. |
BN300499
|
[24] |
WASHER,M10, 10.9
|
BN
Superseded by part number: 896-11010
|
| 3. |
BN301316
|
[2] |
M8-1.25 X 90, HH, 10.9
|
|
| 4. |
86624978
|
[12] |
BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd
|
ZED
|
| 5. |
BN302877
|
[1] |
MANIFOLD
|
BN
Oil Return
|
| 6. |
BN302898
|
[2] |
FITTING
|
BN
24Mor-24Mb
|
| 7. |
BN302916
|
[1] |
RESERVOIR, HYDRAULIC
|
BN
HYD.
|
| 8. |
BN302957
|
[2] |
HYD. Tank
|
|
| 9. |
BN302982
|
[1] |
GASKET,3.17mm Thk
|
BN
Cover Plate
|
| 10. |
BN302991
|
[1] |
COVER
|
BN
Cleanout
|
| 11. |
87270936
|
[1] |
FILTER
|
BN
Intank, SAE 24, 6ABS
|
| 12. |
BN304315
|
[2] |
NUT
|
BN
M8-1.25, FLN, 10.9 Superseded by part number: 832-46408
|
| 13. |
BN50061
|
[8] |
LOCK NUT
|
BN
3/8"-16, G5, UNC, Whiz Superseded by part number: 231-4146
|
| 14. |
BN53951
|
[1] |
THERMOSTATIC SWITCH
|
CUR
N.C.180 Degree
|
| 15. |
BN53957
|
[1] |
GAUGE
|
BN
Sight W/Temperature
|
| 16. |
BN53958
|
[1] |
BREATHER
|
BN
Spin On, Breather
|
| 17. |
9841223
|
[1] |
PLUG,1-1/16" - 12 ORB
|
BEL
|
| 18. |
BN302983
|
[1] |
SWITCH
|
BN
Level Assembly
|
