| . . | YN12B00835F1 | [1] | Group (hd) | |
| . . | YN12B00760F1 | [1] | Group (See Fig No.580-02-1,2) | |
| . . | YN12B00673F1 | [1] | Group (auto Greaser) | |

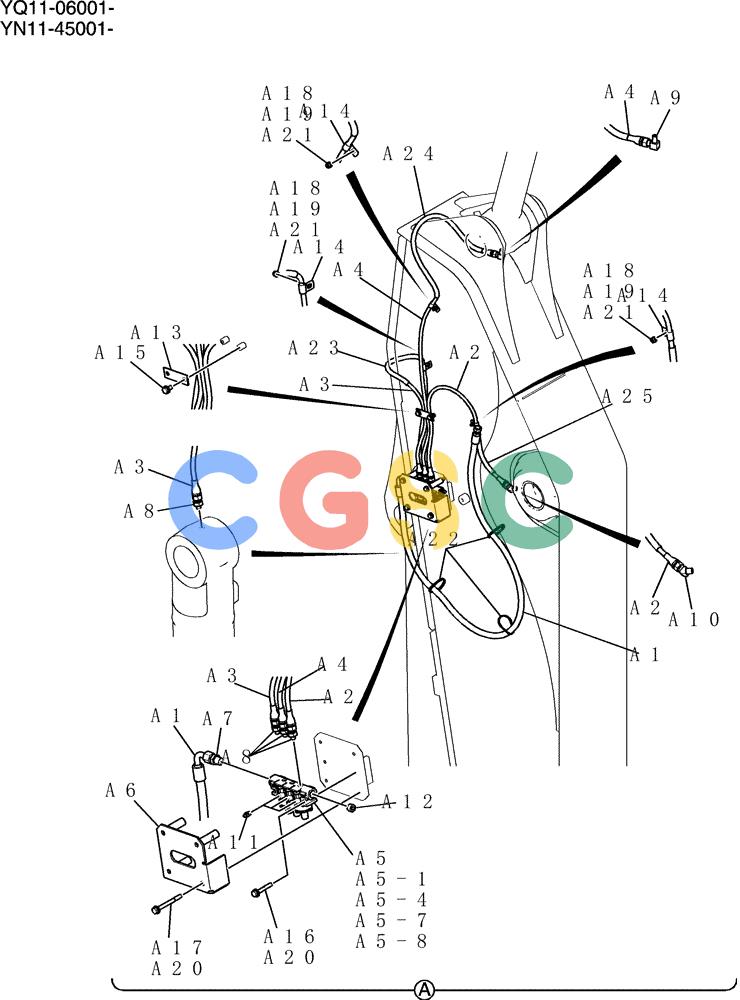

| A1. | ZX35M06165 | [1] | HOSE | KOB |
| A2. | 2420R349D086 | [1] | HOSE | KOB Superseded by part number: HX21E04086DX |
| A3. | 2420R349D110 | [1] | HOSE,1100.00 mm | KOB Superseded by part number: HX21E04110DX |
| A4. | 2420R349D135 | [1] | HOSE,6.35mm ID x 1350mm L | KOB |
| A5. | 2479P2281D3 | [1] | DISTRIBUTOR | KOBAssy |
| A5-1. | 2479P2281S1 | [3] | ELEMENT | KOB |
| A5-4. | 2479P2281S4 | [1] | BOLT | KOBAssy |
| A5-7. | 2479P2281S7 | [3] | CAP | KOB |
| A5-8. | ZD12P01090 | [4] | O-RING | KOB |
| A6. | LC12B01521P1 | [1] | COVER | KOB |
| A7. | ZH22Z06000 | [1] | CONNECTION | KOB |
| A8. | 2444Z2002 | [4] | HYD CONNECTOR | KOB |
| A9. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| A10. | ZH42Z04000 | [1] | ELBOW | KOB |
| A11. | 2444T4678 | [3] | LUBE NIPPLE | KOB |
| A12. | ZE82T06000 | [1] | PLUG | KOB |
| A13. | LC12B01523P1 | [1] | PLATE | KOB |
| A14. | ZC46X10009 | [3] | CLIP,10.1mm | KOB |
| A15. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBSems |
| A16. | ZS18C08050 | [2] | SCREW,Hex, M8 x 50mm | KOBCap |
| A17. | ZS18C08080 | [4] | SCREW,Hex, M8 x 80mm | KOBCap |
| A18. | ZN18C06005 | [3] | NUT | KOB |
| A19. | ZW26X06000 | [3] | LOCK WASHER | KOB |
| A20. | ZW16H08000 | [6] | WASHER | KOB |
| A21. | ZW16P06000 | [3] | WASHER | KOB |
| A22. | PY01P01043D3 | [3] | CABLE TIE,188mm L | KOB |
| A23. | 2418R676D4 | [1] | TUBE | KOB |
| A24. | 2418R676D11 | [1] | TUBE | KOB |
| A25. | 2418R676D13 | [1] | HYD TUBE | KOB |
| . . | YN12B00810F1 | [1] | Instal, Serial Range: YQ11-06001-YQ11-06123 | |
| . . | YN12B00968F1 | [1] | Instal, Start Serial: YQ11-06124 | |
| . . | YN12B00737F1 | [1] | Instal (Arm Foot Pin), Serial Range: YQ11-06001-YQ11-06123 | |
| . . | YN12B00914F1 | [1] | Instal (Arm Foot Pin), Start Serial: YQ11-06124 | |
| C1. | YN12B02094P1 | [1] | PIN | KOB, Serial Range: YQ11-06001-YQ11-06123 Superseded by part number: YN12B02415P1 |
| . . | YN12B02415P1 | [1] | PIN,90mm OD x 519mm L | KOB, Start Serial: YQ11-06124 |
| C2. | YN02B01414D1 | [2] | SHIM,92mm ID x 160mm OD x 2mm Thk | KOB(2.0) |
| C3. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOB(0.5) |
| C4. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOB(0.9) |
| . . | YN12B00811F1 | [1] | Instal (Arm Cyl Rod Pin) | |
| D1. | YN02B01722P1 | [1] | PIN,85mm OD x 277mm L | KOB |
| D2. | HS18C16150G2 | [1] | SCREW | KOBCap |
| D3. | ZN18C16013 | [2] | NUT | KOB |
| D4. | YN02B01415D1 | [2] | SHIM,87mm ID x 150mm OD x 2mm Thk | KOB(2.0) |
| D5. | B16T0442D78 | [1] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOB(0.5) |
| D6. | B16T0442D77 | [1] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOB(0.9) |
| D7. | B16T0442D62 | [1] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOB(1.6) |
| . . | YN12B00812F1 | [1] | ARM | KOBInstal (Arm Foot Lock Plate) |
| E1. | YN12B02109P1 | [1] | PLATE | KOB |
| E2. | ZS18C14030 | [2] | SCREW,Hex, M14 x 30mm | KOBCap |
| E3. | ZW16H14000 | [2] | WASHER | KOB |
| . . | YN12B10072F1 | [1] | | |
| B1. | YN12B10073F1 | [1] | ARM | KOB(See Fig No.866-02-1) |
| B2. | 2445R220D4 | [2] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust Superseded by part number: 84499640 |
| B3. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust |
| B4. | 2445R138D8 | [2] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust |
