神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (866-02-1) - ARM ASSY, 2.94M (9FT 8IN) (HD) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
766 次

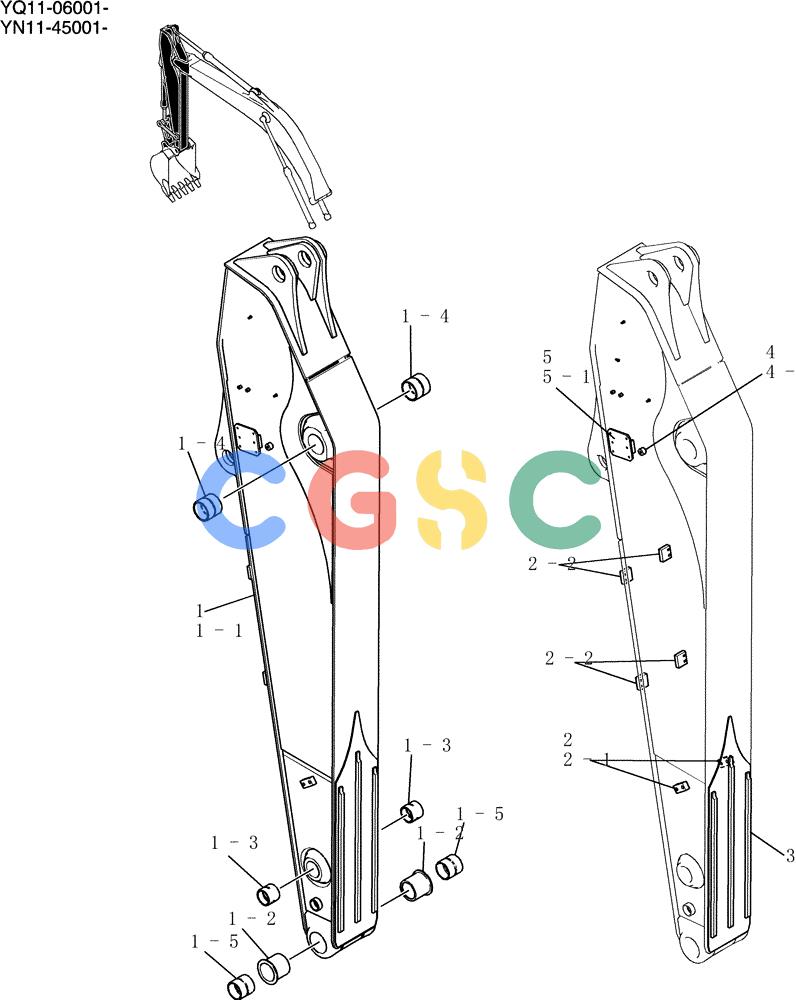

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN12B10073F1 | [1] | ARM | KOB2.94m |
| 1. | YN12B00757F1 | [1] | ARM | KOB(std:base) |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CONArm |
| 1-2. | YN12B02285P1 | [2] | BUSHING,89mm ID x 130mm OD x 100mm L | KOB |
| 1-3. | YN12B02102P1 | [2] | BUSHING,70mm ID x 85mm OD x 69mm L | KOB |
| 1-4. | YN12B02137P1 | [2] | BUSHING,90mm ID x 105mm OD x 89mm L | KOB |
| 1-5. | YN12B01943P1 | [2] | BUSHING,80mm ID x 95mm OD x 89mm L | KOB |
| 2. | YN12B00742P1 | [1] | (Nibbler & Breaker) | |
| 2-1. | YN12B02417P1 | [2] | BLOCK | KOBTapped |
| 2-2. | YN12B02026P1 | [4] | BLOCK | KOBTapped |
| 3. | YN12B00786P1 | [1] | (Reinforcement Plate) | |
| 4. | YN12B00741P1 | [1] | ARM | KOB(High Reach) |
| 4-1. | 2416T4194 | [1] | BLOCK | KOBTapped |
| 5. | YN12B00740P1 | [1] | (Auto Greaser) | |
| 5-1. | LC12B01518P1 | [1] | BRACKET | KOB |
