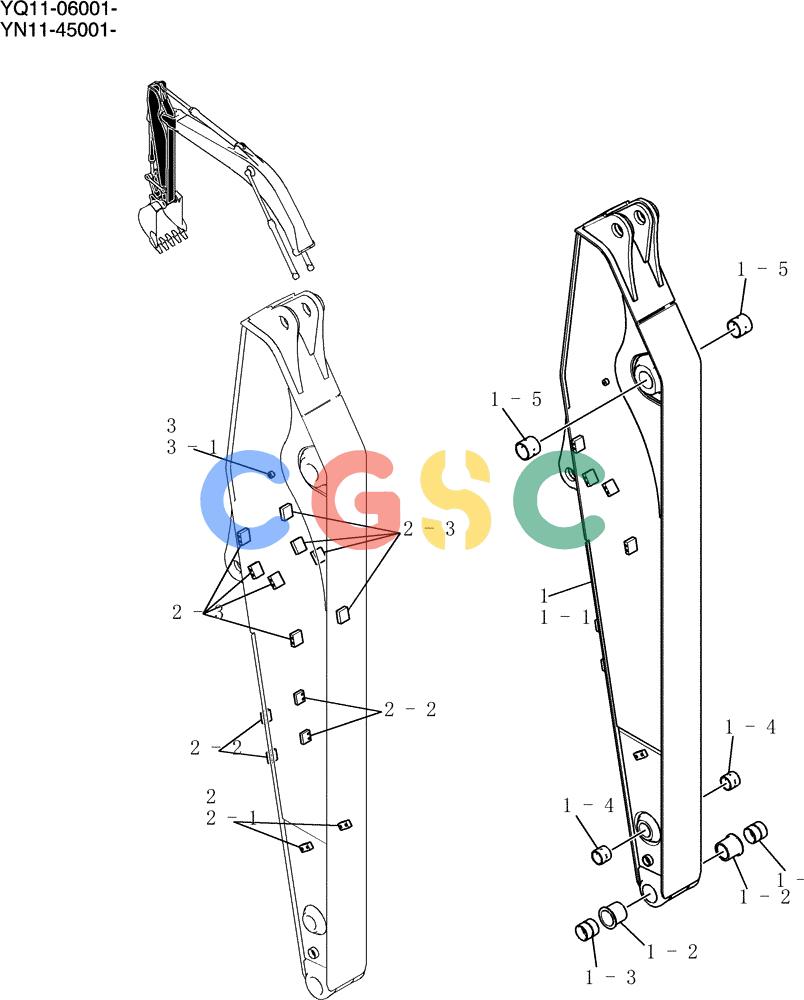

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (867-01-1) - ARM ASSY, LONG 3.5M (10FT 6IN) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
196 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN12B00845F1 | [1] | ASSY, LONG 3.5M, Serial Range: YQ11-06001-YQ11-06302 | |
| . . | YN12B00977F1 | [1] | ARM | KOBASSY, LONG 3.5M, Start Serial: YQ11-06303 |
| 1. | YN12B00787F1 | [1] | ARM | KOBASSY, LONG |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CONARM, LONG |
| 1-2. | YN12B02285P1 | [2] | BUSHING,89mm ID x 130mm OD x 100mm L | KOB |
| 1-3. | YN12B01943P1 | [2] | BUSHING,80mm ID x 95mm OD x 89mm L | KOB |
| 1-4. | YN12B02102P1 | [2] | BUSHING,70mm ID x 85mm OD x 69mm L | KOB |
| 1-5. | YN12B02137P1 | [2] | BUSHING,90mm ID x 105mm OD x 89mm L | KOB |
| 2. | YN12B00742P1 | [1] | LONG (NIBBLER & BREAKER), Serial Range: YQ11-06001-YQ11-06302 | |
| . . | YN12B00978P1 | [1] | LONG (NIBBLER & BREAKER), Start Serial: YQ11-06303 | |
| 2-1. | YN12B02417P1 | [2] | BLOCK | KOBTapped |
| 2-2. | YN12B02026P1 | [4] | BLOCK | KOBTapped |
| 2-3. | YN02B01616P1 | [8] | BLOCK | KOBTapped |
| 3. | YN12B00741P1 | [1] | ARM | KOB(HIGH REACH) |
| 3-1. | 2416T4194 | [1] | BLOCK | KOBTapped |
