神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (870-01-1) - HYD LINES, ARM 2.4M (7FT 11IN) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
854 次

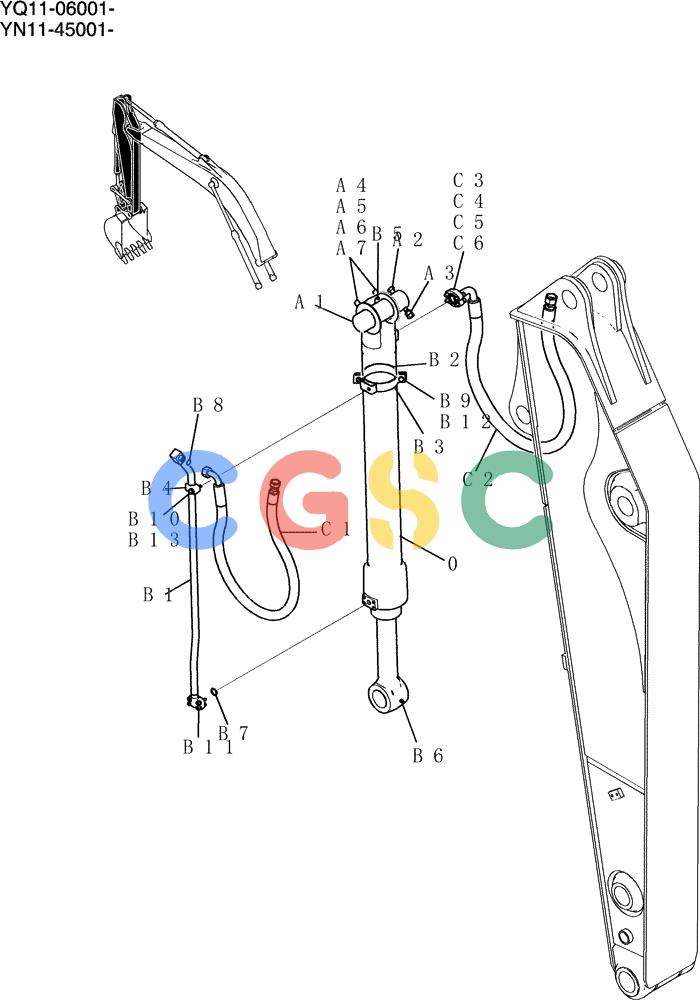

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN12B00801F1 | [1] | Instal | |
| 0. | YN01V00153F1 | [1] | HYDRAULIC CYLINDER | KOBAssy, Bucket |
| . . | YN01V00153F1R | [1] | REMAN-HYD CYLINDER | KOBSK210LC-8, SK210DLC-8, BOTH S/N YQ11-06001 -, 200-8, SK210D-8, BOTH S/N YN11-45001 -, ALL EXCAVATOR |
| . . | YN01V00153F1C | [1] | CORE-HYD CYLINDER | KOBReturn Number |
| . . | YN12B00654F1 | [1] | Instal | |
| A1. | YN12B02218P1 | [1] | PIN,80mm OD x 252mm L | KOB |
| A2. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBCap |
| A3. | ZN18C16013 | [2] | NUT | KOB |
| A4. | YN12B01601D1 | [2] | SHIM,82mm ID x 140mm OD x 2mm Thk | KOB(2.0) |
| A5. | YN12B01122D1 | [1] | SHIM,82mm ID x 140mm OD x 0.5mm Thk | KOB(0.5) |
| A6. | YN12B01122D2 | [1] | SHIM,82mm ID x 140mm OD x 0.9mm Thk | KOB(0.9) |
| A7. | YN12B01122D3 | [1] | SHIM,82mm ID x 140mm OD x 1.6mm Thk | KOB(1.6) |
| . . | YN43H00167F1 | [1] | Hyd, Cylinder | |
| B1. | YN43H01572P1 | [1] | TUBE,27.2 mm OD x 1262.5, 65 mm Length | KOB |
| B2. | YX42H01074P2 | [1] | BAND | KOB |
| B3. | YN43H01639P1 | [1] | BAND | KOB |
| B4. | YN43H01097P1 | [1] | CLAMP | KOB |
| B5. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| B6. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| B7. | ZD12P02600 | [1] | O-RING | KOB |
| B8. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| B9. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBCap |
| B10. | ZS18C10055 | [1] | SCREW,Hex, M10 x 55mm | KOBCap |
| B11. | ZS28C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBCap |
| B12. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| B13. | ZW16H10000 | [1] | WASHER | KOB |
| . . | YN43H00177F1 | [1] | Hyd, Arm | |
| C1. | ZX60H12155 | [1] | HOSE | KOB |
| C2. | YN43H01576D2 | [1] | HOSE,L = 1800mm | KOB |
| C3. | ZE13X16000 | [2] | FLANGE | KOBClamp, Half |
| C4. | ZS28C12040 | [4] | SCREW,Hex Socket Head, M12 x 40mm | KOBCap |
| C5. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| C6. | ZW26K12000 | [4] | LOCK WASHER | KOB |
