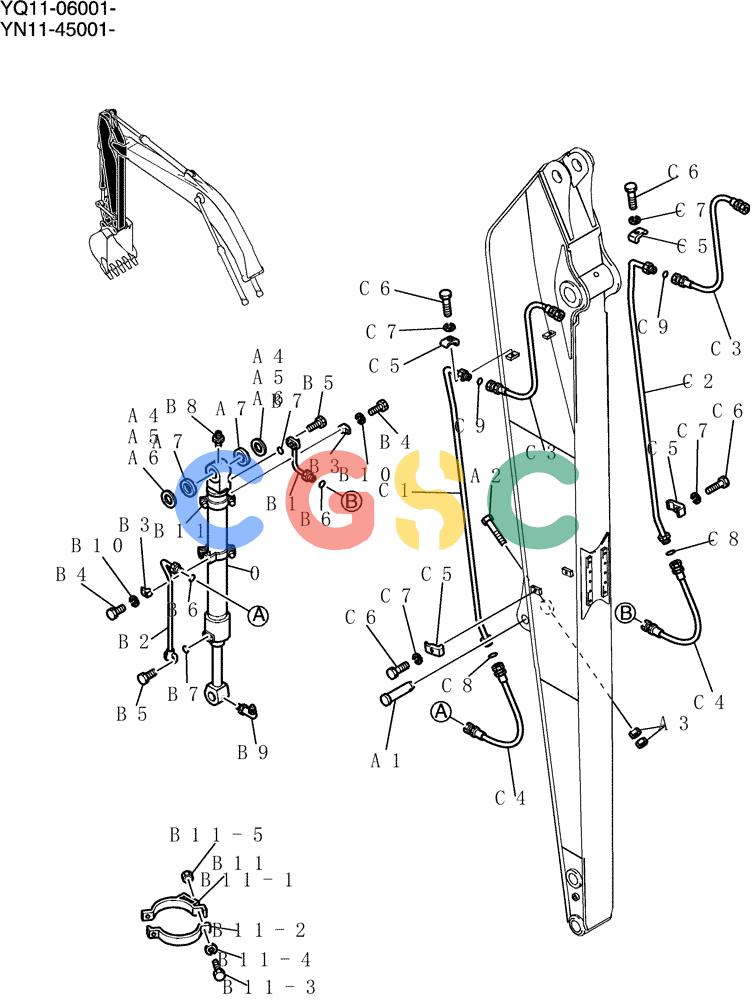

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (886-01-1) - HYD LINES, ARM 4.93M (16FT 2IN) (40FT LONG RANGE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
147 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN12B00949F1 | [1] | Cylinder Instal | |
| 0. | YX01V00005F6 | [1] | CYLINDER,Double Acting, 65mm Rod, 885mm Stroke | KOBAssy, Bucket |
| . . | YX01V00005F6R | [1] | REMAN-HYD CYLINDER | RACSK210D-8, 200-8, BOTH S/N YN11-45001 -, SK210DLC-8 S/N YQ11-06001 - |
| . . | YX01V00005F6C | [1] | CORE-HYD CYLINDER | RACReturn number |
| . . | YY12B00126F1 | [1] | Cylinder Instal | |
| A1. | YY12B01296P1 | [1] | PIN | KOB |
| A2. | HS18C12115G2 | [1] | SCREW,M12 x 115mm, Cl 10.9 | KOBCap |
| A3. | ZN18C12010 | [2] | NUT | KOB |
| A4. | B16T0442D56 | [1] | SHIM,62mm ID x 100mm OD x 0.5mm Thk | KOB(0. 5) |
| A5. | B16T0442D43 | [1] | SHIM,62mm ID x 100mm OD x 0.9mm Thk | KOB(0. 9) |
| A6. | B16T0442D19 | [1] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOB(1. 6) |
| A7. | YN12B01610D1 | [2] | SHIM | KOB(2. 0) |
| . . | YN43H00009F1 | [1] | LINE | KOBHyd Lines, Cylinder |
| B1. | YN43H01034P2 | [1] | TUBE,21.7 mm OD x 315, 145 mm Length | KOB |
| B2. | YN43H01035P2 | [1] | TUBE,21.7 mm OD x 741, 145 mm Length | KOB |
| B3. | YW43H01049P1 | [2] | CLAMP | KOB |
| B4. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBCap |
| B5. | 2420N458D10030 | [8] | SCREW,Hex Socket Head, M10 x 30mm | KOBCap Superseded by part number: ZS28C10030 |
| B6. | ZD12A01600 | [2] | O-RING | KOB |
| B7. | ZD12P02600 | [2] | O-RING | KOB |
| B8. | 2444Z2002 | [1] | HYD CONNECTOR | KOB |
| B9. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| B10. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| B11. | YW43H01080F1 | [1] | BAND | KOBAssy |
| B11-1. | YW43H01081P1 | [1] | BAND | KOB |
| B11-2. | YW43H01082P1 | [1] | BAND | KOB |
| B11-3. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBCap |
| B11-4. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| B11-5. | ZN18C10008 | [2] | NUT | KOB |
| . . | YN43H00022F1 | [1] | Hyd Lines, Arm | |
| C1. | YN43H01102P1 | [1] | HYD TUBE | KOBTube |
| C2. | YN43H01101P1 | [1] | HYD TUBE | KOBTube |
| C3. | 2444R2491D1 | [2] | HOSE,1550.00 mm | KOB |
| C4. | LP12B01020D2 | [2] | HOSE | KOB |
| C5. | ZC26X22011 | [4] | CLAMP | KOB |
| C6. | ZS18C10045 | [4] | SCREW,Hex, M10 x 45mm | KOB |
| C7. | ZW26X10000 | [4] | LOCK WASHER | KOB |
| C8. | ZD12A01600 | [2] | O-RING | KOB |
| C9. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
