神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (934-01-1) - BUCKET ASSY, 1. 05M3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
172 次

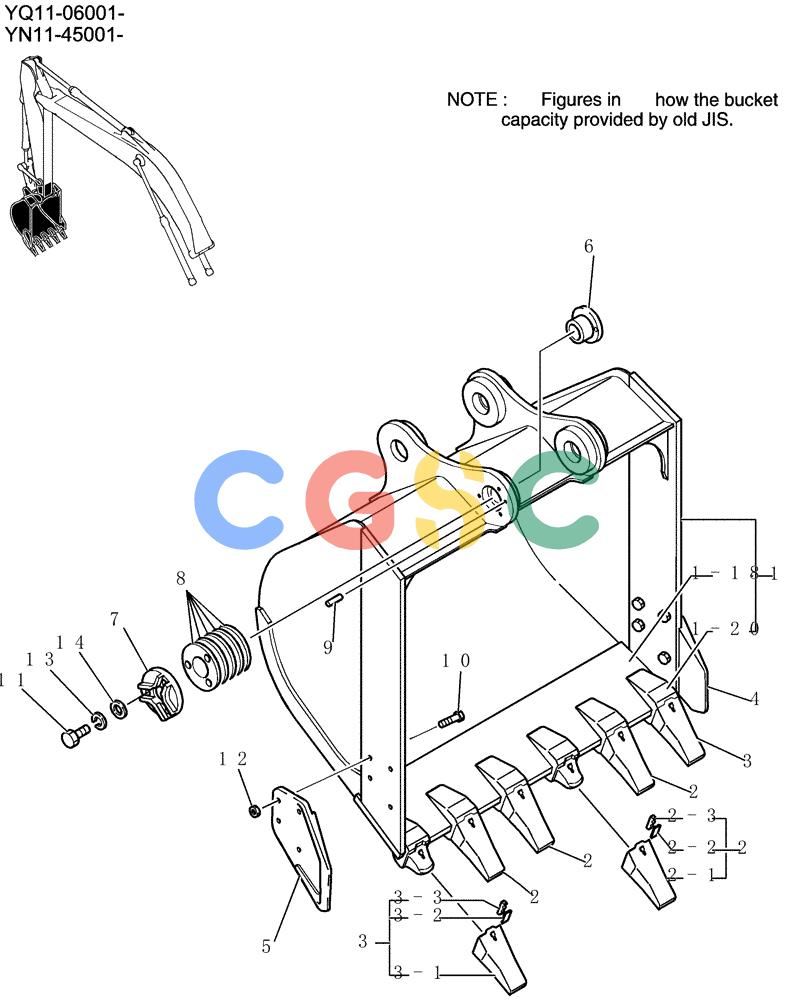

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN61B00289F1 | [1] | 1.05m3 | |
| . . | YN61B00159F1 | [1] | 1.05m3 | |
| 1. | YN61B00162P1 | [1] | BUCKET | KOB |
| 1-18. | YN69B01048D4 | [1] | CUTTING EDGE | KOBCutting |
| 1-20. | YN61B01011P1 | [6] | ADAPTER | KOB |
| 2. | B12N0006F1 | [4] | TOOTH | KOBAssy |
| 2-1. | B12N0006E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12N0006E2 | [1] | LOCK PIN | KOBRubber Superseded by part number: B12N0006E2MK |
| 2-3. | B12N0006E3 | [1] | PIN | KOBLocking Superseded by part number: 2412Z163K |
| 3. | 2412U113F1 | [2] | TOOTH | KOBAssy |
| 3-1. | 2412U113S1 | [1] | POINT | KOBTooth |
| 3-2. | B12N0006E2 | [1] | LOCK PIN | KOBRubber Superseded by part number: B12N0006E2MK |
| 3-3. | B12N0006E3 | [1] | PIN | KOBLocking Superseded by part number: 2412Z163K |
| 4. | 2412N289D11 | [1] | BLADE | KOBCutter, Side Superseded by part number: YN69B00006P1 |
| 5. | 2412N289D21 | [1] | BLADE | KOBCutter, Side Superseded by part number: YN69B00007P1 |
| 6. | YB61B01003P1 | [1] | BUSHING | KOB |
| 7. | YB61B01005P1 | [1] | PLATE | KOB |
| 8. | YB61B01004P1 | [5] | SHIM | KOB(1.0) |
| 9. | 2419T3747D2 | [1] | PIN | KOB |
| 10. | ZS13C24070 | [8] | SCREW | KOBCap |
| 11. | ZS13C16050 | [3] | SCREW | KOBCap |
| 12. | ZN13C24019 | [8] | NUT | KOB |
| 13. | ZW22X16000 | [3] | WASHER, LOCK | KOB |
| 14. | YB61B01007P1 | [3] | WASHER | KOB |
