神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (935-01-1) - BUCKET ASSY, 1. 3M3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
328 次

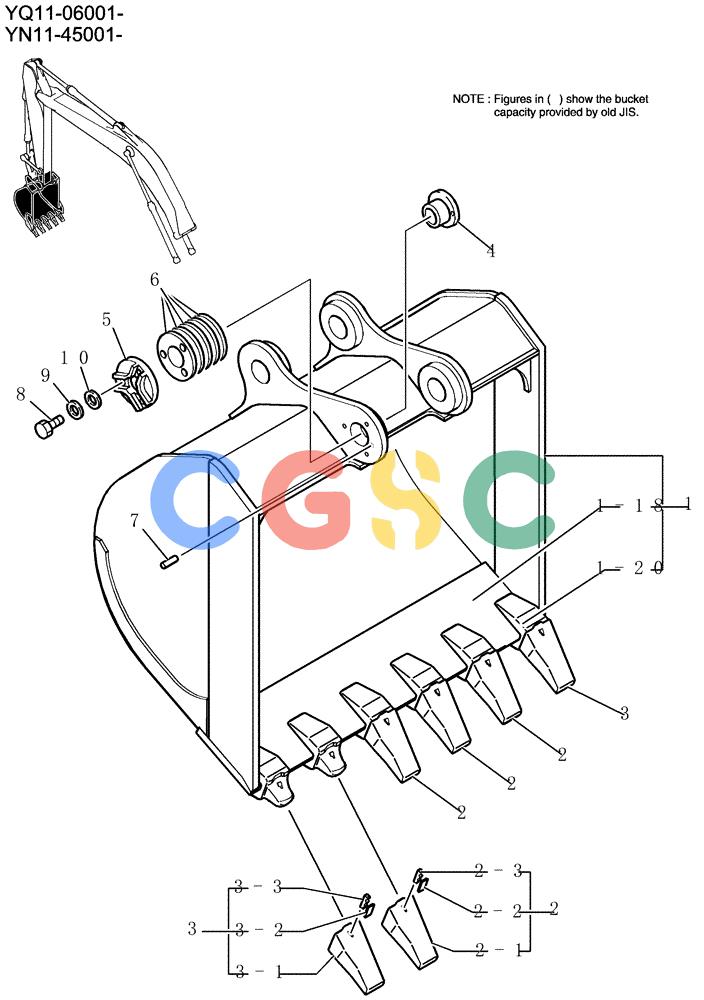

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN61B00297F1 | [1] | 1.3m3 | |
| . . | YN61B00298F1 | [1] | 1.3m3 | |
| 1. | YN61B00299P1 | [1] | BUCKET | KOB |
| 1-18. | YN69B01001DA | [1] | CUTTING EDGE | KOBCutting |
| 1-20. | YN61B01011P1 | [6] | ADAPTER | KOB |
| 2. | B12N0006F1 | [4] | TOOTH | KOBAssy |
| 2-1. | B12N0006E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12N0006E2 | [1] | LOCK PIN | KOBRubber Superseded by part number: B12N0006E2MK |
| 2-3. | B12N0006E3 | [1] | PIN | KOBLocking Superseded by part number: 2412Z163K |
| 3. | 2412U113F1 | [2] | TOOTH | KOBAssy |
| 3-1. | 2412U113S1 | [1] | POINT | KOBTooth |
| 3-2. | B12N0006E2 | [1] | LOCK PIN | KOBRubber Superseded by part number: B12N0006E2MK |
| 3-3. | B12N0006E3 | [1] | PIN | KOBLocking Superseded by part number: 2412Z163K |
| 4. | YB61B01003P1 | [1] | BUSHING | KOB |
| 5. | YB61B01005P1 | [1] | PLATE | KOB |
| 6. | YB61B01004P1 | [5] | SHIM | KOB(1.0) |
| 7. | 2419T3747D2 | [1] | PIN | KOB |
| 8. | ZS13C16050 | [3] | SCREW | KOBCap |
| 9. | ZW16H16000 | [3] | WASHER | KOB |
| 10. | YB61B01007P1 | [3] | WASHER | KOB |
