神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (937-01-1) - BUCKET ASSY, 0. 7M3 (40FT LONG RANGE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
278 次

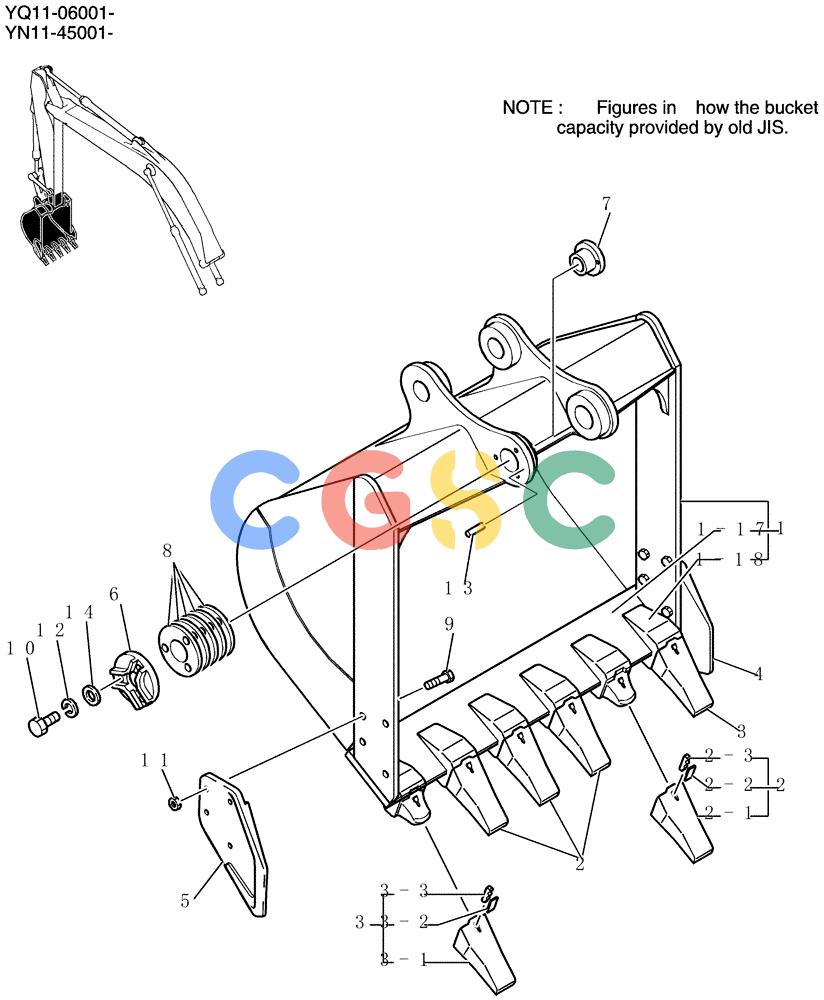

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN61B00292F1 | [1] | 0.7m3 | |
| . . | YN61B00193F1 | [1] | 0.7m3 | |
| 1. | YN61B00194P1 | [1] | BUCKET | KOB |
| 1-17. | YN69B01020D3 | [1] | CUTTING EDGE | KOBCutting |
| 1-18. | LP61B01013P1 | [6] | BUCKET TOOTH SHANK | KOBADAPTER |
| 2. | 2412U16F1 | [4] | TOOTH | KOBAssy |
| 2-1. | 2412U16S1 | [1] | BUCKET TOOTH POINT | KOBTooth |
| 2-2. | B12P0015E2 | [1] | PIN | KOBLocking Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOBRubber Superseded by part number: B12P0015E3MK |
| 3. | 2412U112F1 | [2] | TOOTH | KOB |
| 3-1. | 2412U112S1 | [1] | BUCKET TOOTH POINT | KOB |
| 3-2. | B12P0015E2 | [1] | PIN | KOBLocking Superseded by part number: 2412Z162K |
| 3-3. | B12P0015E3 | [1] | LOCK PIN | KOBRubber Superseded by part number: B12P0015E3MK |
| 4. | 2412N278D11 | [1] | BLADE | KOB |
| 5. | 2412N278D21 | [1] | BLADE | KOB |
| 6. | YY61B01008P1 | [1] | PLATE | KOB |
| 7. | YY61B01002P1 | [1] | BUSHING | KOB |
| 8. | YY61B01006P1 | [5] | SHIM | KOB(1.0) |
| 9. | ZS13C20050 | [8] | SCREW | KOBCap |
| 10. | ZS18C14040 | [3] | SCREW,Hex, M14 x 40mm | KOB |
| 11. | ZN13C20016 | [8] | NUT | KOB |
| 12. | ZW22X14000 | [3] | LOCK WASHER | KOB Superseded by part number: ZW26X14000 |
| 13. | 2419T3772D2 | [1] | RIGID TUBE | KOBPin |
| 14. | YY61B01010P1 | [3] | WASHER | KOB |
