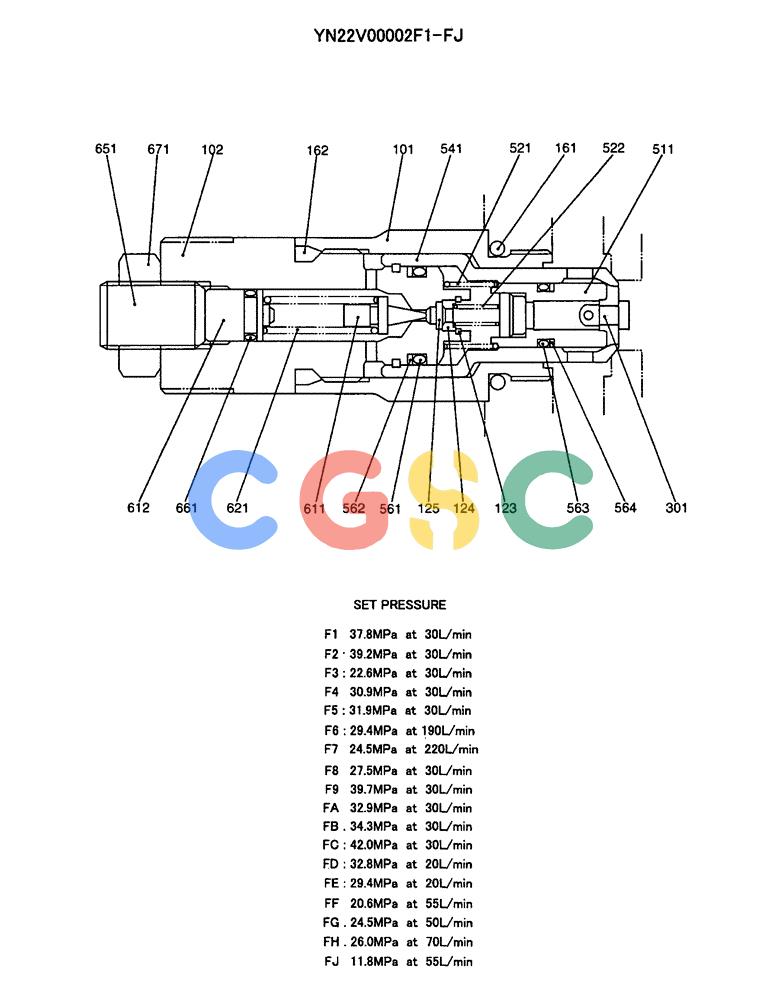

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC015-01-1) - VALVE ASSY, PORT RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
266 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00002F1 | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002F2 | [1] | VALVE PRESSURE RELIE | KOBAssy, Port |
| . . | YN22V00002F3 | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002F4 | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002F5 | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002F6 | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002F7 | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002F8 | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002F9 | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002FA | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002FB | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002FC | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002FD | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002FE | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002FF | [1] | VALVE | KOBAssy, Port Relief |
| . . | YN22V00002FG | [1] | VALVE | KOBValve Assy, Port Relief |
| . . | YN22V00002FH | [1] | VALVE | KOBValve Assy, Port Relief |
| . . | YN22V00002FI | [1] | Valve Assy, Port Relief | |
| . . | YN22V00002FJ | [1] | VALVE | KOBValve Assy, Port Relief |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 123. | NSS | [1] | NOT SOLD SEPARAT | CONRing |
| 124. | NSS | [1] | NOT SOLD SEPARAT | CONStopper |
| 125. | NSS | [1] | NOT SOLD SEPARAT | CONFilter |
| 161. | ZD12P02400 | [1] | O-RING | KOB |
| 162. | ZD12P02240 | [1] | O-RING | KOB |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONPiston |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPlunger |
| 521. | YN22V00001S521 | [1] | SPRING | KOB |
| 522. | YN22V00002S522 | [1] | SPRING | KOB |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONSeat |
| 561. | YN22V00001S561 | [1] | O-RING | KOB Superseded by part number: HD16P01600G1 |
| 562. | YN22V00001S562 | [1] | BACK-UP RING | KOB |
| 563. | YN22V00002S563 | [1] | O-RING | KOB Superseded by part number: HD16P01000G1 |
| 564. | YN22V00002S564 | [1] | RING | KOBBack Up |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONPoppet |
| 612. | YN22V00002S612 | [1] | SPRING SEAT | KOB |
| 621. | 2436R750S512 | [1] | SPRING | KOB |
| 651. | YN22V00002S651 | [1] | ADJUSTMENT SCREW | KOB |
| 661. | ZD12P00800 | [1] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 671. | YN22V00001S671 | [1] | LOCK NUT | KOB |
