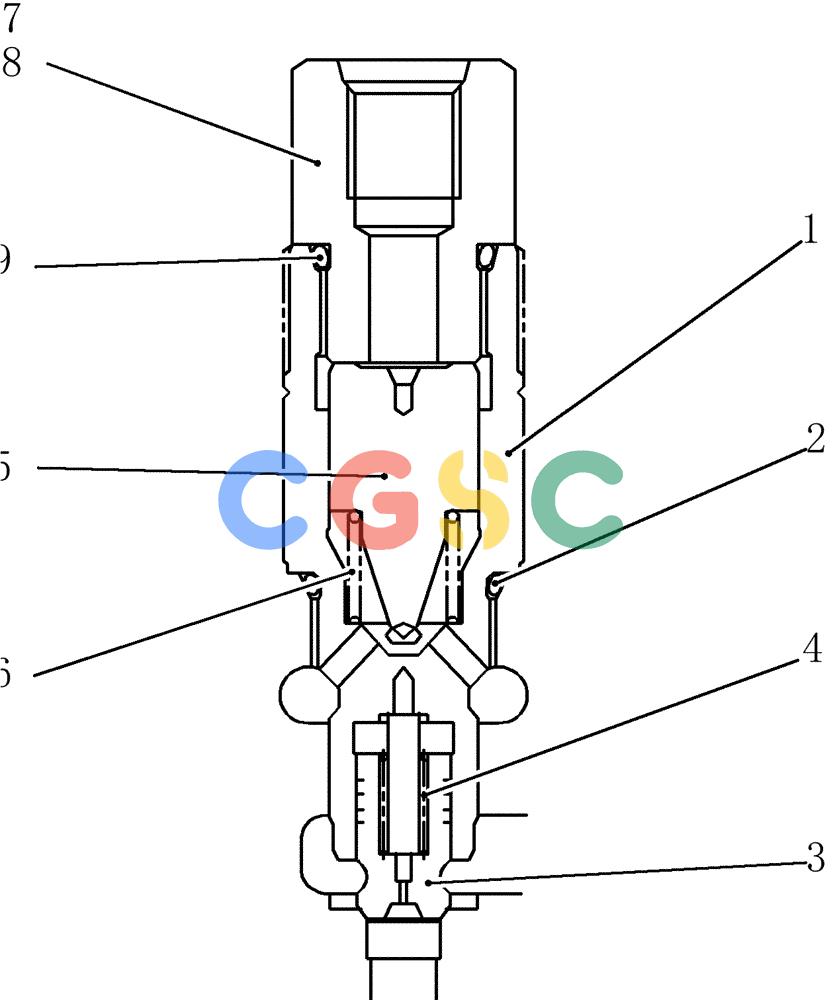

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC018-01-1) - VALVE ASSY, BYPASS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
559 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00120F2 | [1] | VALVE | KOBAssy, Bypass |
| 1. | YN30V00120S101 | [1] | PLUG | KOB |
| 2. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 3. | YN30V00120S201 | [1] | POPPET | KOB |
| 4. | YN30V00120S202 | [1] | SPRING | KOB |
| 5. | YN30V00120S301 | [1] | POPPET | KOB |
| 6. | YN30V00120S302 | [1] | SPRING | KOB |
| 7. | YN30V00120S401 | [1] | PLUG | KOB |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 9. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| K. | YN30V00120R100 | [1] | REPAIR KIT | KOBConsists Of Ref. 5X1, 8X1, 9X1 |
