神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC022-62-1) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
325 次

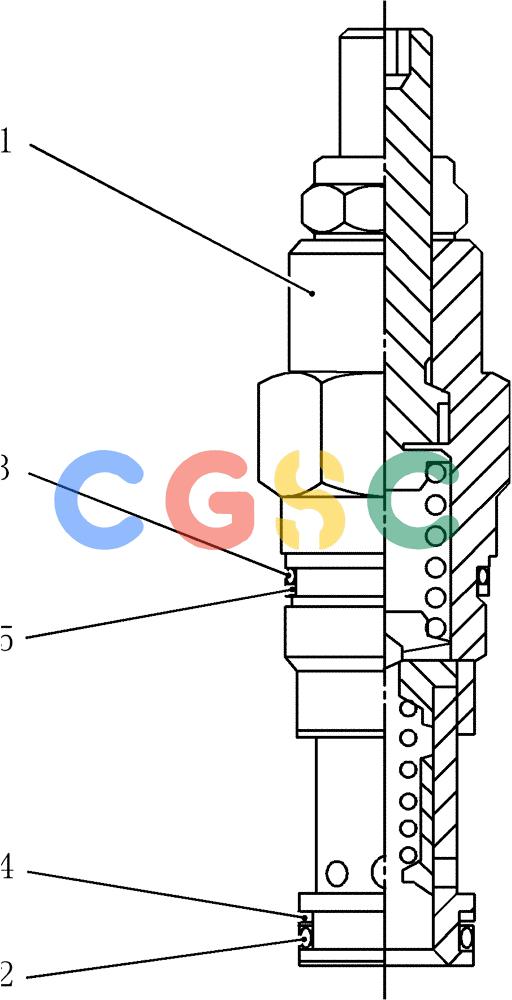

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00040F2 | [1] | HYDRAULIC VALVE | SMAssy, Relief |
| . . | YN22V00040F4 | [1] | HYDRAULIC VALVE | SMAssy, Relief |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONValve, Relief |
| 2. | PY22V00007S013 | [1] | O-RING | SM |
| 3. | PY22V00007S012 | [1] | O-RING | SM Superseded by part number: PY22V00007R100 |
| 4. | PY22V00007S017 | [1] | RING | SMBack Up |
| 5. | PY22V00007S016 | [1] | RING | SMBack Up |
| K. | PY22V00007R100 | [1] | SET OF PARTS | KOBRepair Kit Consists Of Ref. 2X1, 3X1, 4X1, 5X1 |
