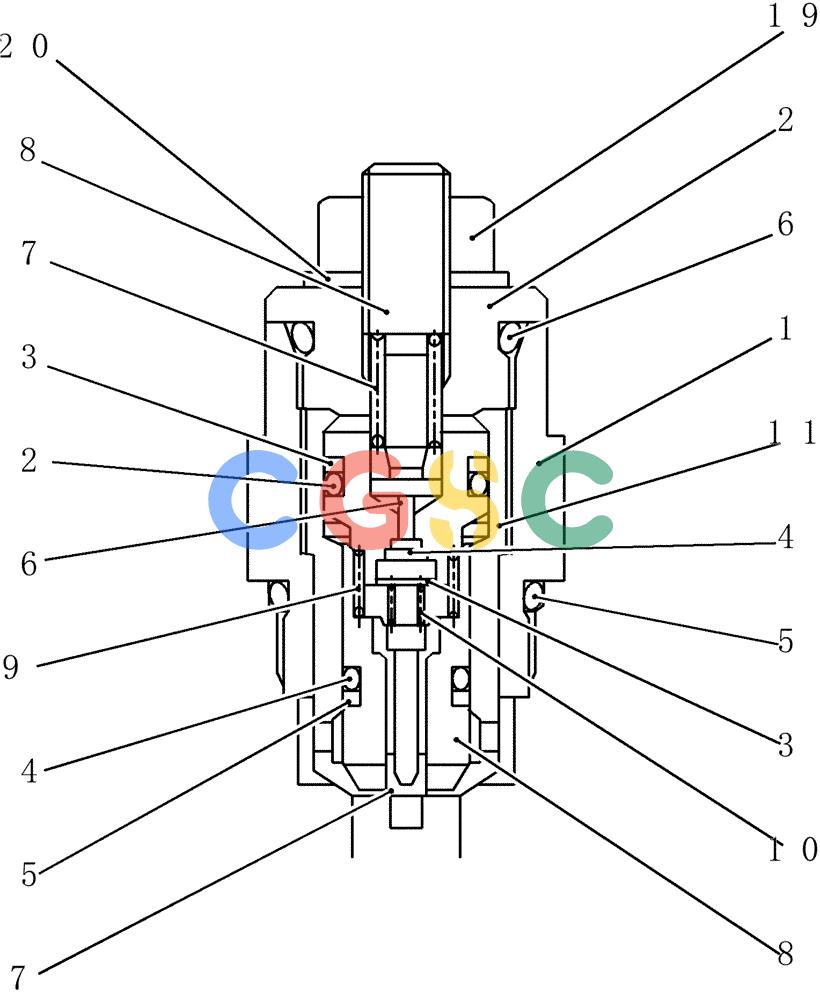

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC023-62-1) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
781 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00041F1 | [1] | HYDRAULIC VALVE | SMAssy, Relief |
| . . | YN22V00041F2 | [1] | HYDRAULIC VALVE | SMAssy, Relief |
| . . | YN22V00041F3 | [1] | HYDRAULIC VALVE | SMAssy, Relief |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONStopper |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONFilter |
| 5. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPiston |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPoppet |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONSeat |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONRing, Back Up |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONRing, Back Up |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONPoppet |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 18. | NSS | [1] | NOT SOLD SEPARAT | CONScrew |
| 19. | NSS | [1] | NOT SOLD SEPARAT | CONLock Nut |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONSeal |
