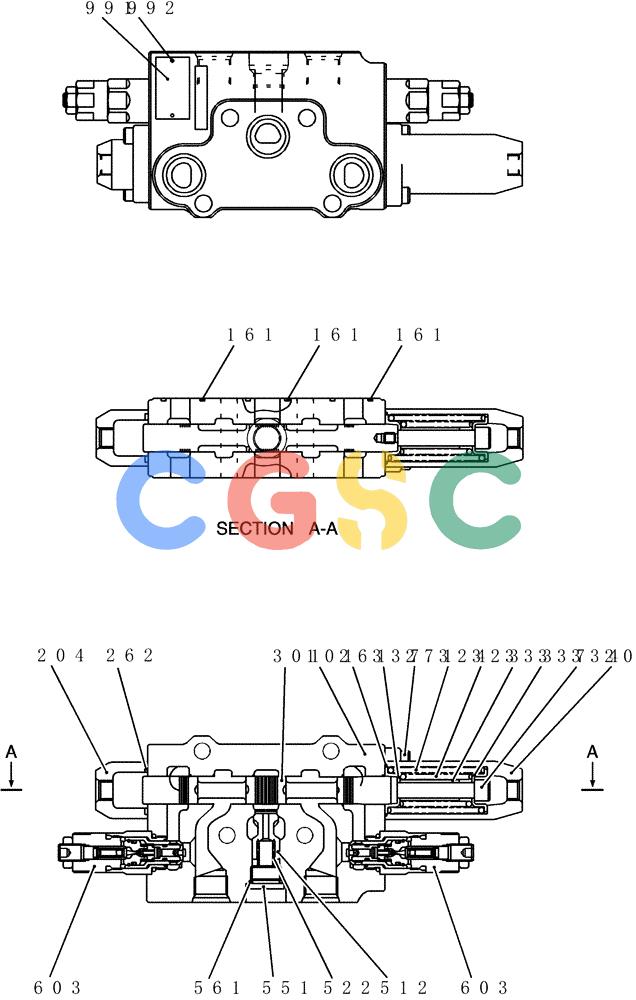

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC121-74-1) - VALVE ASSY, CONTROL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
981 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00123F1 | [1] | Control | |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCasing |
| 161. | ZD12G03000 | [3] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 202. | 2436U2631S201 | [1] | COVER | KOBSpring |
| 204. | 2436U1265S203 | [1] | COVER | KOBSpool |
| 261. | 2436U1457S162 | [1] | O-RING,2mm Thk x 39.5mm ID, 90 Duro | KOB |
| 262. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOB |
| 271. | ZS23C08025 | [4] | SCREW,Hex Socket Head, M8 x 25mm | KOBCap |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSpool |
| 323. | 2436U1265S327 | [1] | SPRING | KOB |
| 324. | 2436U1265S322 | [1] | SPRING | KOB |
| 333. | 2436U1265S335 | [1] | STOP | KOB |
| 334. | 2436U1265S336 | [1] | BOLT | KOBSpacer |
| 337. | 2436U1265S332 | [2] | SPRING SEAT | KOB |
| 512. | 2436U1197S512 | [1] | POPPET | KOB |
| 522. | 2436U1197S522 | [1] | SPRING | KOB |
| 551. | 2436U1485S552 | [1] | PLUG | KOB |
| 561. | ZD12P02200 | [1] | O-RING | KOB |
| 603. | YN22V00002F1 | [2] | VALVE | KOBAssy, Port Relief (SeeHC015) |
| 991. | NSS | [1] | NOT SOLD SEPARAT | CONName Plate |
| 992. | NSS | [2] | NOT SOLD SEPARAT | CONPin |
