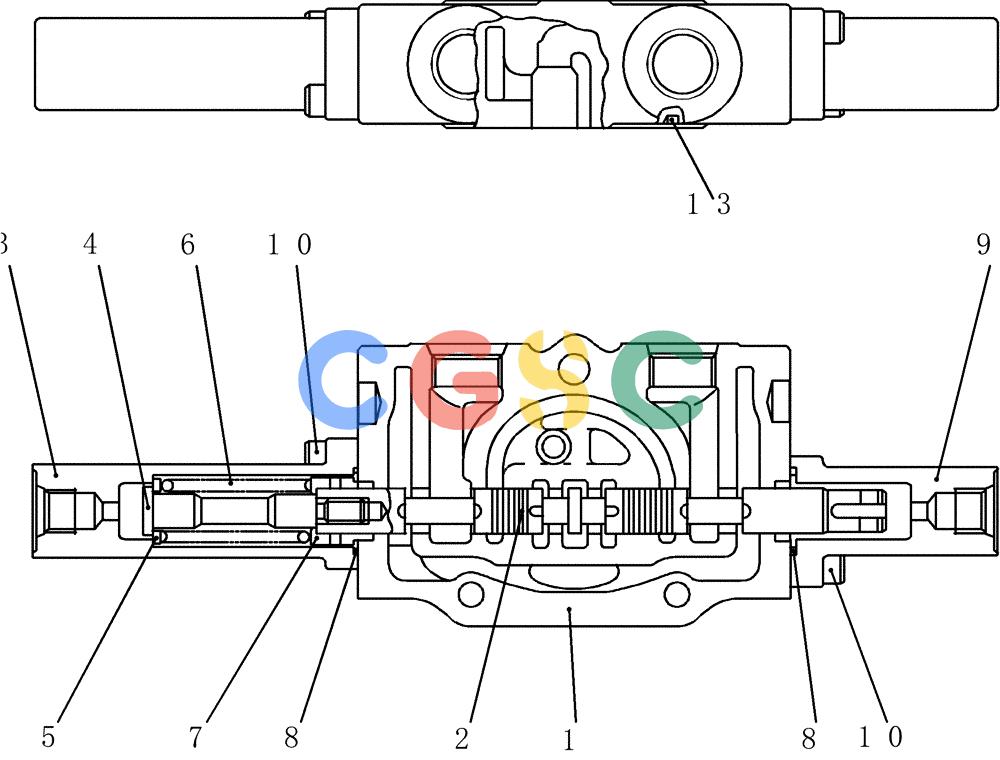

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC121-01-1) - SECTION ASSY, SPOOL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
707 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00028F1 | [1] | Spool | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSpool |
| 3. | 2436R919S12 | [1] | CAP | KOB |
| 4. | 2436R919S9 | [1] | END | KOBSpool |
| 5. | 2436R919S10 | [1] | SEAT | KOBSpring |
| 6. | 2436R919S11 | [1] | SPRING | KOB |
| 7. | 2436R919S8 | [1] | SEAT | KOBSpring |
| 8. | 2436R668S3 | [2] | O-RING | KOB |
| 9. | 2436R919S7 | [1] | CAP | KOB |
| 10. | ZS23C06018 | [4] | SCREW,Hex Socket Head, M6 x 18mm | KOBCap |
| 13. | 2436R328S2 | [1] | O-RING | KOB Superseded by part number: 45Z91D84 |
