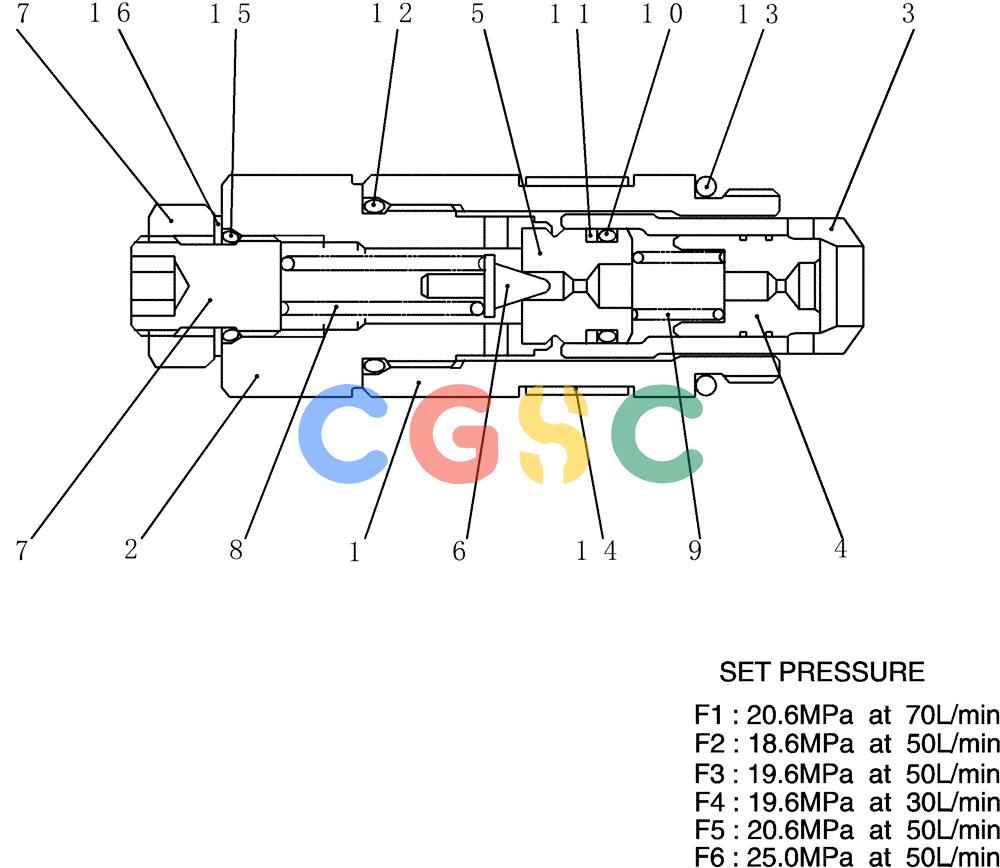

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC181-01-1) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
146 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R1119F1 | [1] | VALVE | KOBAssy, Relief Superseded by part number: 2436R1119 |
| . . | 2436R1119F2 | [1] | VALVE | KOBAssy, Relief |
| . . | 2436R1119F3 | [1] | VALVE | KOBAssy, Relief |
| . . | 2436R1119F4 | [1] | VALVE | KOBAssy, Relief |
| . . | 2436R1119F5 | [1] | VALVE | KOBAssy, Relief |
| . . | 2436R1119F6 | [1] | VALVE | KOBAssy, Relief |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCap |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSleeve |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONPoppet |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONSeat, Pilot |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPoppet, Pilot |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONAdjuster |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONSpring, Pilot |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSpring |
| 10. | 2436R1119S10 | [1] | O-RING | KOB |
| 11. | 2436R1119S11 | [1] | BACK-UP RING | KOB |
| 12. | 2436U388S5 | [1] | O-RING | KOB |
| 13. | 2436U388S25 | [1] | O-RING | KOB |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONName Plate |
| 15. | ZD12P01000 | [1] | O-RING | KOB |
| 16. | NSS | [1] | NOT SOLD SEPARAT | CONWasher |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONNut |
| . . | 2436R1119R100 | [1] | REPAIR KIT | KOBConsists Of Ref. 13x1, 15x1 |
| . . | 2436R1119R200 | [1] | SEAL KIT | KOBRepair Consists Of Ref. 10x1, 11x1 |
