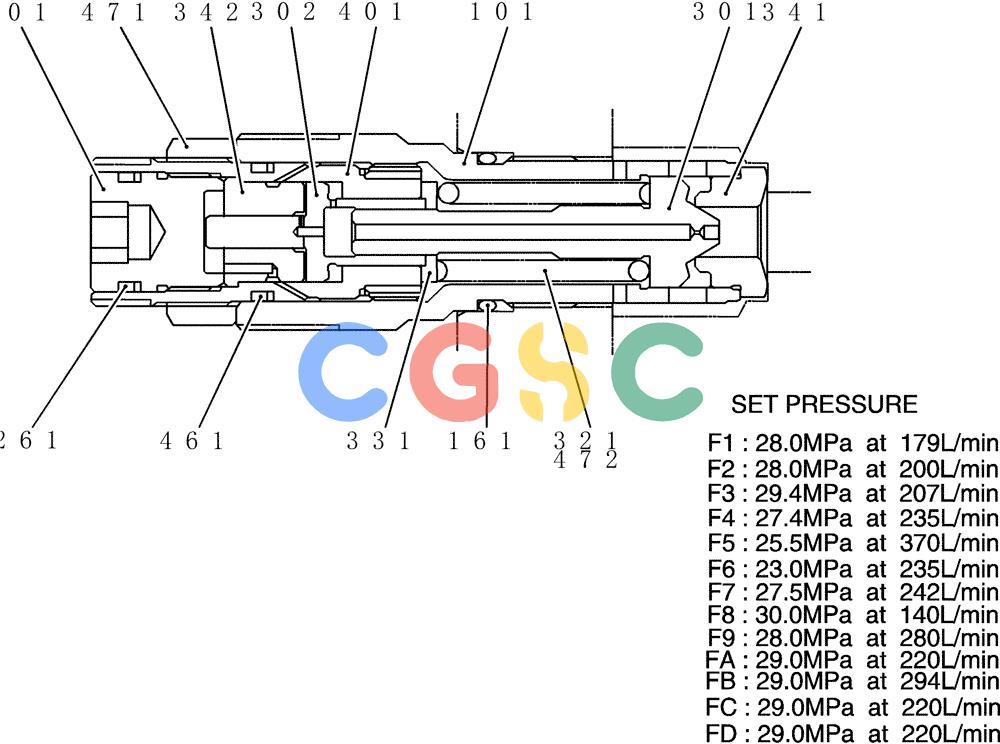

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC325-01-1) - VALVE ASSY, RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
717 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00014F1 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014F2 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014F3 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014F4 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014F5 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014F6 | [1] | VALVE | KOBRelief |
| . . | YN22V00014F7 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014F8 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014F9 | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014FA | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014FB | [1] | VALVE | KOBAssy, Relief |
| . . | YN22V00014FC | [1] | HYDRAULIC VALVE | SMAssy, Relief |
| . . | YN22V00014FD | [1] | VALVE PRESSURE RELIE | KOBRelief |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 161. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 261. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONPiston |
| 302. | NSS | [1] | NOT SOLD SEPARAT | CONPiston |
| 321. | NSS | [1] | NOT SOLD SEPARAT | CONSpring (For F1-F4, F7-FD Only) |
| 331. | NSS | [1] | NOT SOLD SEPARAT | CONSeat |
| 341. | NSS | [1] | NOT SOLD SEPARAT | CONSeat |
| 342. | NSS | [1] | NOT SOLD SEPARAT | CONSleeve |
| 401. | NSS | [1] | NOT SOLD SEPARAT | CONPlug |
| 461. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring |
| 471. | NSS | [1] | NOT SOLD SEPARAT | CONNut |
| 472. | NSS | [1] | NOT SOLD SEPARAT | CONSpring (For F5, F6 Only) |
