神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC651-01-1) - CYLINDER ASSY, ARM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
143 次

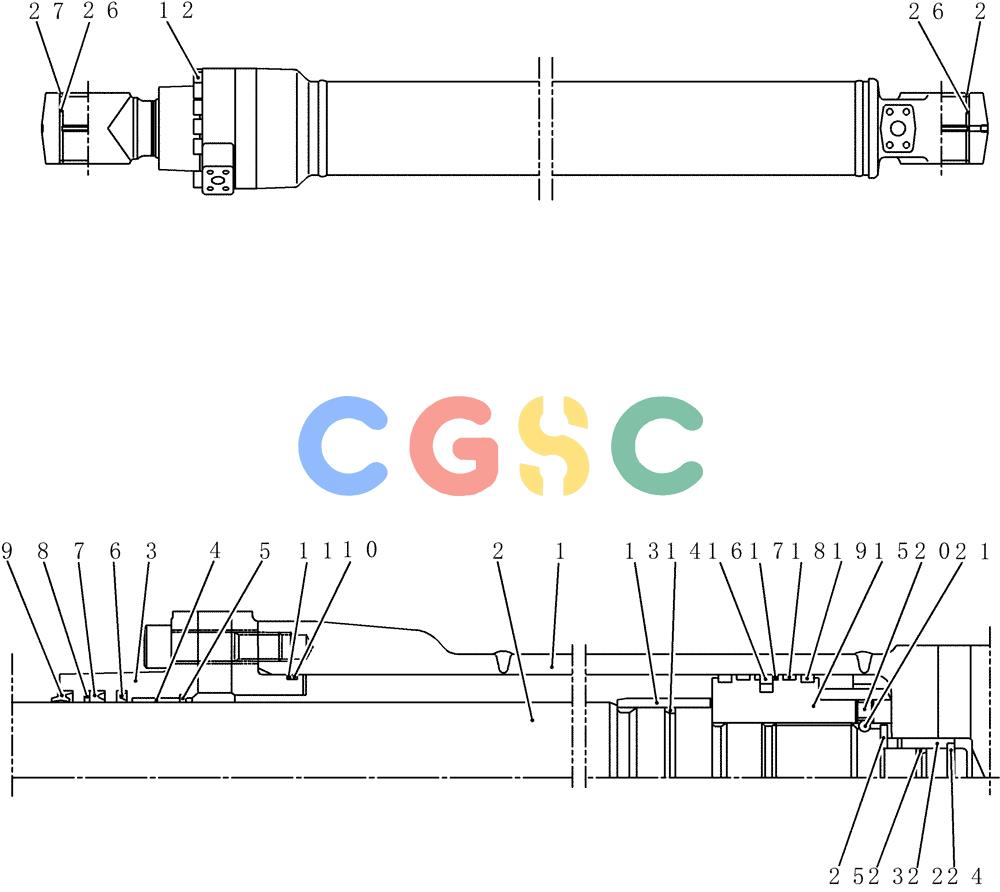

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00172F1 | [1] | ARM | KOBArm |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston |
| 3. | YN01V00118S001 | [1] | CYLINDER HEAD | KOBCylinder Head |
| 4. | 2438U1018S4 | [1] | BUSHING | KOB |
| 5. | 2438U776S5 | [1] | SNAP RING | KOBRetaining |
| 6. | YN01V00175S006 | [1] | RING | KOBBuffer |
| 7. | YN01V00175S007 | [1] | RING | KOBU |
| 8. | YN01V00105S008 | [1] | BACK-UP RING | KOB |
| 9. | YN01V00105S009 | [1] | RING | KOBWiper |
| 10. | ZD12G13000 | [1] | O-RING,129.40mm ID x 135.60mm OD x 3.10mm | KOB |
| 11. | LQ01V00001S011 | [1] | RING | KOBBack Up |
| 12. | ZS23C20080 | [12] | SCREW,Hex Socket Head, M20 x 80mm | KOBCap |
| 13. | YN01V00175S013 | [1] | BEARING | KOBCushion |
| 14. | YN01V00172S014 | [1] | SEAL | KOBSeal, Cushion |
| 15. | YN01V00175S015 | [1] | PISTON | KOB |
| 16. | LQ01V00001S016 | [1] | RING | KOBSeal |
| 17. | LQ01V00001S017 | [2] | BACK-UP RING | KOB |
| 18. | YN01V00175S018 | [2] | RING | KOBSlide |
| 19. | LQ01V00001S019 | [2] | RING | KOBSlide |
| 20. | 2438U953S21 | [1] | SET SCREW | KOBSet |
| 21. | 2436R624S6 | [1] | BALL | KOB |
| 22. | YN01V00175S022 | [1] | BEARING | KOBCushion |
| 23. | LQ01V00007S025 | [1] | SEAL | KOBCushion |
| 24. | 2438U1104S25 | [2] | STOP | KOBStopper |
| 25. | 2438U1104S26 | [1] | RING | KOBRetaining |
| 26. | YN01V01108P1 | [4] | BUSHING,85mm ID x 95mm OD x 54.5mm L | SMBushing |
| 27. | 2438U1102S26 | [4] | SEAL | KOBSeal, Dust |
| . . | YN01V00175R100 | [1] | SEAL | SMRepair Rod Side |
| . . | YN01V00172R200 | [1] | REPAIR KIT | KOBRepair Kit Piston Side |
| . . | YN01V00172R300 | [1] | REPAIR KIT | KOBRepair Kit All (Rod + Piston) |
| . . | YN01V00172R400 | [1] | REPAIR KIT | KOBRepair Kit Consists Of Ref. 1x1, 26x2, 27x2 |
| . . | YN01V00175R500 | [1] | REPAIR KIT | SMRepair Consists Of Ref. 2x1, 26x2, 27x2 |
