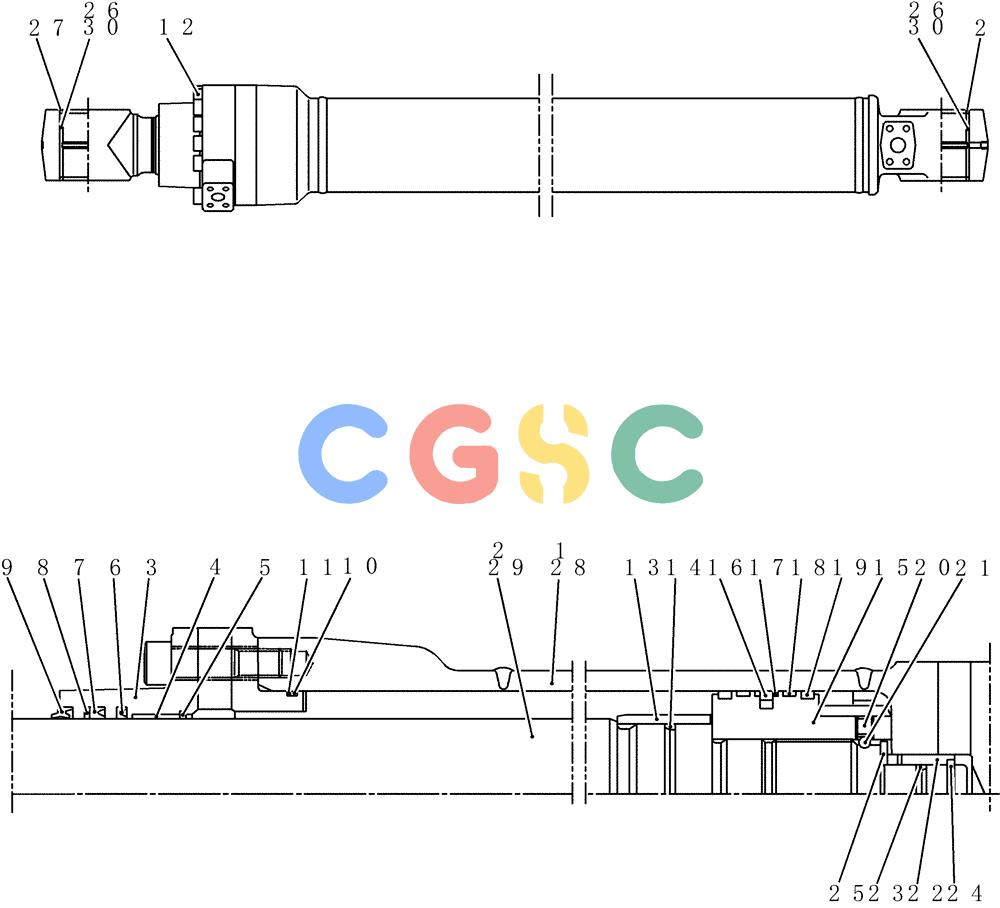

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC650-01-1) - CYLINDER ASSY, ARM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
984 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00175F1 | [1] | CYLINDER,Double Acting, 95mm Rod, 1558mm Stroke | KOBAssy, Arm Superseded by part number: YN01V00175F3 |
| . . | YN01V00175F1R | [1] | REMAN-HYD CYLINDER | KOB200-8, SK210D-8, Both S/N YN11-45001 -, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001 - |
| . . | YN01V00175F1C | [1] | CORE-HYD CYLINDER | KOBReturn Number |
| . . | YN01V00175F2 | [1] | CYLINDER | KOBAssy, Arm |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder (For F1 ONLY) |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston (For F1 ONLY) |
| . . | YN01V00105S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1018S4 | [1] | BUSHING | KOB |
| 5. | 2438U776S5 | [1] | SNAP RING | KOBRetaining |
| 6. | YN01V00175S006 | [1] | RING | KOBBuffer |
| 7. | YN01V00175S007 | [1] | RING | KOBU |
| 8. | YN01V00105S008 | [1] | BACK-UP RING | KOB |
| 9. | 2438U776S9 | [1] | RING | KOBWiper |
| 10. | ZD12G13000 | [1] | O-RING,129.40mm ID x 135.60mm OD x 3.10mm | KOB |
| 11. | LQ01V00001S011 | [1] | RING | KOBBack Up |
| 12. | ZS23C18080 | [12] | CAPSCREW,Hex Socket Head, M18 x 80mm | KOBSCREW Cap |
| 13. | YN01V00175S013 | [1] | BEARING | KOBCushion |
| 14. | YN01V00175S014 | [1] | SEAL | KOBCushion |
| 15. | YN01V00175S015 | [1] | PISTON | KOB |
| 16. | LQ01V00001S016 | [1] | RING | KOBSeal |
| 17. | LQ01V00001S017 | [2] | BACK-UP RING | KOB |
| 18. | YN01V00175S018 | [2] | RING | KOBSlide |
| 19. | LQ01V00001S019 | [2] | RING | KOBSlide |
| 20. | 2438U953S21 | [1] | SET SCREW | KOBSet |
| 21. | 2436R624S6 | [1] | BALL | KOB |
| 22. | YN01V00175S022 | [1] | BEARING | KOBCushion |
| 23. | LQ01V00007S025 | [1] | SEAL | KOBCushion |
| 24. | 2438U1104S25 | [2] | STOP | KOBStopper |
| 25. | 2438U1104S26 | [1] | RING | KOBRetaining |
| 26. | YN01V01108P1 | [4] | BUSHING,85mm ID x 95mm OD x 54.5mm L | SMBushing (For F1 ONLY) |
| 27. | 2438U1102S26 | [4] | SEAL | KOBSeal, Dust |
| 28. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder (For F2 ONLY) |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston (For F2 ONLY) |
| 30. | 2438U1104S28 | [2] | BUSHING | KOB(For F2 ONLY) |
| . . | YN01V00175R100 | [1] | SEAL | SMRepair Rod Side |
| . . | YN01V00175R200 | [1] | SEAL | SMRepair Piston Side |
| . . | YN01V00175R300 | [1] | SEAL | SMRepair All (Rod + Piston) |
| . . | YN01V00175R400 | [1] | SEAL | SMRepair Consists Of Ref. 1x1, 26x2, 27x2 (For F1 ONLY) |
