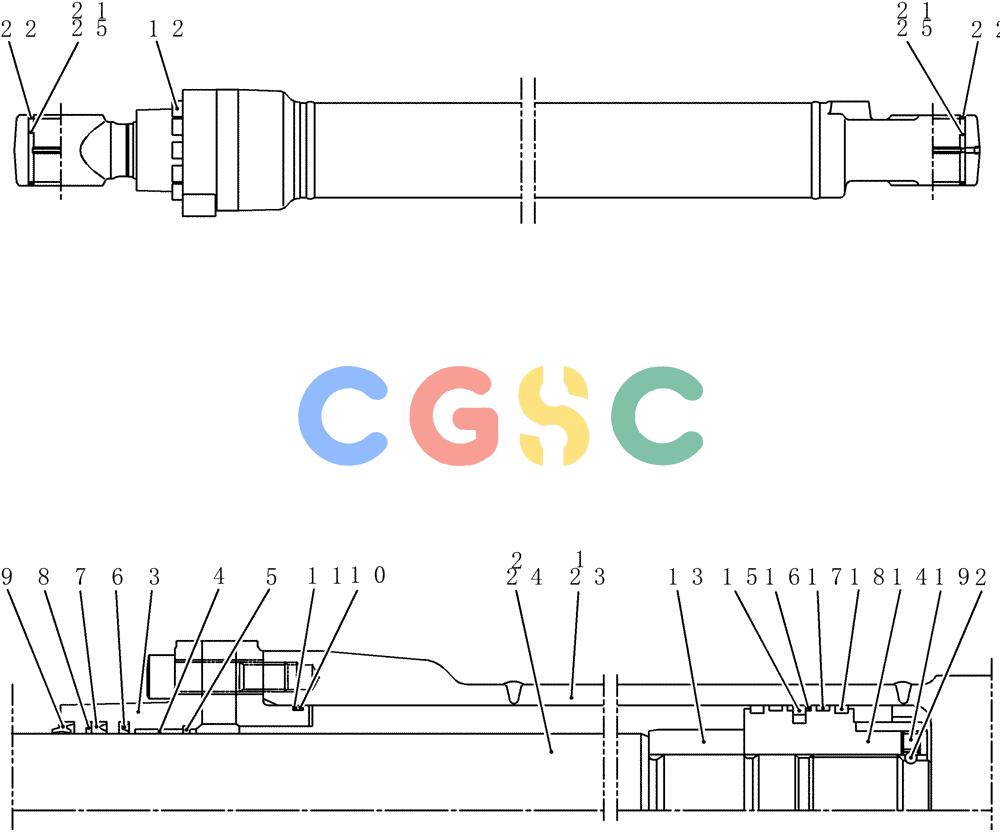

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (HC700-01-1) - CYLINDER ASSY, BUCKET Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
931 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN01V00153F1 | [1] | HYDRAULIC CYLINDER | KOBAssy, Bucket |
| . . | YN01V00153F1R | [1] | REMAN-HYD CYLINDER | KOBSK210LC-8, SK210DLC-8, BOTH S/N YQ11-06001 -, 200-8, SK210D-8, BOTH S/N YN11-45001 -, ALL EXCAVATOR |
| . . | YN01V00153F1C | [1] | CORE-HYD CYLINDER | KOBReturn Number |
| . . | YN01V00153F2 | [1] | CYLINDER | KOBAssy, Bucket |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder (For F1 ONLY) |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston (For F1 ONLY) |
| 3. | YN01V00112S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1109S14 | [1] | BUSHING | KOB |
| 5. | 2438U1105S5 | [1] | SNAP RING | KOBRetaining |
| 6. | YN01V00153S006 | [1] | RING | KOBBuffer |
| 7. | YN01V00153S007 | [1] | RING | KOBU |
| 8. | 2438U1105S8 | [1] | RING | KOBBack Up |
| 9. | 2438U1105S35 | [1] | RING | KOBWiper |
| 10. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOB |
| 11. | 2438U1105S12 | [1] | BACK-UP RING | KOB |
| 12. | ZS23C16075 | [12] | SCREW,Hex Socket Head, M16 x 75mm | KOBCap |
| 13. | YN01V00153S013 | [1] | BEARING | KOBCushion |
| 14. | YN01V00153S014 | [1] | PISTON | KOB |
| 15. | 2438U1105S16 | [1] | RING ASSY. | KOBSeal |
| 16. | LQ01V00004S017 | [2] | BACK-UP RING | KOB |
| 17. | YN01V00151S018 | [2] | RING | KOBSlide Superseded by part number: 2438U1105S17 |
| 18. | 2438U1105S18 | [2] | RING | KOBSlide |
| 19. | 2438U999S21 | [1] | SET SCREW | KOBSet |
| 20. | 2436U330S16 | [1] | BALL | KOB |
| 21. | YN12B02221P1 | [4] | BUSHING,80mm ID x 95mm OD x 47mm L | KOB(For F1 ONLY) |
| 22. | YN01V00153S022 | [4] | SEAL | KOBDust |
| 23. | NSS | [1] | NOT SOLD SEPARAT | CONTube, Cylinder (For F2 ONLY) |
| 24. | NSS | [1] | NOT SOLD SEPARAT | CONRod, Piston (For F2 ONLY) |
| 25. | 2438U959S22 | [2] | BUSHING | KOB(For F1 ONLY) |
| . . | YN01V00153R100 | [1] | REPAIR KIT | KOBRod Side |
| . . | YN01V00151R200 | [1] | REPAIR KIT | KOBPiston Side Superseded by part number: YN01V00151R600 |
| . . | YN01V00153R300 | [1] | REPAIR KIT | KOBAll (Rod + Piston) |
| . . | YN01V00153R400 | [1] | REPAIR KIT | KOBConsists Of Ref. 1x1, 21x2, 22x2 (For F1 ONLY) |
| . . | YN01V00153R500 | [1] | REPAIR KIT | KOBConsists Of Ref. 2x1, 21x1, 22x2 (For F1 ONLY) |
| . . | YN01V00153R600 | [1] | REPAIR KIT | KOBConsists Of Ref. 22x2, 23x1, 25x1 (For F2 ONLY) |
| . . | YN01V00153R700 | [1] | REPAIR KIT | KOBConsists Of Ref. 22x2, 24x1, 25x1 (For F2 ONLY) |
